Airtac EAV Standard Pneumatic Control Valve EAV430C
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

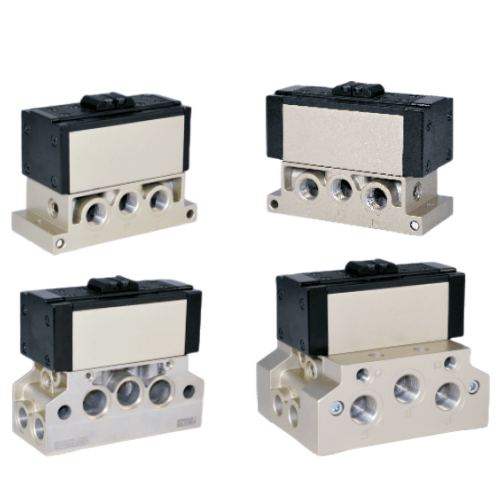

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV430C Standard Pneumatic Control Valve Specifications
- Model: EAV430C
- Type: 5/2-way pilot-operated (double solenoid)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–1.0 MPa
- Voltage options: DC12V, DC24V, AC110V, AC220V (coil-specific variants)
- Flow rate: 850 L/min (ANR)
- Response time: ≤30ms (at 0.5MPa)
- Weight: 520g ±5% (with solenoid)
- Dimensions: 78mm(L) × 42mm(W) × 104mm(H)
- Seal material: HNBR rubber (high nitrile for oil resistance)
- Temperature range: -10℃ to 80℃ (with anti-freeze measures below 0℃)
- Power consumption: ≤2.5W (DC models), ≤4.5VA (AC models)
- Protection rating: IP67 (dustproof/water immersion resistant)
- Endurance: ≥10 million cycles (JIS B8377 standard)
High-flow pneumatic valve with dual solenoid activation, featuring a reinforced aluminum alloy body and corrosion-resistant nickel plating. Designed for heavy-duty applications requiring rapid cycling and precise directional control. Includes manual override button for system debugging. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Plastic injection molding machine clamp control
- Automated palletizing systems with multi-cylinder coordination
- Stamping press safety interlock circuits
- Bottle blowing machine air distribution
- Robotic welding fixture sequencing
Installation guidelines:
Mount horizontally with ports facing downward to prevent debris accumulation.
Use M5 mounting screws with 50mm spacing. Maintain 15mm clearance on all sides
for heat dissipation. Lubricate with ISO VG32 pneumatic oil if used in high-cycle
(>5Hz) operations.
| Property | Property Value |
|---|---|
| sku | EAV430C |
| Pneumatic Control Type | Three-position double air-piloted center closed type |
