Airtac EAV Standard Pneumatic Control Valve EAV430E
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;
5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;

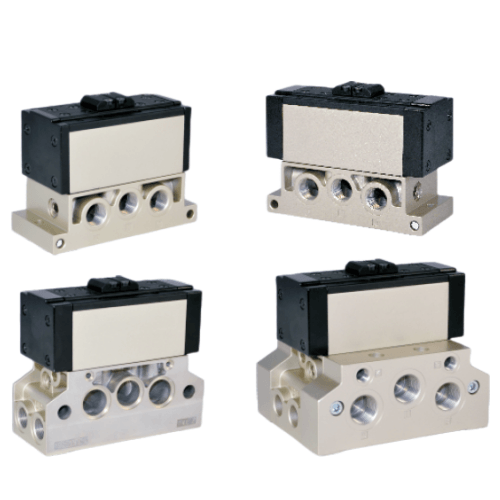

7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV430E Standard Pneumatic Valve Technical Details
- Model: EAV430E
- Type: 5/2-way single solenoid control (spring return)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.2–0.8 MPa
- Voltage options: DC12V, DC24V, AC110V, AC220V (±10% tolerance)
- Weight: 400g ±5% (without connector)
- Dimensions: 58mm(L) × 40mm(W) × 84mm(H)
- Seal material: NBR (Nitrile) standard, optional Viton for high-temp
- Temperature range: -5℃ to 80℃ (extended to 120℃ with Viton seals)
- Power consumption: 2.2W (DC), 4.5VA (AC)
- Response time: ≤50ms (at 0.5MPa)
- Port thread depth: 12mm (minimum engagement)
- Protection rating: IP65 (dust-tight & water jet resistant)
High-flow directional control valve with manual override capability, featuring brass body construction with hard anodized aluminum solenoid housing. Designed for bi-directional cylinder control in medium-duty pneumatic systems. Requires 40μm filtered lubricated air (ISO 8573-1 class 4) with recommended 1-2 drops/m³ oil mist.
- Clamping fixture control in automotive welding lines
- Actuator reversal in packaging machinery
- Pneumatic cylinder sequencing in conveyor systems
- Plastic injection molding machine ejectors
- Textile machinery thread tension control
Installation guidelines:
Mount with 10mm minimum clearance below for exhaust ports.
Use copper-free anti-seize compound on threads.
For vertical mounting, orient solenoid coil upward to prevent condensate accumulation.
| Property | Property Value |
|---|---|
| sku | EAV430E |
| Pneumatic Control Type | Three-position double air-piloted center exhaust type |
