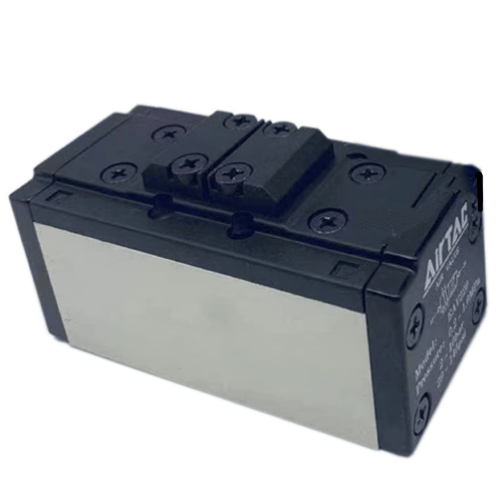

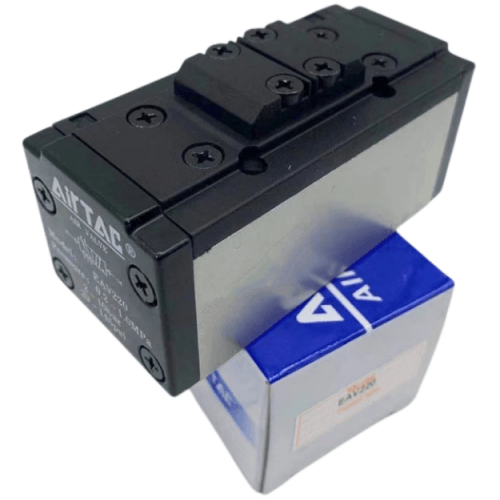

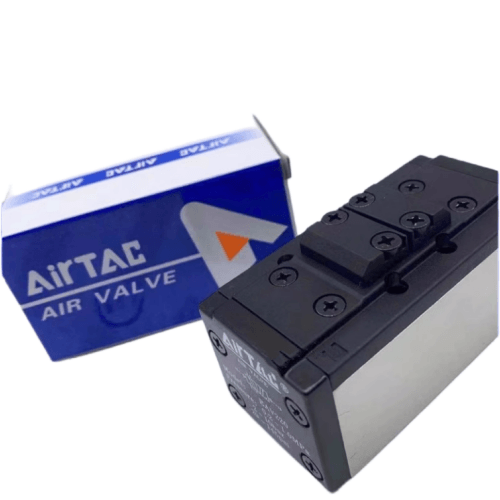

Airtac EAV Standard Pneumatic Control Valve EAV430P
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

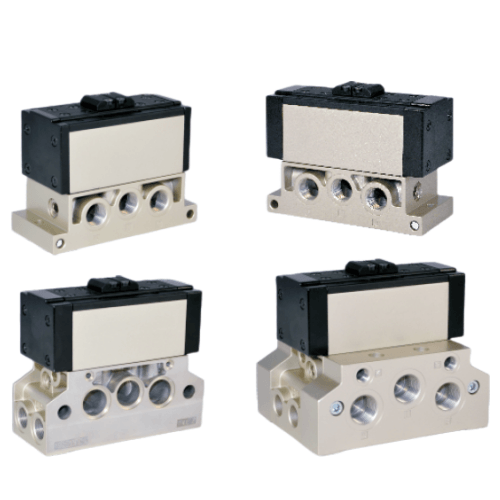

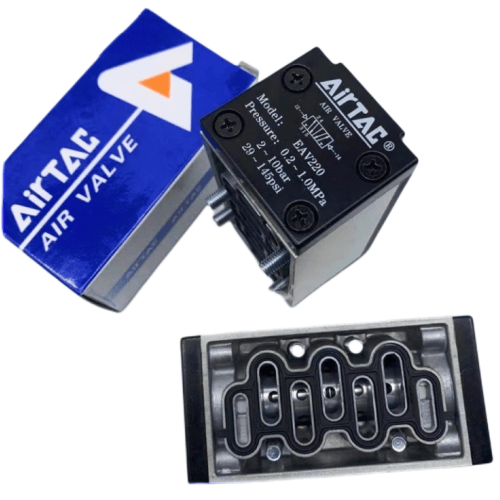

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV430P Standard Pneumatic Valve Technical Details
- Model: EAV430P
- Type: 5/2-way pneumatic pilot operated (double solenoid)
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Response time: ≤25ms (at 0.5MPa)
- Valve body material: Die-cast aluminum alloy (hard anodized)
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 215g ±5g (without accessories)
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Port thread depth: 10mm (minimum engagement)
- Mounting options: Panel/DIN rail (adapter kit required)
- Certification: RoHS compliant, ISO 6432 compatible
High-flow directional control valve optimized for industrial automation sequences. Features dual manual override buttons with lock-out safety and gold-plated connectors for corrosion resistance. The optimized spool design achieves 10 million cycles MTBF under standard conditions. Requires 5μm filtered lubricated air (ISO 8573-1 class 3.4.2).
- Pneumatic cylinder sequencing in assembly lines
- Clamping/unclamping mechanisms in CNC machinery
- Material handling systems with rapid cycling
- Plastic injection molding machine actuators
- Automotive brake testing equipment
Installation guidelines:
Maintain horizontal mounting position for optimal drainage.
Use copper-free anti-seize compound on threaded ports.
Allow 15mm clearance below valve for condensate discharge.
Perform monthly manual cycling during maintenance.
| Property | Property Value |
|---|---|
| sku | EAV430P |
| Pneumatic Control Type | Three-position double pilot operated center pressure type |
