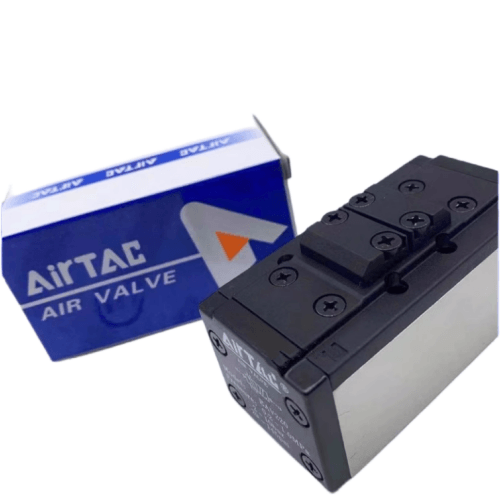

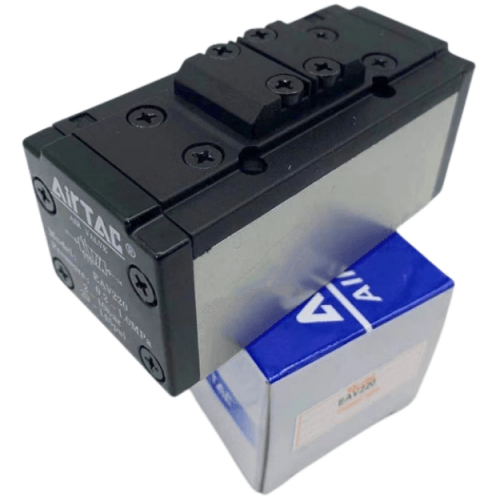

Airtac EAV Standard Pneumatic Control Valve EAV610
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

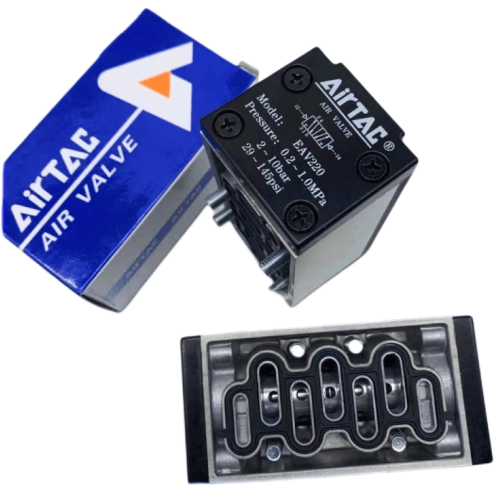

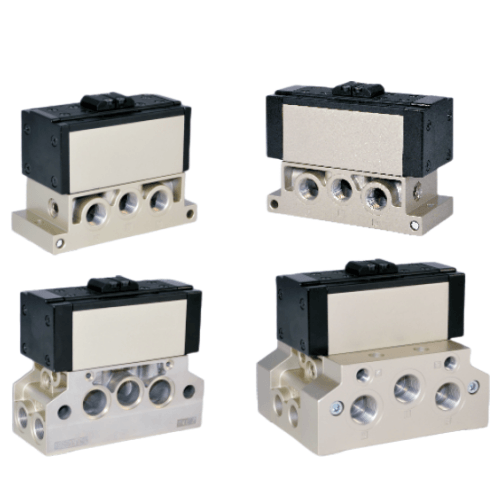

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV610 Standard Pneumatic Valve Technical Details
- Model: EAV610
- Valve type: 5/2-way direct acting (double solenoid optional)
- Port configuration: PT1/4" (NPT1/4" or PT3/8" available)
- Operating pressure range: 0.15-1.0 MPa (21.7-145 PSI)
- Minimum operating pressure: 0.1 MPa (14.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: 1.6W (DC), 3.5VA (AC)
- Response time: ≤15ms (open/close)
- Flow capacity: 750 L/min (ANR) at 0.5 MPa
- Seal material: Heat-resistant NBR (Nitrile), optional FKM (Fluorocarbon)
- Temperature tolerance: -20℃ to 80℃ (with NBR seals)
- Protection class: IP67 (dust/water resistant)
- Weight: 320g ±5% (excluding accessories)
- Dimensions: 58mm(L) × 42mm(W) × 76mm(H)
- Port thread depth: 10mm (PT1/4")
- Expected lifespan: 50 million cycles (under rated conditions)

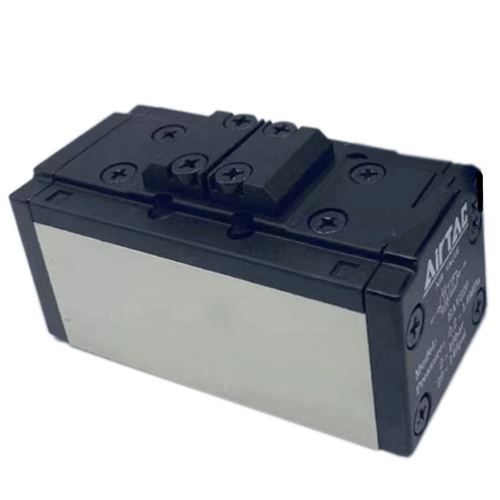

The EAV610 features a rugged aluminum alloy body with hard anodized coating for industrial durability. Its low-hysteresis design ensures precise directional control in high-cycle applications. The valve incorporates a manual override button for system debugging and includes surge suppression circuits for electrical protection. Requires ISO 8573-1 class 3 lubricated or non-lubricated air (40μm filtration recommended).
- Automated production line clamping systems
- Plastic injection molding machine ejectors
- CNC tool changers with rapid cycling requirements
- Food processing pneumatic actuators (FKM seal version)
- Battery manufacturing pressurization controls
Installation protocol:
Mount using M5 mounting screws with vibration washers. Maintain ≥15mm clearance
from adjacent components for heat dissipation. For horizontal mounting,
orient exhaust ports downward to prevent debris accumulation. Perform monthly
air moisture inspection in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | EAV610 |
| Pneumatic Control Type | Double position single pneumatic pilot |
