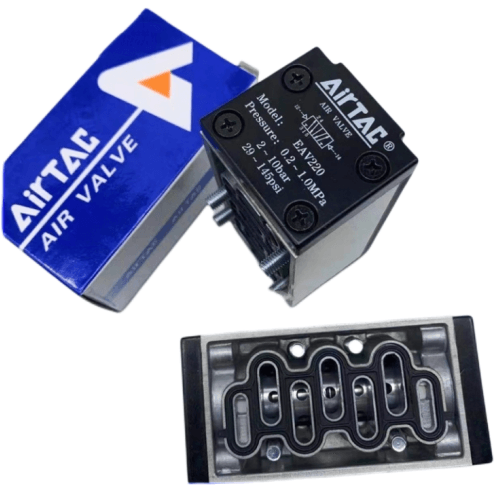

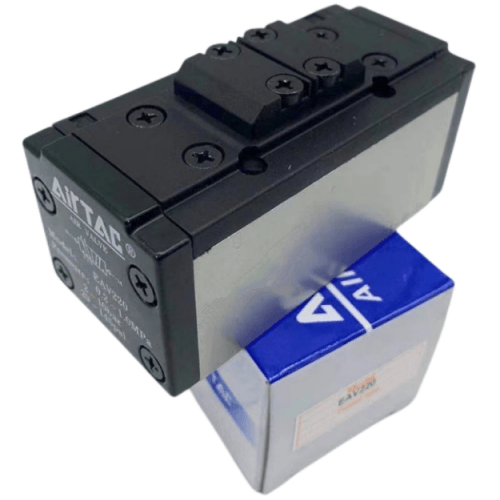

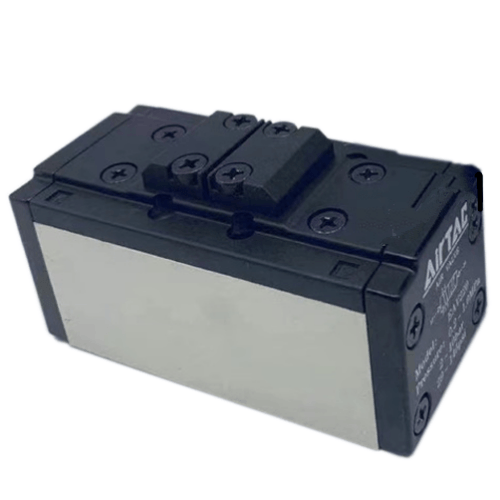

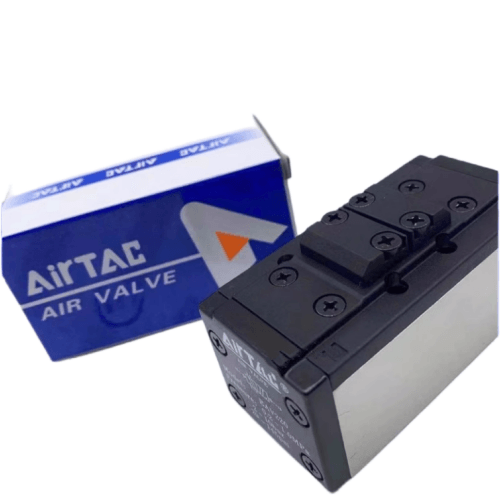

Airtac EAV Standard Pneumatic Control Valve EAV630C
$246.56
Regular price
$254.06
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EAV630C
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact and streamlined design with space-efficient construction;
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

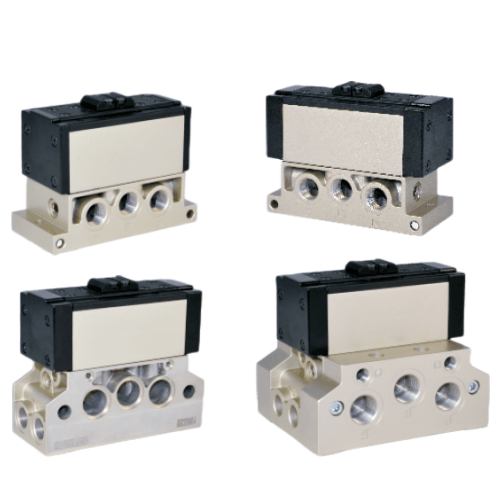

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
Operational guidance:
Requires 5μm filtered compressed air with lubricator (ISO 8573-1:2010 Class 4).
For continuous operation, maintain ambient temperature below 60℃.
Manual override should be engaged monthly to prevent seal adhesion.
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;
5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV630C Standard Pneumatic Valve Technical Details
- Model: EAV630C (ISO designation compatible)
- Type: 5/2-way pneumatic pilot-operated valve
- Port size: PT3/8 (G3/8 optional)
- Operating pressure range: 0.1–0.9 MPa
- Control method: Air pilot (requires 0.3–0.8 MPa pilot pressure)
- Weight: 1.2 kg ±5% (including accessories)
- Dimensions: 98mm(L) × 50mm(W) × 90mm(H)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature tolerance: -10℃ to 70℃ (non-freezing)
- Flow capacity: 1200 L/min (Cv=2.5 at 0.5 MPa)
- Response time: ≤0.15 sec (at 0.5 MPa)
- Port thread depth: 12mm (minimum engagement)
- Housing material: Reinforced PA66 + glass fiber
- Protection class: IP40 (dust protected)
High-flow directional control valve with manual override, designed for heavy-duty pneumatic circuits requiring rapid cycling. Features dual-pressure operation capability and wear-resistant spool design. Compatible with ISO 5599-1 mounting patterns for modular systems.
Industrial Applications:
- Press machine cylinder control (double-acting)
- Material handling clamp sequencing
- Automotive tire assembly automation
- Plastic injection molding ejectors
- Food packaging line actuators
Operational guidance:
Requires 5μm filtered compressed air with lubricator (ISO 8573-1:2010 Class 4).
For continuous operation, maintain ambient temperature below 60℃.
Manual override should be engaged monthly to prevent seal adhesion.
| Property | Property Value |
|---|---|
| sku | EAV630C |
| Pneumatic Control Type | Three-position double air-piloted center closed type |
