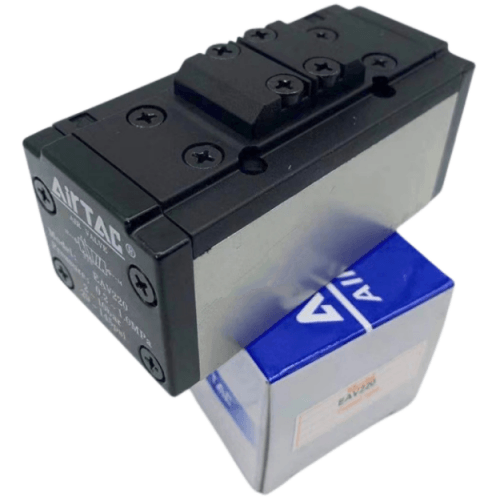

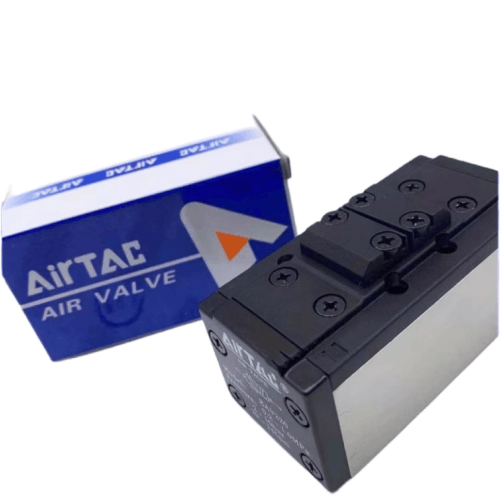

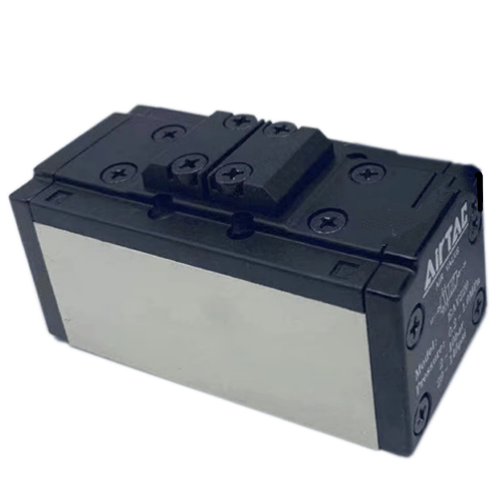

Airtac EAV Standard Pneumatic Control Valve EAV630P
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

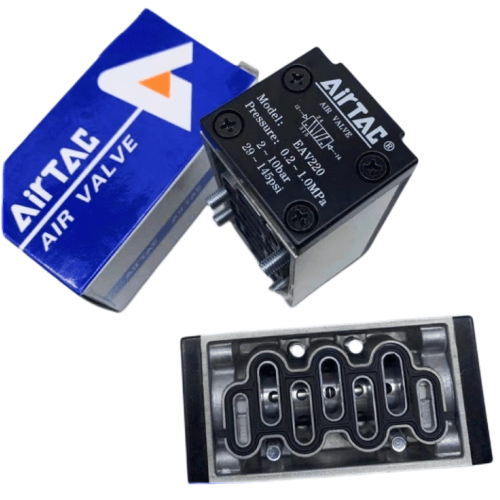

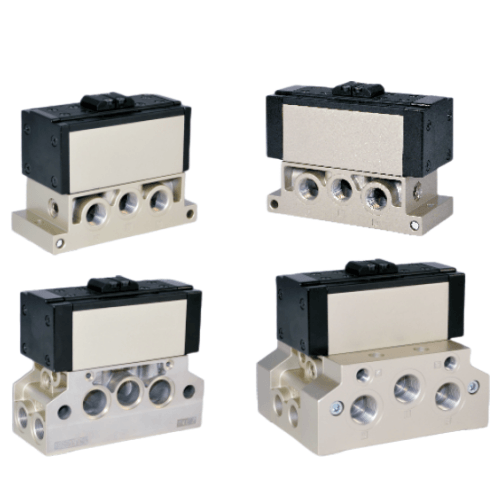

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV630P Standard Pneumatic Valve Specifications
- Model: EAV630P
- Type: 5/3-way closed center (pilot-operated)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Control method: Double solenoid or single solenoid with spring return
- Voltage options: DC12V, DC24V, AC110V, AC220V (customizable)
- Weight: 650±10g
- Dimensions: 98mm(L) × 45mm(W) × 60mm(H)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -20℃ to 80℃ (with 5℃ derating above 50℃)
- Flow rate: 750 L/min (ANR)
- Response time: ≤50ms
- Protection rating: IP65 (coil)/IP40 (valve body)
- Port thread depth: 12mm (minimum engagement)
High-flow directional control valve with manual override, featuring brass alloy body for corrosion resistance and anti-vibration design. Optimized spleeve structure ensures ≤0.1L/min internal leakage. Requires 5μm filtered lubricated air (ISO 8573-1 class 4). Compatible with ISO 15407-1 mounting interfaces.
- Press machine cylinder control systems
- Automotive welding fixture sequencing
- Plastic injection molding clamp units
- Packaging line diverters & actuators
- Food processing pneumatic circuits (oil-free version available)
Installation guidelines:
Mount with M5 screws (torque ≤1.2N·m). Maintain 20mm clearance below valve for exhaust flow.
Use locknuts for vertical mounting. Lubricate with ISO VG32 pneumatic oil if intermittent operation occurs.
| Property | Property Value |
|---|---|
| sku | EAV630P |
| Pneumatic Control Type | Three-position double pilot operated center pressure type |
