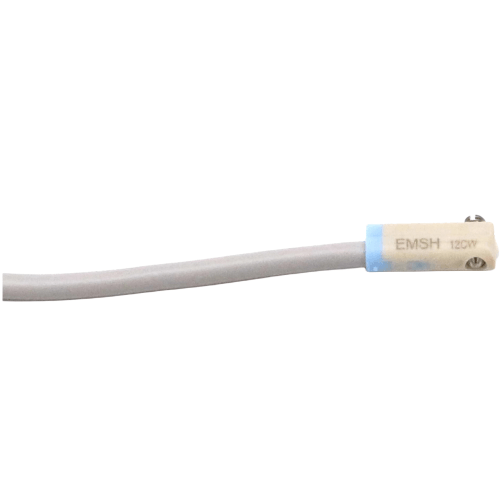

Airtac EMSH Electronic Sensor EMSH-030
The AirTAC Airtac EMSH Electronic Sensor EMSH-030 is a genuine EMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a 2-wire output on 10-28 V DC with a 3 m flying lead. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state), miniature build
- Output2-wire
- Supply voltage10-28 V DC
- ProtectionIP64
- Profile (groove fit)H
- Lead / connector3 m flying lead
- VersionStandard
- RequiresMagnet-equipped cylinder
About the Airtac EMSH Electronic Sensor EMSH-030
The EMSH-030 is a mini electronic switch in AirTAC's EMS series, built to detect the piston magnet of a magnet-equipped AirTAC cylinder. It is a 2-wire solid-state device fed from 10-28 V DC, with the general type rated IP64. The H profile fits the cylinder's sensor groove, and its 3 m flying lead lets the switch sit a full stroke-length away from the junction box without splicing.
Because the contact is solid-state there is nothing to bounce, so rapid on-off signalling stays crisp without contact chatter. As with every EMS the connection is 2-wire only, so plan the series wiring and make sure the H profile seats properly in your cylinder's groove.
Airtac EMSH Electronic Sensor EMSH-030 Technical Specifications
| Model | Airtac EMSH Electronic Sensor EMSH-030 |
|---|---|
| Family | EMS — Mini electronic cylinder switch |
| Technology | Electronic (solid-state), miniature build |
| Output | 2-wire |
| Outputs in this family | 2-wire only |
| Lead / connector | 3 m flying lead |
| Supply voltage | 10-28 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | H (cylinder-groove fit) |
| Profiles in this family | G, H |
| Detects | Piston magnet ring inside the cylinder |
Every EMS is 2-wire on a 10-28 V DC supply; there is no NPN / PNP version. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac EMSH Electronic Sensor EMSH-030
| EMS | Mini electronic cylinder switch — electronic (solid-state), miniature build. |
|---|---|
| H | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers G, H. It is a fit code, not a performance grade. |
| 030 | 3 m flying lead. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | EMSH · 2-wire · 10-28 V DC |
|---|---|
| Consider DMS | the full electronic range, including NPN / PNP 3-wire outputs |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac EMSH Electronic Sensor EMSH-030 Is Used
Multi-tier storage carousels
Sense the raised and lowered positions of compact lift cylinders on tiered storage carousels.
Clamping on an assembly bench
Interlock the torque driver until each hold-down cylinder on the bench reports fully clamped.
Blow-moulder core rods
Signal core-rod cylinder retraction so the parison station can index safely.
Is the Airtac EMSH Electronic Sensor EMSH-030 the Right Switch?
If the machine is DC powered and you value a no-wear solid-state contact, EMS is the right family; go CMS instead when the circuit runs on AC or you want the wide 5-240 V range. The 3 m lead suits cylinders mounted mid-machine, away from the manifold but short of needing a connector - for frequent swaps, an M8 or M12 connector version saves re-termination time. All of this assumes the cylinder itself carries the built-in magnet.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (2-wire)
- ✓ Supply rail is 10-28 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 10-28 V DC.
- check Wire 2-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac EMSH Electronic Sensor EMSH-030 FAQ
Electronic solid-state type, 2-wire output, 10-28 V DC supply, IP64 general-type protection, and a 3 m flying lead. It only works on an AirTAC cylinder that carries the built-in piston magnet.
A CMS reed switch has a mechanical contact and tolerates 5-240 V AC or DC, which suits mixed or legacy circuits. This EMS is solid-state and DC-only (10-28 V), with no contact bounce and a smaller body for narrow grooves. Its 2-wire connection is still wired in series, so check that your load suits that arrangement.
