Airtac F-HGS Sensor Mount F-HGS8X10H
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS

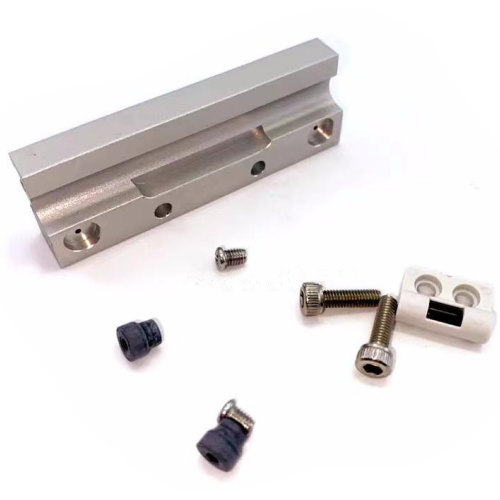

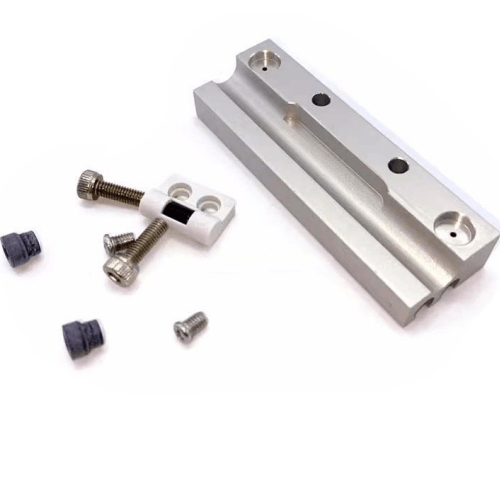

AirTAC F-HGS8X10H Sensor Mounting Bracket Specifications
- Model: F-HGS8X10H
- Material: Aluminum alloy 6063-T5
- Mounting type: Horizontal/Upright dual-purpose design
- Compatible sensor size: Φ8mm cylindrical sensors
- Mounting hole spacing: 10mm (±0.2mm tolerance)
- Thread specification: M3 mounting screws (included)
- Surface treatment: Matte black anodized
- Operating temperature: -20℃ to 80℃
- Weight: 120g ±5g
- Dimensions: 80mm(L) × 25mm(W) × 15mm(H)
- Vibration resistance: ≤50m/s² (10-150Hz)
- Corrosion resistance: 96hr salt spray test passed
Precision-engineered mounting solution for cylindrical sensors, featuring anti-rotation grooves and dual locking screw positions. The hardened contact surfaces ensure secure sensor fixation while preventing surface deformation. Compatible with NPN/PNP inductive/proximity sensors from major brands.
- Position detection in linear actuator systems
- Automated packaging machine limit sensing
- CNC machine tool safety interlocks
- Robotic arm end effector alignment
- Conveyor belt object detection systems
Installation guidance:
Use provided M3×6mm flat head screws with 0.4-0.6N·m torque.
Apply thread-locking compound for high-vibration environments.
Maintain 0.5-1mm gap between sensor tip and detected object.
| Property | Property Value |
|---|---|
| sku | F-HGS8X10H |
| Bore Diameter | <8mm> |
| Stroke | <10mm> |
