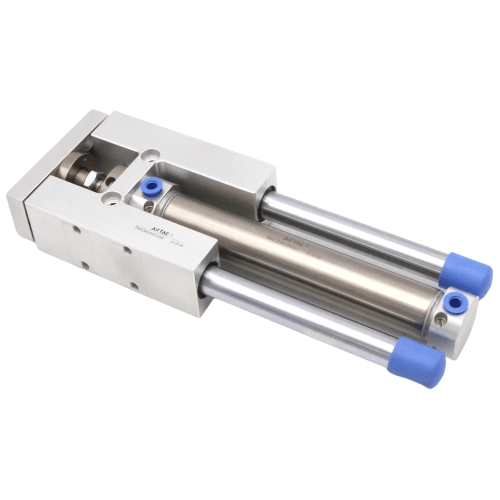

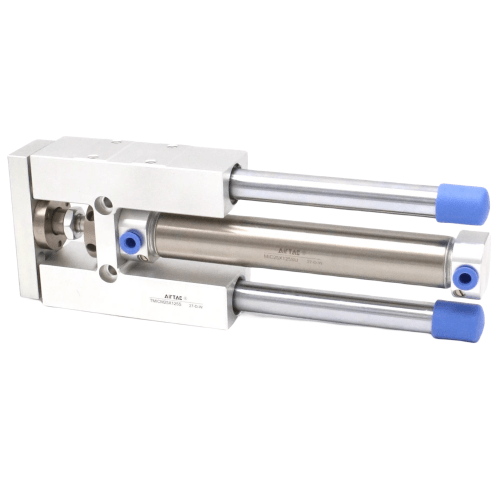

Airtac F-TMICM Guide Unit Complete Set F-TMICM25X150
$96.53
Regular price
$104.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-TMICM25X150
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC F-TMICM25X150 Linear Shaft Guide Unit Complete Package
- Model: F-TMICM25X150
- Type: Pre-assembled linear motion guide system
- Shaft diameter: 25mm (precision ground)
- Stroke length: 150mm
- Material: Chrome-plated steel shaft + aluminum alloy housing
- Load capacity: Static 1,500N / Dynamic 800N
- Repeat positioning accuracy: ±0.01mm
- Max speed: 2 m/s
- Operating temperature: -20℃ to 100℃
- Mounting hole spacing: 60mm centers (M6 threaded)
- Surface hardness: HRC 58-62 (shaft)
- Weight: 0.85kg (complete assembly)
- Dimensions: 150mm(L) × 25mm(W) × 40mm(H)
- Lubrication: Pre-lubricated with MX-100 grease
Factory-preassembled linear guide system combining hardened shaft and low-friction bushings. Features integrated dust seals and corrosion-resistant coating for industrial environments. Includes mounting hardware and alignment shims for simplified installation.
Typical Applications:
- Automated material handling systems
- CNC machine tool sliding mechanisms
- Packaging equipment linear actuators
- Semiconductor wafer handling robots
- Automotive assembly jig positioning
Installation note:
Ensure parallel alignment within 0.05mm/m using included gauge pins.
Apply thread locker to M6 mounting screws (30N·m torque recommended).
| Property | Property Value |
|---|---|
| sku | F-TMICM25X150 |
