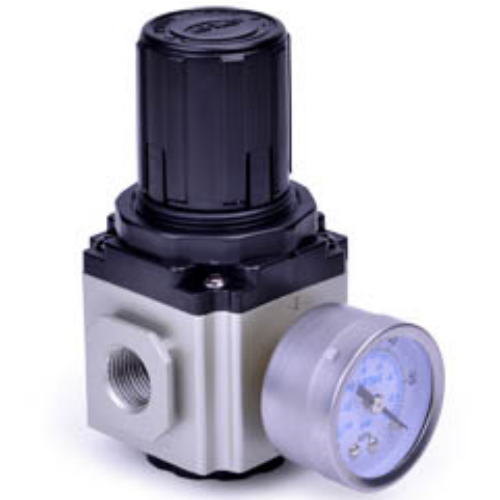

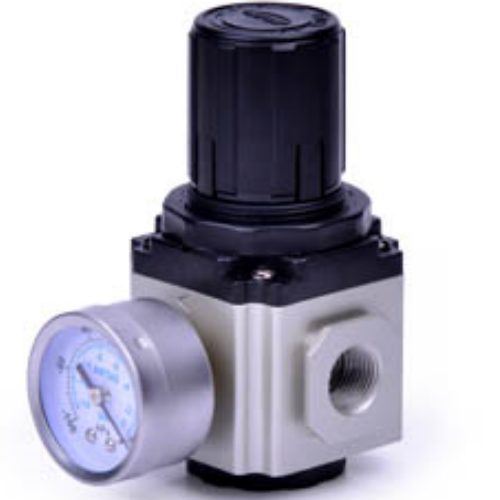

Airtac GVR Vacuum Pressure Regulating Valve GVR30010JN
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR Series Vacuum Regulating Valve GVR30010JN Technical Details
- Model: GVR30010JN (Full designation: GVR-3/4-10JN)
- Type: Vacuum pressure regulating valve with manual adjustment
- Port size: Rc3/4 (BSPP 3/4")
- Operating pressure range: -100kPa to 0MPa (vacuum regulation)
- Maximum flow rate: 3000 L/min (ANR)
- Adjustment knob rotation: 270°±5° with lockable setting
- Pressure gauge interface: G1/8 (optional gauge not included)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: Fluororubber (FKM) for vacuum integrity
- Operating temperature: -10℃ to 60℃ (no freezing)
- Weight: 2.3 kg ±5% (including mounting hardware)
- Dimensions: 158mm(L) × 98mm(W) × 132mm(H)
- Port orientation: Bottom inlet/top outlet configuration
- Mounting: Direct pipeline installation with bracket support recommended
Precision vacuum regulator designed for industrial suction systems, featuring a dual-chamber diaphragm structure for stable pressure maintenance. The JN variant includes a tamper-proof adjustment knob with click-stop rotation, optimized for vacuum pick-and-place applications requiring repeatable suction force control. Requires upstream filtration (5μm minimum) to prevent diaphragm damage.
- Robotic vacuum gripper systems in electronics assembly
- Plastic thermoforming machine vacuum beds
- Medical device packaging line suction handling
- Glass panel CNC machining fixtures
- Automotive part leak testing stations
Installation protocol:
Install vertically with arrow marking aligned to flow direction.
Always use thread sealant (PTFE tape not recommended).
Allow 200mm straight pipe upstream for flow stabilization.
Perform initial calibration at 50-60% of maximum vacuum capacity.
| Property | Property Value |
|---|---|
| sku | GVR30010JN |
| Port Size | PT3/8 |
