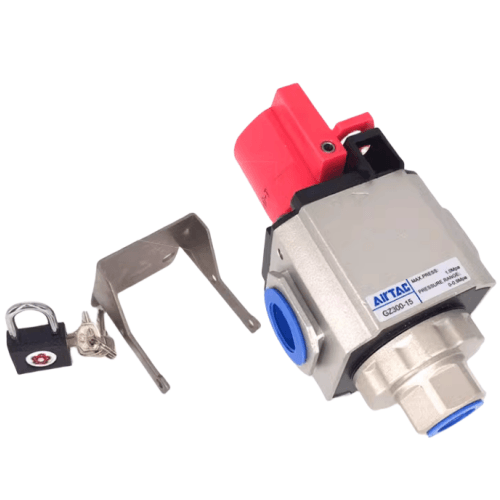

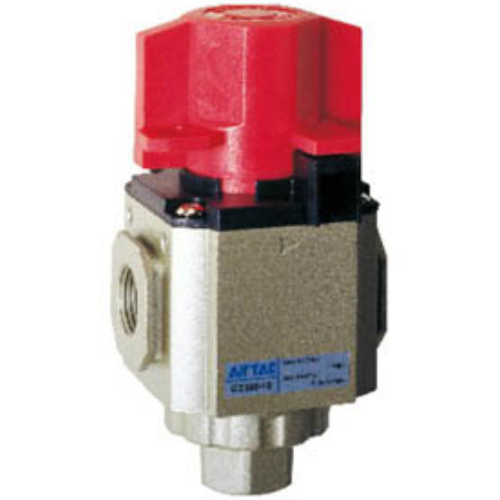

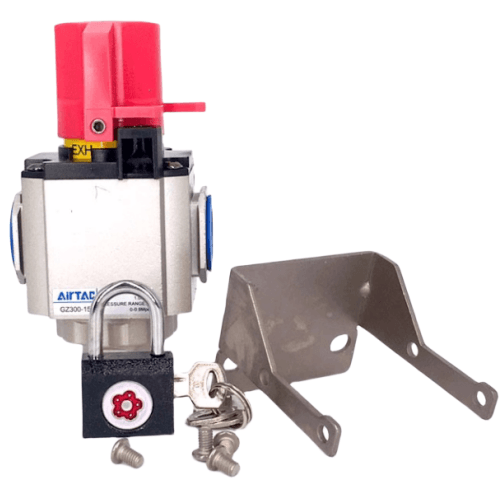

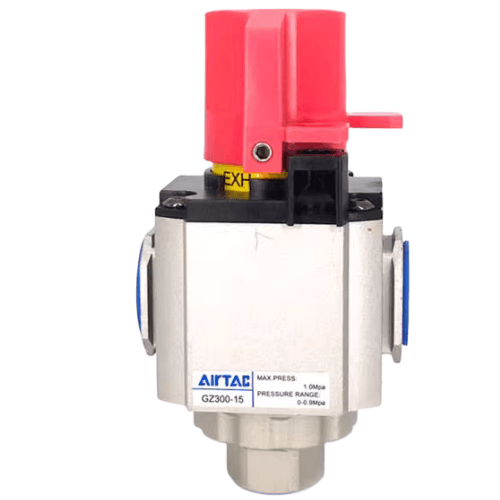

Airtac GZ Globe Valve GZ200-08
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;
4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-off Valve GZ200-08 Technical Details
- Model: GZ200-08
- Type: Manual reset plunger-type shut-off valve
- Port size: PT1/8 (BSP 1/8 thread standard)
- Operating pressure: 0.05–1.0 MPa
- Maximum pressure: 1.5 MPa
- Actuation force: ≤25N
- Weight: 220g ±5g
- Dimensions: 68mm(L) × 42mm(W) × 34mm(H)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (high nitrile)
- Temperature range: -10℃ to 80℃ (fluid/ambient)
- Flow rate: 650 NL/min (at 0.5 MPa)
- Response time: Instant mechanical engagement
- Protection rating: IP40 (non-submersible)
Emergency flow isolation valve with positive shut-off mechanism, featuring a bright red locking collar for visual status confirmation. The dual-spring plunger design ensures immediate fluid cutoff during safety interventions. Compatible with compressed air and inert gases (N2/CO2). Requires periodic lubrication of the plunger shaft (annual maintenance recommended).
- Production line emergency stop systems
- Pneumatic press safety interlocks
- Robotic cell gas supply cutoff
- CNC machine tool air circuit isolation
- Laboratory gas distribution panels
Installation protocol:
Mount in accessible locations with clear operator visibility.
Arrow markings must align with flow direction.
Use PTFE tape on male threads - do not overtighten (max 14.7 N·m torque).
Test full engagement monthly by pulling the safety ring.
| Property | Property Value |
|---|---|
| sku | GZ200-08 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT1/4 |
| Port | <1/4"> |
| Bracket Code | With Bracket |
