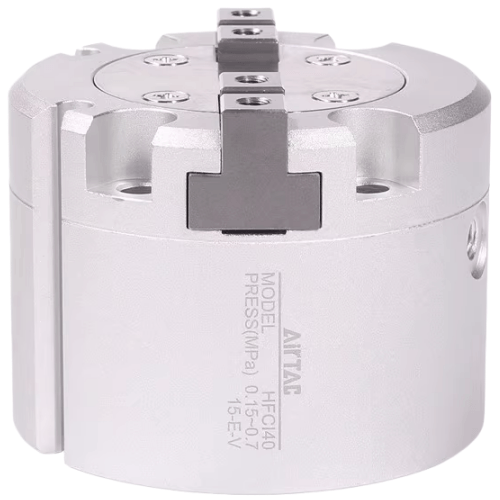

Airtac HFCI 2-Jaw Pneumatic Gripper HFCI40
2、Integrated anti-collision pad on piston front end effectively reduces metal-on-metal impact noise during jaw release;
3、Dowel pin holes at base ensure improved installation accuracy and consistent positioning during repeated disassembly/reassembly;
4、High repeatability (±0.01mm) in clamping operation ensures reliable performance for automated equipment integration;
5、Comprehensive range of series and specifications accommodates diverse workpiece geometries, meeting varied application requirements.
Category: Pneumatic Grippers , Brand: AIRTC , Series: HFCI
AirTAC HFCI40 Two-Jaw Pneumatic Gripper Technical Specifications
- Model: HFCI40
- Type: Parallel two-jaw gripper (double-acting)
- Gripping force: 60-120N (adjustable via pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 0-8mm (standard), customizable up to 12mm
- Repeat accuracy: ±0.02mm
- Operating temperature: -10℃ to 80℃
- Body material: Anodized aluminum alloy (A6063)
- Jaw material: Hardened alloy steel (HRC45-50)
- Seal material: Heat-resistant polyurethane (PU)
- Port size: M5x0.8 (dual ports for push/pull action)
- Weight: 980g ±2% (excluding accessories)
- Dimensions: 102mm(L) × 48mm(W) × 42mm(H)
- Response time: ≤0.15s (at 0.5MPa)
- Protection rating: IP54 (standard), IP67 optional
High-precision pneumatic parallel gripper with dual guide rods for enhanced stability during high-cycle operations. Features wear-compensation mechanism and anti-rotation design, maintaining alignment accuracy through >1 million cycles. Compatible with ISO 9400-1 mounting interfaces for robotic integration.
- CNC machine tending (workpiece loading/unloading)
- Electronics assembly: PCB handling & component insertion
- Pharmaceutical packaging: Vial/Bottle manipulation
- Automotive parts transfer: Shafts, gears, and bearings
- 3C industry: Mobile device component positioning
Installation guidelines:
Use clean dry air (ISO 8573-1:2010 Class 3.4.2) with 5-10μm filter.
Lubricate with ISO VG32 turbine oil if operating below 3Hz cycle rate.
For vertical mounting, install shock absorbers at stroke ends.
| Property | Property Value |
|---|---|
| sku | HFCI40 |
| Operation Type | Double Acting |
| Gripper Optional Types | Two Claws |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
