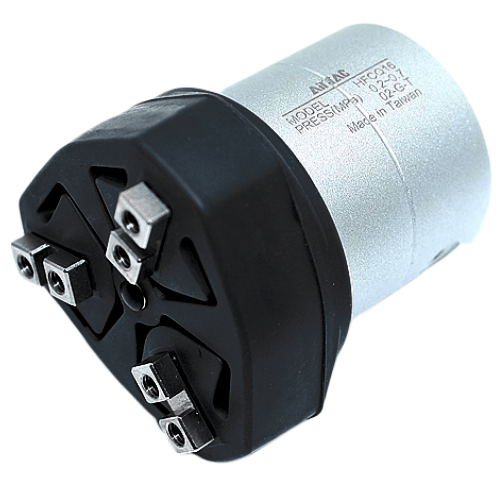

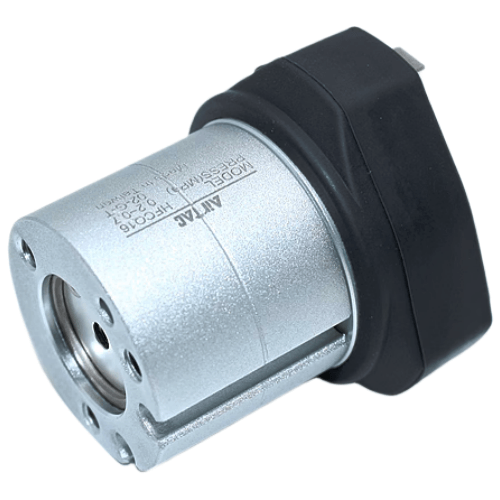

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ50V
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ50V Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ50V
- Type: Parallel gripper with hollow through-hole structure
- Bore size: Ø50mm
- Operating pressure: 0.1–0.7 MPa
- Max stroke per jaw: 10mm (total 20mm opening)
- Gripping force: 108N @0.5MPa (adjustable via pressure)
- Weight: 348g ±5g
- Dimensions: 80mm(L) × 50mm(W) × 30mm(H)
- Center through-hole: Ø12mm (allows cable/pneumatic line routing)
- Mounting pattern: 4×M4 threaded holes (8mm pitch circle)
- Material: Aluminum alloy body with NBR seals
- Temperature range: -10℃ to 70℃
- Air consumption: 32cm³/stroke
- Repeat accuracy: ±0.1mm
- Response time: 0.1s (open/close cycle @0.5MPa)
- Protection rating: IP54
The HFCQ50V features a symmetrical hollow design enabling clean integration of pneumatic lines/sensors through its central bore. Precision ground guide rods and dual piston drive ensure smooth operation with minimal stick-slip effect. Optional magnetic sensors (MPMV series) can be integrated for position feedback. Ideal for applications requiring compact grippers with internal media routing.
- PCB handling in electronics assembly lines
- Automated screw driving stations with through-bit access
- Medical device assembly requiring internal vacuum pickup
- Collaborative robot (cobot) end-effectors
- Optical lens positioning systems
Installation tip:
Use M4×12mm SHCS for mounting. Apply 0.3mL of ISO VG32 pneumatic oil monthly
through the air ports for maintenance. Avoid side-loading beyond 15N during operation.
| Property | Property Value |
|---|---|
| sku | HFCQ50V |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Spring-Loaded Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <50mm> |
