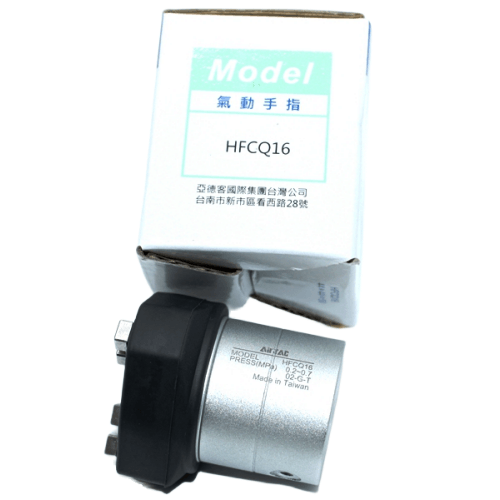

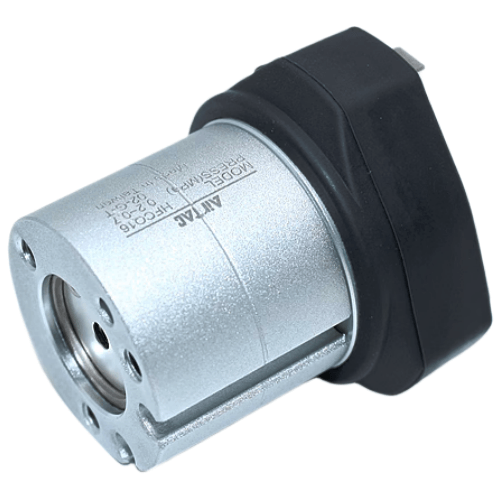

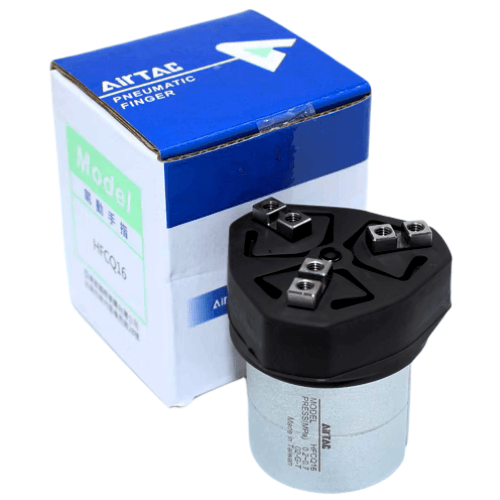

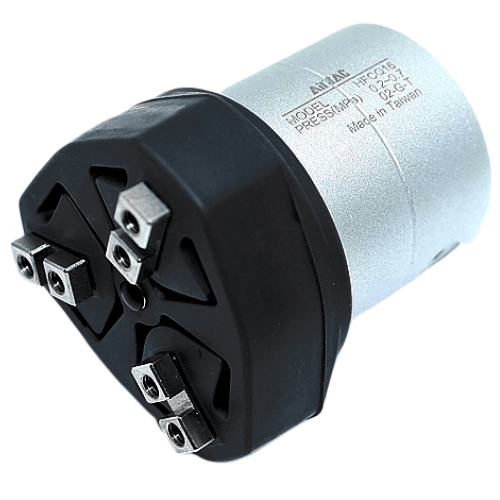

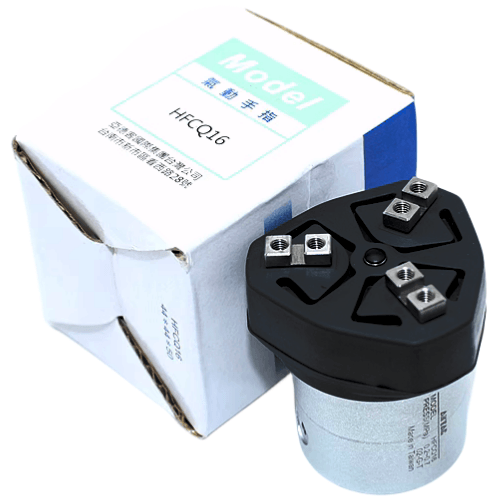

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ63E
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ63E Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ63E
- Type: Double-acting parallel gripper with hollow through-hole
- Bore size: Ø63mm
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Drive method: Pneumatic (requires 4.5-7 bar compressed air)
- Repeat accuracy: ±0.03mm
- Max gripping force: 550N (at 0.6MPa)
- Stroke per finger: 0-15mm (adjustable)
- Compatible tube size: Ø6mm (1/8") pneumatic fittings
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Material: Aluminum alloy body, NBR seals
- Weight: 640g (1.41 lbs)
- Dimensions: 150mm(L) × 63mm(W) × 48mm(H)
- Center through-hole: Ø30mm
- Response time: 0.1s (open/close cycle at 0.5MPa)
- Protection rating: IP54 (dust and splash resistant)
High-precision hollow gripper designed for applications requiring internal component routing. Features dual piston drive mechanism with wear-resistant guide rods and anti-rotation design. The central Ø30mm passage allows integration of sensors, cables, or vacuum lines. Optimized for high cycle rates (up to 200 cycles/min) with minimal air consumption (0.5 NL per cycle).
- Robotic end-effectors in PCB handling systems
- Automated assembly of cylindrical components
- Food packaging lines with integrated vacuum suction
- Medical device manufacturing requiring cleanroom compatibility
- Machine tending for CNC lathes with through-spindle access
Installation tip:
Maintain coaxial alignment during mounting and use M5x0.8 mounting screws (max torque 3.5N·m).
Apply light machine oil (ISO VG32) to guide rods monthly in continuous operation. Avoid side load exceeding 200N.
| Property | Property Value |
|---|---|
| sku | HFCQ63E |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Cylinder Type Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 63mm |
