Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ63V
$509.44
Regular price
$516.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFCQ63V
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

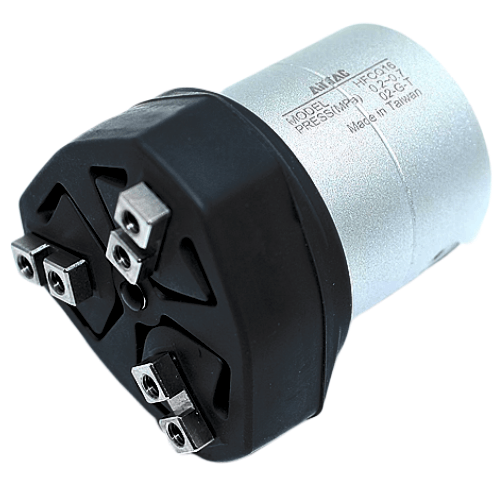

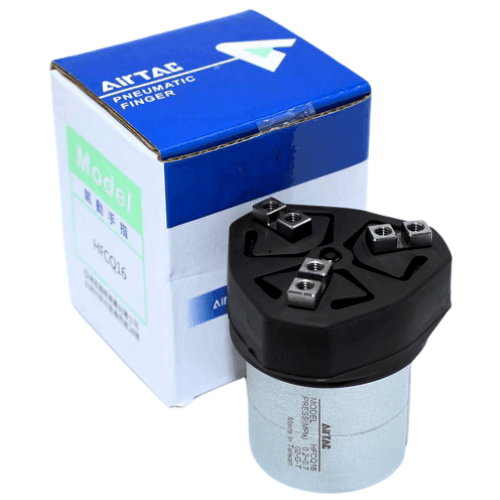

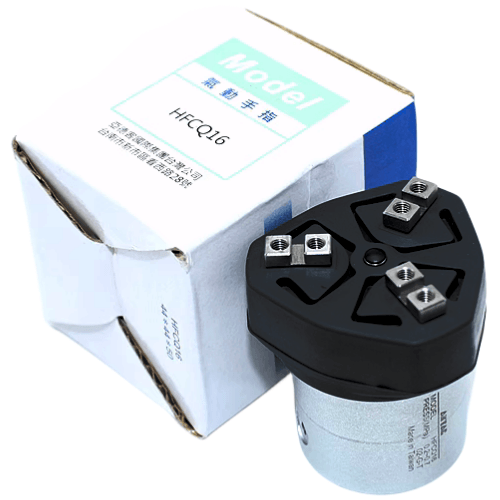

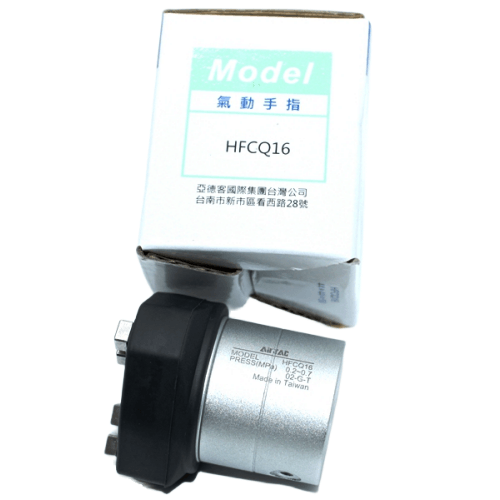

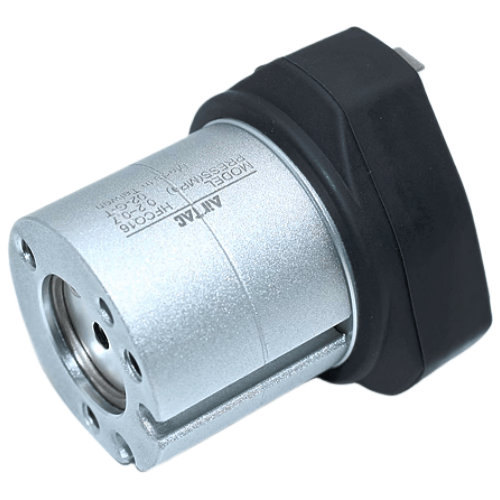

HFCQ Hollow-Type Pneumatic Gripper (AirTAC)
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
Installation note:
Apply Molykote 111 grease to sliding surfaces during maintenance.
Avoid side impact forces exceeding 50N. For vertical mounting,
use anti-vibration brackets (sold separately).
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ63V Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ63V
- Type: Parallel twin-piston hollow structure
- Gripping method: Double-acting (requires external air valve)
- Bore size: Ø63mm
- Stroke per jaw: 0-6mm (adjustable)
- Operating pressure: 0.1-0.7 MPa
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body with NBR seals
- Port size: 1/8" NPT (G1/8 optional)
- Repeat positioning accuracy: ±0.2mm
- Max sliding speed: 100-200mm/s (pressure-dependent)
- Lateral load capacity: 35N max
- Endurance cycles: 5 million+ (clean air conditions)
- Weight: 1,250g ±2%
- Dimensions: 163mm(L) × 80mm(W) × 63mm(H)
- Mounting pattern: 4×M5 threaded holes (8mm depth)
High-moment pneumatic parallel gripper featuring a through-hole design (Ø22mm central bore) for integrated cabling/sensor routing. Precision-ground guide rails provide smooth operation with minimal stick-slip effect. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
Typical Applications:
- Robotic arm end-effectors for CNC machine tending
- PCB board handling with internal vacuum/sensor lines
- Automated packaging line product orientation
- Medical device assembly with cleanroom compatibility
- 3D printer filament spool changing systems
Installation note:
Apply Molykote 111 grease to sliding surfaces during maintenance.
Avoid side impact forces exceeding 50N. For vertical mounting,
use anti-vibration brackets (sold separately).
| Property | Property Value |
|---|---|
| sku | HFCQ63V |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Spring-Loaded Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 63mm |
