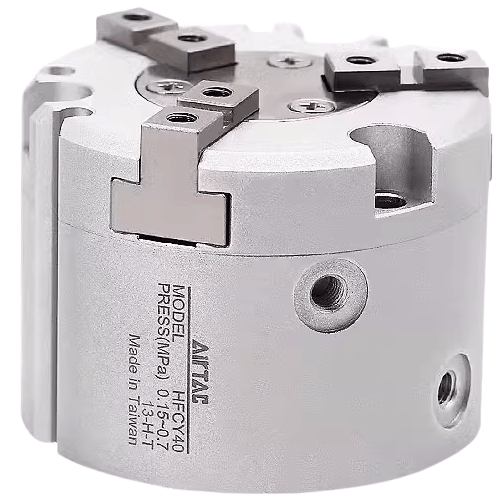

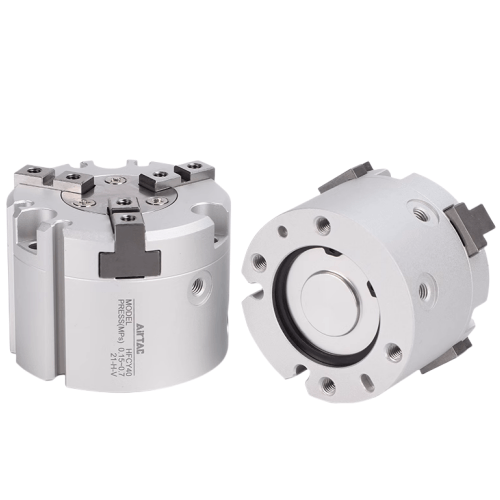

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY25
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY25 Three-Jaw Pneumatic Gripper Specifications
- Model: HFCY25
- Type: Parallel 3-jaw gripper (double-acting)
- Gripping force: 30-180N (adjustable via pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 0-10mm (total opening range 20mm)
- Actuation method: Dual piston drive with guide rods
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, hardened steel jaws
- Port size: M5 x 0.8 (dual ports for bidirectional control)
- Temperature range: -10℃ to 80℃
- Weight: 0.68kg
- Dimensions: 98mm(L) × 56mm(W) × 44mm(H)
- Seal type: NBR + PU hybrid seals
- Max gripping speed: 100mm/s
- Mounting options: 4x M4 threaded holes (front/rear mounting)
High-precision triple-jaw gripper designed for delicate part handling with exceptional centering accuracy. Features anti-rotation mechanism for synchronized jaw movement and integrated wear compensation. Optimized for cleanroom environments (ISO Class 5 compatible) with particle-reduction design.
- PCB component insertion machines
- Optical lens assembly systems
- Medical device manufacturing lines
- Precision bearing handling robots
- Automotive fuel injector assembly
Operation tip:
For cylindrical object gripping, use jaw pads with V-groove surfaces (sold separately).
Maintain 0.5-1.0 MPa air pressure for optimal balance between speed and part deformation prevention.
| Property | Property Value |
|---|---|
| sku | HFCY25 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
