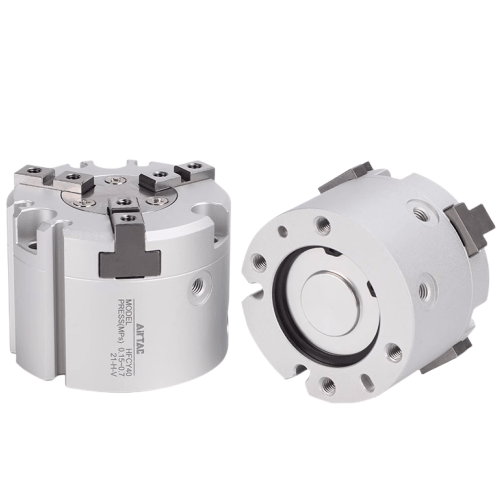

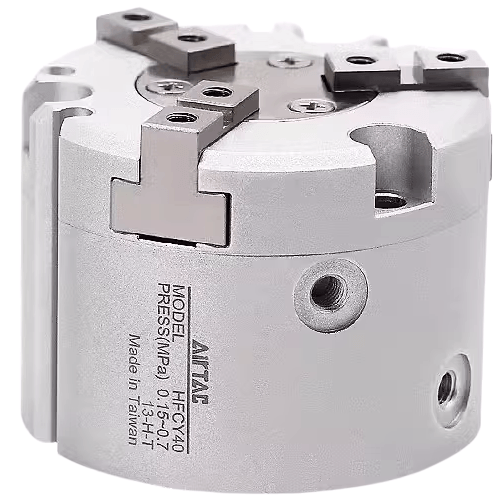

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY63
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY63 Three-Jaw Pneumatic Gripper Technical Details
- Model: HFCY63
- Type: Parallel 3-jaw gripper (double-acting)
- Jaw count: 3 independent jaws
- Stroke per jaw: 8mm standard (5mm/10mm optional)
- Operating pressure: 0.2–0.7 MPa
- Max gripping force: 48N at 0.5MPa
- Bore size: Ø63mm
- Weight: 1.65kg (bare gripper), 2.1kg (with accessories)
- Dimensions: 165mm(L) × 108mm(W) × 63mm(H)
- Body material: Anodized aluminum alloy
- Seal type: NBR + PU hybrid seals
- Temperature range: -10℃ to 80℃ (with silicone grease below 0℃)
- Repeat accuracy: ±0.05mm
- Air connection: M5x0.8 dual ports
- Protection class: IP54 (standard), IP67 optional
- Cycle life: 20 million operations (maintenance-free)
High-precision three-jaw gripper with synchronized parallel movement, featuring adjustable gripping force via air pressure regulation. The triangular jaw configuration enables stable handling of cylindrical or irregularly shaped objects. Integrated T-slot design allows custom jaw tooling adaptation. Compatible with ISO 9409-1 mounting patterns.
- Robotic part transfer in automotive assembly lines
- Precision component positioning in CNC machining centers
- Bottle capping systems in pharmaceutical packaging
- Electronics PCB handling with ESD-safe variants
- Food-grade material handling (optional stainless steel version)
Operation tip:
For optimal performance, use filtered lubricated air (ISO 8573-1 class 4.4.3)
and maintain 0.5-1m/s air flow velocity. Install shock absorbers when cycle
rate exceeds 2Hz to prevent vibration-induced wear.
| Property | Property Value |
|---|---|
| sku | HFCY63 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 63mm |
