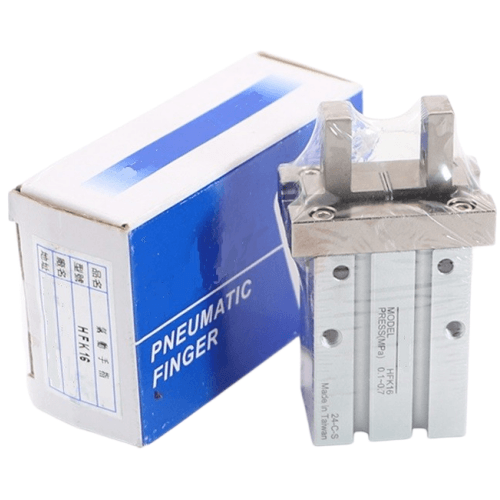

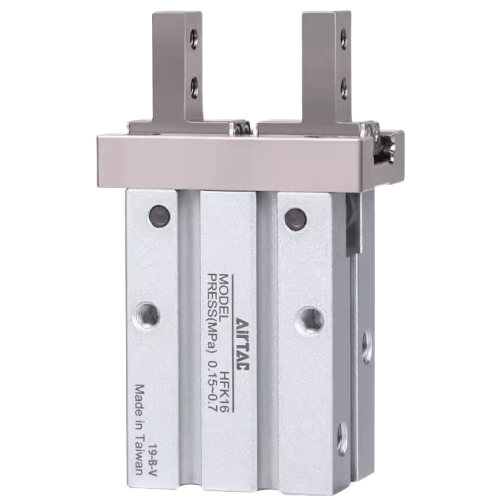

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK10F
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK10F Guided Parallel Pneumatic Gripper Specifications
- Model: HFK10F (Guided Parallel Type)
- Gripping force: 25N (double-acting) / 18N (single-acting)
- Stroke options: 5mm, 10mm, 15mm (customizable)
- Operating pressure: 0.1–0.7 MPa
- Guide mechanism: Linear ball guide with 4-row bearing structure
- Repeat accuracy: ±0.01mm
- Ambient temperature: -10℃ to 80℃ (NBR seals)
- Material: Aluminum alloy body, hardened steel guide rails
- Port size: M5x0.8 (standard), 1/8" NPT optional
- Weight: 298g ±5g (excluding accessories)
- Dimensions: 100mm(L) × 30mm(W) × 25mm(H) (10mm stroke model)
- Rod end thread: M3 internal thread (for jaw customization)
- Shock resistance: 15m/s² max (with proper mounting)
- IP rating: IP54 (standard), IP67 available with optional seals
Precision parallel gripper featuring hardened steel linear guides with preloaded ball bearings for zero backlash operation. The dual-piston design ensures symmetrical gripping force distribution, while the integrated T-slot allows modular tooling attachment. Optimized for high-cycle applications (up to 2 million cycles at 0.5MPa).
- PCB handling in SMT assembly lines
- Precision component insertion in micro-motor assembly
- Medical device part manipulation (syringe barrels, sensor components)
- Automated sorting of watch components
- 3C industry small part transfer systems
Mounting advice:
Use M3x0.5 screws (grade 12.9 or higher) for jaw installation.
Lubricate guide rails with ISO VG32 hydraulic oil during initial setup.
For vertical mounting, install an air exhaust filter to prevent particle ingress.
- Max cycle rate: 120 cycles/min (with 70% duty cycle)
- Recommended air preparation: 40μm filtration + auto-drain lubricator
- Allow 15-minute break-in period at 0.3MPa after installation
| Property | Property Value |
|---|---|
| sku | HFK10F |
| Gripper Optional Types | Bottom Mounting Type |
| Opening/Closing Stroke | <4mm> |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
