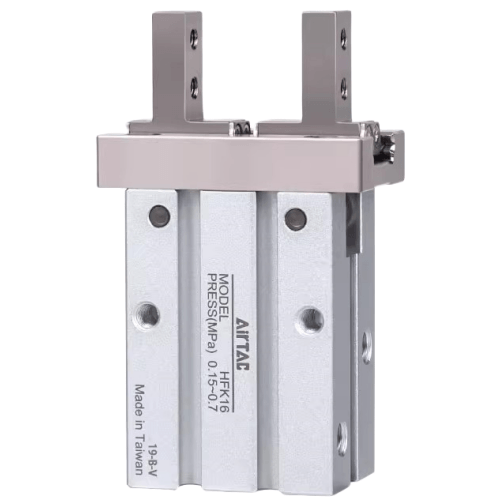

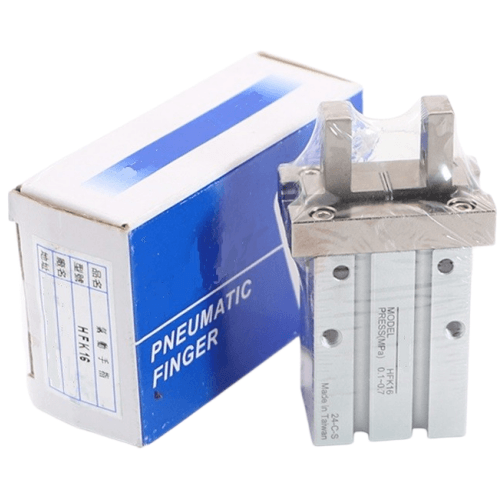

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK10N
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK Rail-Guided Parallel Pneumatic Gripper HFK10N Specifications
- Model: HFK10N
- Type: Rail-guided parallel gripper (double-acting)
- Gripping force: 25N at 0.5MPa
- Operating pressure: 0.1-0.7 MPa
- Stroke per finger: 5mm
- Guide rail type: Precision linear slide with ball bearings
- Repeatability: ±0.02mm
- Operating temperature: -10℃ to 80℃
- Material: Aluminum alloy body, hardened steel guide rails
- Weight: 320g ±5g
- Dimensions: 70mm(L) × 34mm(W) × 34mm(H)
- Seal material: Heat-resistant NBR (nitrile rubber)
- Port size: M5x0.8 pneumatic interface
- Protection rating: IP54 (dust protected, water splashes resistant)
- Max sliding speed: 500mm/s
- Lubrication: Pre-lubricated (maintenance-free design)
The HFK10N features synchronized parallel movement through dual linear guides, delivering exceptional positional accuracy for delicate part handling. Its compact profile and anti-corrosion surface treatment make it ideal for cleanroom environments. The integrated T-slot design allows direct mounting of custom jaws or sensors.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Precision bearing assembly stations
- Micro-motor rotor handling in automotive manufacturing
- Optical lens positioning systems
Operation tip:
For optimal performance, use filtered air (5-40μm) with ISO VG32 turbine oil mist lubrication.
Avoid side-loading beyond 15N to prevent guide rail deformation.
| Property | Property Value |
|---|---|
| sku | HFK10N |
| Gripper Optional Types | Through-hole mounting type |
| Opening/Closing Stroke | <4mm> |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
