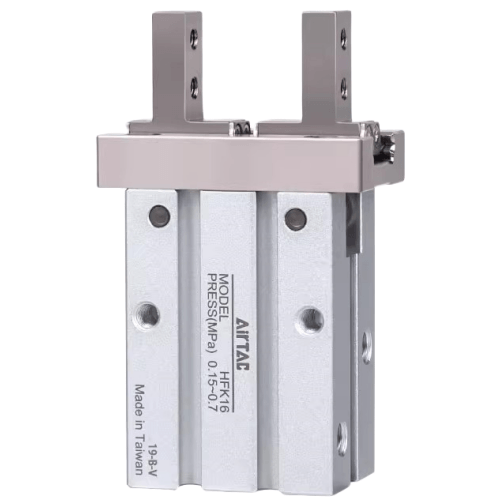

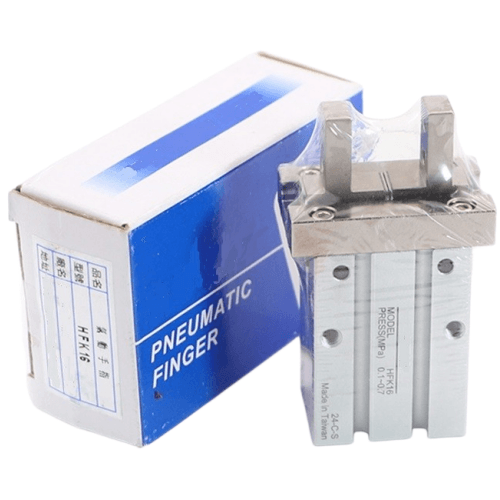

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK10R
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK10R Guided Parallel Gripper Technical Details
- Model: HFK10R
- Type: Guided parallel gripper (double-acting)
- Gripping force: 28N @ 0.5MPa / 45N @ 0.8MPa
- Operating pressure: 0.2–0.8 MPa
- Stroke per jaw: 5mm (standard)
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Actuation: Pneumatic (requires 4mm tubing)
- Port size: M5x0.8 (dual ports for push/pull action)
- Body material: Anodized aluminum alloy
- Guide rail material: Hardened stainless steel
- Seals: HNBR (hydrogenated nitrile) for high temperature resistance
- Operating temperature: -10℃ to 90℃ (180℃ intermittent)
- Protection class: IP54 (standard), IP67 optional
- Weight: 230g ±5g
- Dimensions (L×W×H):
- Closed state: 67mm × 34mm × 28mm
- Open state: 77mm × 34mm × 28mm
- Rail height: 10mm (embedded)
Precision-engineered parallel gripper with integrated linear guides, designed for high-cycle automation tasks requiring micron-level accuracy. Features anti-vibration ball bearing guidance and wear-compensation mechanism. Optimized for cleanroom environments with particle emission <0.1mg/m³. Requires ISO 8573-2 Class 3 compressed air.
- PCB component insertion machines
- Micro-motor shaft assembly systems
- Pharmaceutical blister packaging lines
- Optical lens polishing automation
- Watch movement manufacturing
- Silicon wafer handling robots
Operational tip:
For maximum service life, apply MIL-PRF-81322 grease quarterly to guide rails.
Avoid side loads exceeding 15N during gripping operations.
| Property | Property Value |
|---|---|
| sku | HFK10R |
| Gripper Optional Types | Wide-Narrow Claw Type |
| Opening/Closing Stroke | <4mm> |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
