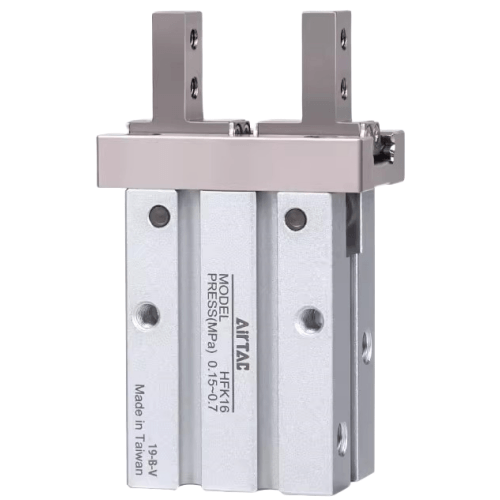

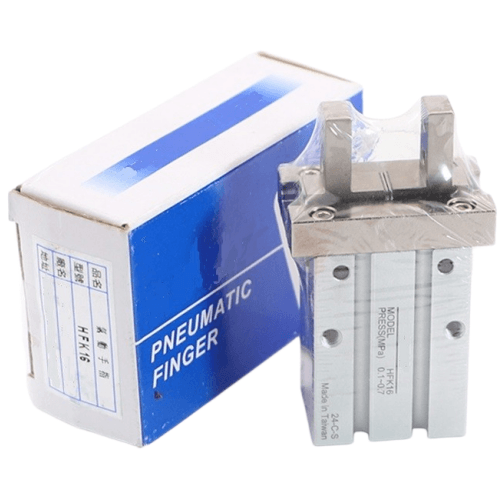

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK16B
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK16B Guided Parallel Pneumatic Gripper Specifications
- Model: HFK16B
- Type: Guided parallel movement (dual rail structure)
- Action method: Double-acting
- Gripping force: 50N (at 0.5MPa)
- Stroke per finger: 0-6mm (adjustable)
- Operating pressure: 0.2-0.7 MPa
- Operating temperature: -10℃ to 80℃
- Material: Aluminum alloy body, hardened steel guide rails
- Rail type: Linear ball bearing guided
- Repeat accuracy: ±0.02mm
- Port size: M5 (Rc1/8 optional)
- Weight: 320g ±5g
- Dimensions: 78mm(L) × 42mm(W) × 30mm(H)
- Seal material: NBR (Nitrile rubber)
- Protection rating: IP54 (standard), IP67 (optional with seals)
- Lubrication: Pre-lubricated (maintenance-free for 5,000km operation)
A precision parallel gripper featuring dual hardened steel guide rails for ultra-stable linear motion. The HFK16B's anti-torsion design maintains parallelism within 0.05mm during full stroke operation. Optimized for high-speed applications (up to 2m/s) with integrated shock absorption. Compatible with vacuum cups or custom tooling via M3 threaded mounting holes on jaws.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Automotive fuel injector assembly
- 3C product testing equipment
- Precision gearbox component handling
- Silicon wafer transfer systems
Installation note:
For maximum stability, mount using all four M4 mounting holes (depth 8mm).
Maintain 0.5-1mm clearance between jaws and workpiece during initial alignment.
Use C-shaped mounting brackets (sold separately) for vertical installations.
| Property | Property Value |
|---|---|
| sku | HFK16B |
| Gripper Optional Types | Side-mounted |
| Opening/Closing Stroke | <6mm> |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
