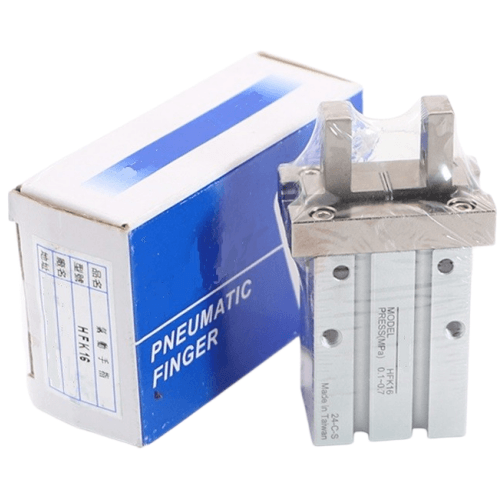

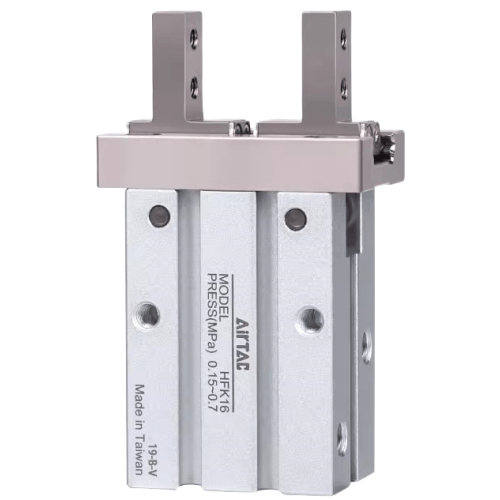

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK16F
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK16F Guided Parallel Pneumatic Gripper Specifications
- Model: HFK16F
- Type: Dual-acting guided parallel gripper
- Bore size: Φ16mm
- Stroke options: 4mm, 6mm, 8mm (customizable)
- Max gripping force: 38N @ 0.6MPa
- Operating pressure: 0.15-0.7MPa
- Port size: M5×0.8 (standard), G1/8 optional
- Body material: Aluminum alloy with hard anodized treatment
- Slide rail type: Dual linear guide blocks
- Repeat accuracy: ±0.02mm
- Seal material: Heat-resistant NBR (-10℃ to 100℃)
- Weight: 280g ±5g
- Dimensions: 88mm(L) × 34mm(W) × 32mm(H)
- Mounting pattern: 30mm inter-hole spacing (ISO 9409-1 compatible)
- Response time: 0.1s (full stroke @ 0.5MPa)
- Max operating speed: 200mm/s
- Protection rating: IP54 (standard), IP67 optional
Precision parallel gripper featuring dual hardened steel guide rails for ultra-stable linear motion. The HFK16F's T-slot jaw mounting system allows 180° position adjustment, with integrated shock absorption grooves reducing vibration during high-speed operations. Requires filtered air (5-50μm) with ISO VG32 or equivalent lubrication.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Precision bearing assembly systems
- Semiconductor wafer handling
- Automotive fuel injector production
Installation tip:
Apply anti-vibration Loctite 243 to mounting screws and maintain 0.03-0.05mm
clearance between jaws and workpiece surface for optimal grip stability.
- Standard jaws: Hardened steel (HRC50±2)
- Optional: Polyurethane soft jaws (Shore A90)
- Custom jaw design service available
| Property | Property Value |
|---|---|
| sku | HFK16F |
| Gripper Optional Types | Bottom Mounting Type |
| Opening/Closing Stroke | <6mm> |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
