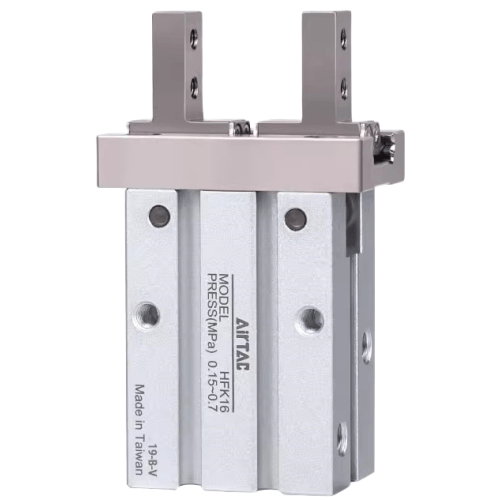

Airtac HFK Guided Parallel Type Pneumatic Gripper HFK20M
2. Monolithic crossed roller linear guide design ensures high rigidity, precision, and exceptional load-bearing capacity
3. Integrated positioning dowel pin at guide base prevents linear guide-body misalignment
4. Features square-shaped mounting groove compatible with DS1G/CS1G sensors (no adapters required) and round-shaped groove for DS1H sensors. Three-sided mounting capability with side/bottom mounting holes for versatile installation
5. Built-in reference centering hole enhances fixation accuracy and repeat positioning consistency during disassembly/reassembly
Category: Parallel Air Grippers | Brand: AirTAC | Series: HFK
AirTAC HFK Guided Parallel Pneumatic Gripper HFK20M Specifications
- Model: HFK20M
- Type: Guided parallel gripper (linear ball bearing)
- Bore size: 20mm
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 95N @0.5MPa
- Stroke per jaw: 0–12mm (adjustable)
- Repeat accuracy: ±0.02mm
- Max speed: 200mm/s
- Port size: M5×0.8 (dual ports for bi-directional control)
- Body material: Anodized aluminum alloy
- Guide rail type: Precision linear ball bearing
- Seal material: NBR/PU (oil-resistant)
- Temperature range: -10℃ to 80℃
- Weight: 0.68kg
- Dimensions: 116mm(L) × 48mm(W) × 34mm(H)
- Mounting: 4×M4 threaded holes (depth 8mm)
- Protection rating: IP54 (standard)
High-precision guided gripper with rigid linear ball bearing system, designed for stable part handling in automated systems. Features zero backlash operation and adjustable stroke settings via mechanical stoppers. Integrated T-slot allows modular tooling attachment. Requires filtered air (5-50μm) with ISO VG32 hydraulic oil mist lubrication recommended.
- CNC machine tool loading/unloading
- PCB component insertion machines
- Pharmaceutical blister packaging
- Precision gear assembly systems
- 3C product testing equipment
Operation tip:
Maintain 0.3-0.6MPa operating pressure for optimal grip force/longevity balance.
Lubricate guide rails every 500km travel distance using lithium soap grease.
| Property | Property Value |
|---|---|
| sku | HFK20M |
| Gripper Optional Types | Through Hole Mounting, Narrow Claw Width |
| Opening/Closing Stroke | <10mm> |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
