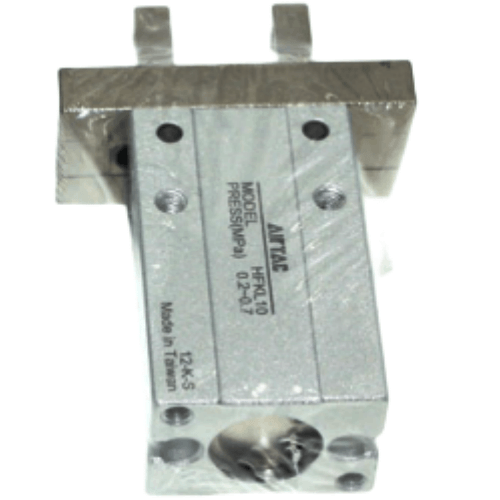

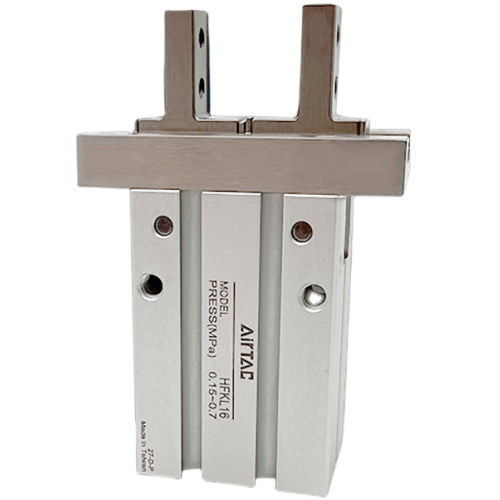

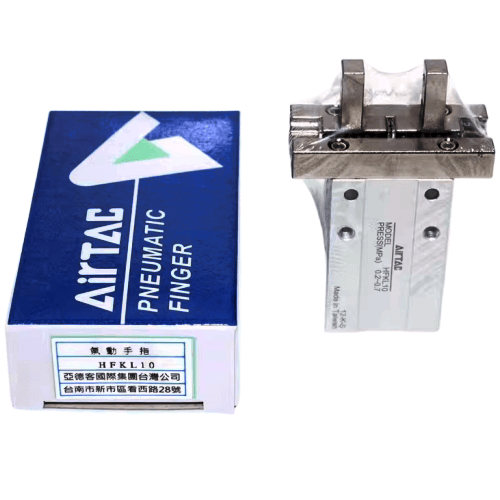

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL16
$160.48
Regular price
$167.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL16
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Operation tip:
For prolonged lifespan, apply light machine oil (ISO VG32) to guide rails
every 50,000 cycles. Avoid side-load exceeding 15N during gripping operations.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL Guided Parallel Gripper HFKL16 Technical Specifications
- Model: HFKL16
- Type: Guided parallel pneumatic gripper (double-acting)
- Gripping force: 38N single finger / 76N dual fingers (at 0.5MPa)
- Stroke per finger: 8mm (total jaw opening 16mm)
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Built-in linear ball bearing guides
- Repeatability: ±0.02mm
- Port size: M5x0.8 (standard), optional NPT1/8
- Material: Aluminum alloy body, hardened steel guide rails
- Temperature range: -20℃ to 80℃
- Weight: 0.65kg (without fittings)
- Dimensions: 84mm(L) × 32mm(W) × 34mm(H)
- Mounting pattern: 20mm spaced M4 threaded holes
- Air consumption: 7.5cm³/stroke (per finger)
Precision-engineered parallel gripper with integrated linear guides ensuring minimal deflection during high-speed operations. Features wear-resistant nickel-plated sliding surfaces and adjustable gripping force through pressure regulation. Compatible with ISO 6432 standard cylinders.
Typical Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Micro-motor shaft handling in robotics
- Optical lens positioning assemblies
- Automotive fuel injector production lines
Operation tip:
For prolonged lifespan, apply light machine oil (ISO VG32) to guide rails
every 50,000 cycles. Avoid side-load exceeding 15N during gripping operations.
Accessory Compatibility:
- Mounting brackets: MKH10 series
- Position sensors: SME/SMT-8M series
- Pads: ZPT-G3 soft silicone tips available
| Property | Property Value |
|---|---|
| sku | HFKL16 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
