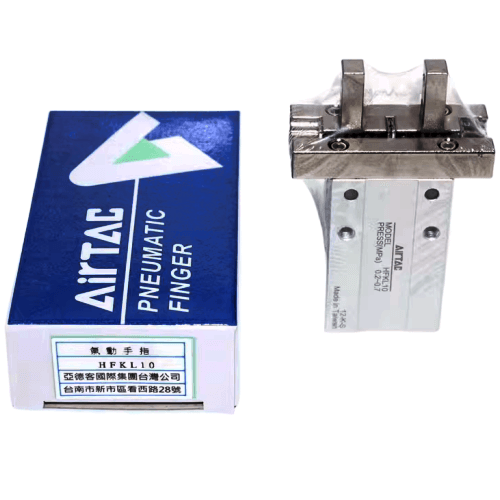

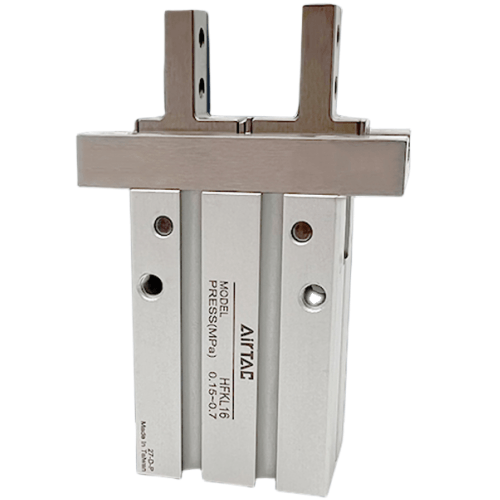

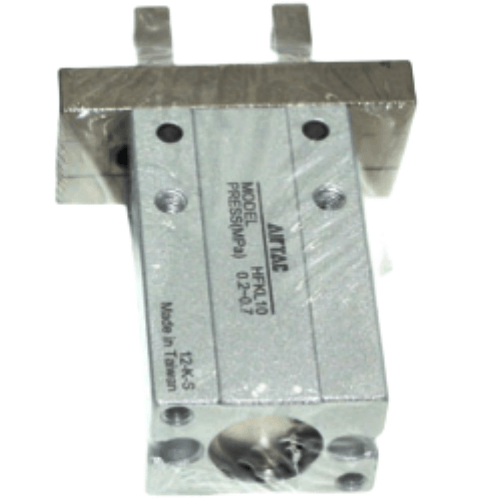

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL16B
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL16B Guided Parallel Pneumatic Gripper Specifications
- Model: HFKL16B
- Type: Guided parallel gripper (double-acting)
- Gripping force: 32N at 0.5MPa
- Stroke per finger: 0-16mm (adjustable)
- Operating pressure: 0.2-0.7 MPa
- Port size: M5x0.8 (dual ports for simultaneous actuation)
- Guide rail type: Dual linear ball bearings
- Material: Aluminum alloy body, hardened steel guide rails
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.03mm
- Protection rating: IP54 (standard seals)
- Weight: 650g ±2% (with rail assembly)
- Dimensions: 150mm(L) × 52mm(W) × 42mm(H) (including mounting flanges)
- Mounting pattern: 4x M4 threaded holes (8mm spacing)
Precision parallel gripper with integrated linear guides for ultra-stable workpiece handling. Features anti-vibration design with preloaded bearings and wear compensation mechanism. Requires 5μm filtered air with ISO VG32 lubrication (optional oil-free operation). Compatible with vacuum cups/magnetic tool changers via front T-slots.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- 3C product testing automation
- Precision gearbox component handling
Operation tip:
For delicate objects, use 0.2-0.3MPa pressure with silicone pads.
Lubricate guide rails every 500,000 cycles using ISO VG68 grease.
| Property | Property Value |
|---|---|
| sku | HFKL16B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
