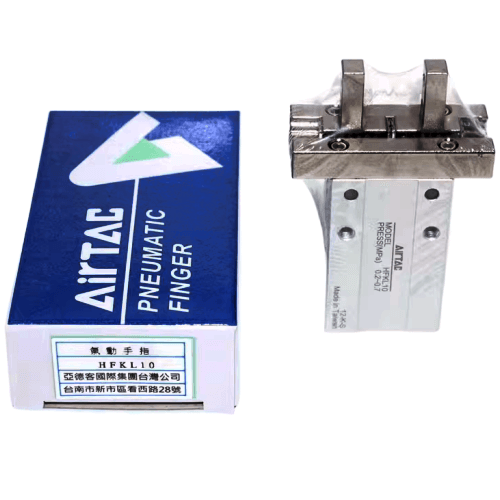

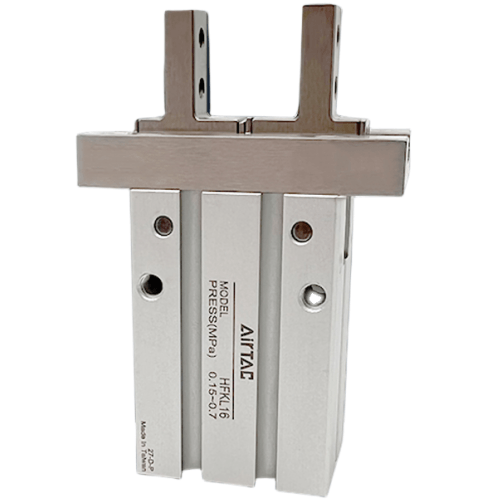

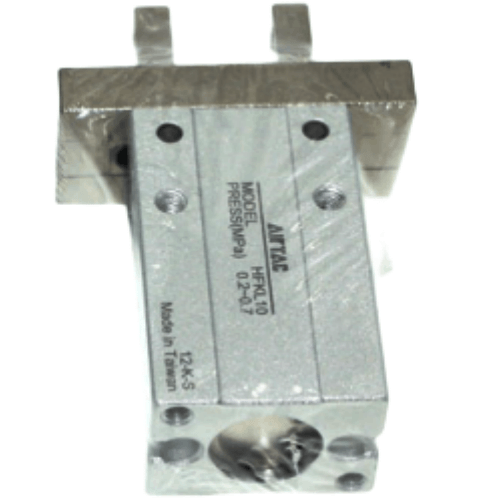

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL20N
$176.77
Regular price
$184.27
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL20N
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Operation note:
Maintain 0.1-0.3μm filtration for optimal seal life. Apply silicone-free
lubricant (ISO VG32) every 50,000 cycles. Avoid side loads exceeding 15N
to prevent rail deformation.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL20N Guided Parallel Pneumatic Gripper Specifications
- Model: HFKL20N
- Type: Guided parallel jaw with integrated linear rail
- Gripping force: 20N (adjustable via pressure regulation)
- Stroke per jaw: 4mm (total opening 8mm)
- Operating pressure: 0.05-0.7 MPa
- Rail type: Dual linear guide with ball bearings
- Repeat accuracy: ±0.01mm
- Max operating speed: 500mm/s
- Port size: M5x0.8 (standard), optional NPT1/8
- Body material: Anodized aluminum alloy
- Jaw material: Hardened stainless steel
- Seal material: NBR (standard), optional FKM
- Temperature range: -10℃ to 80℃ (NBR seals)
- Weight: 340g ±5g
- Dimensions: 75mm(L) × 34mm(W) × 42mm(H)
- Mounting pattern: 30mm spaced M4 threaded holes
- Protection rating: IP40 (IP67 with optional boot)
Precision parallel gripper featuring zero-backlash motion through dual linear guides, optimized for high-speed repetitive operations. The hardened rail system ensures 500,000+ cycle durability under full load. Compatible with vacuum pads/magnetic tools via T-slot jaw face (ISO 9409-1).
Typical Applications:
- PCB component insertion machines
- Micro-motor shaft assembly systems
- Pharmaceutical blister packaging lines
- SCARA robot end-of-arm tooling
- Optical lens handling systems
- Watch component precision alignment
Operation note:
Maintain 0.1-0.3μm filtration for optimal seal life. Apply silicone-free
lubricant (ISO VG32) every 50,000 cycles. Avoid side loads exceeding 15N
to prevent rail deformation.
| Property | Property Value |
|---|---|
| sku | HFKL20N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
