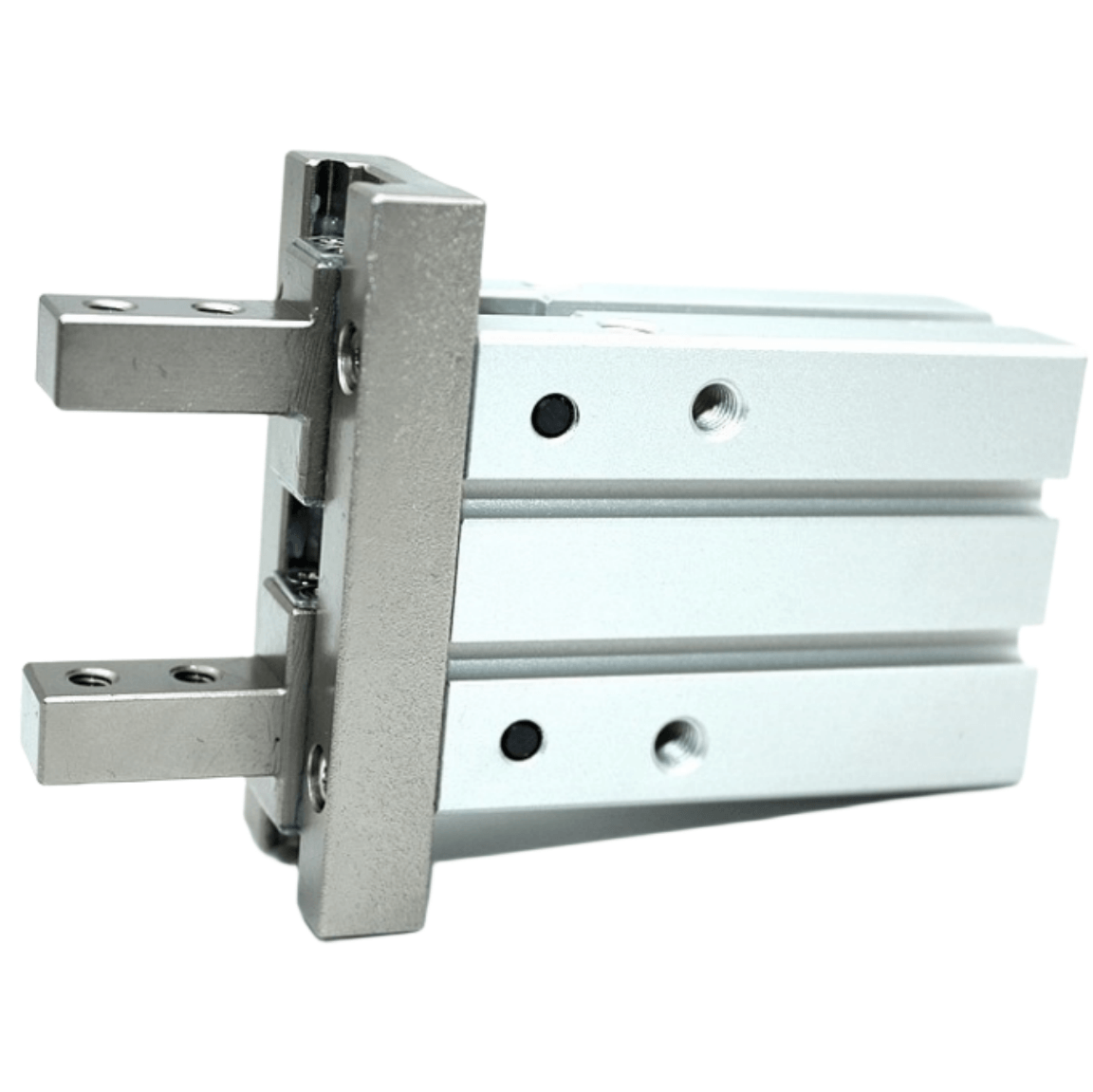

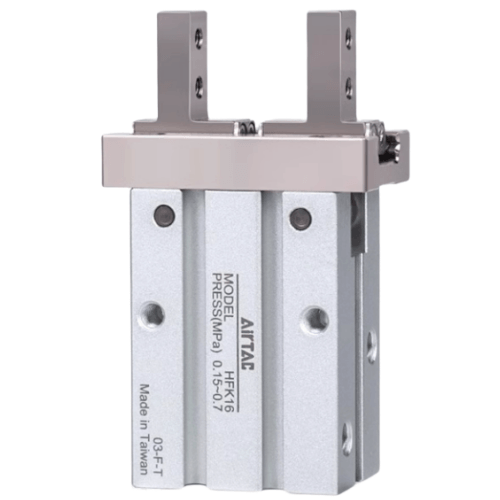

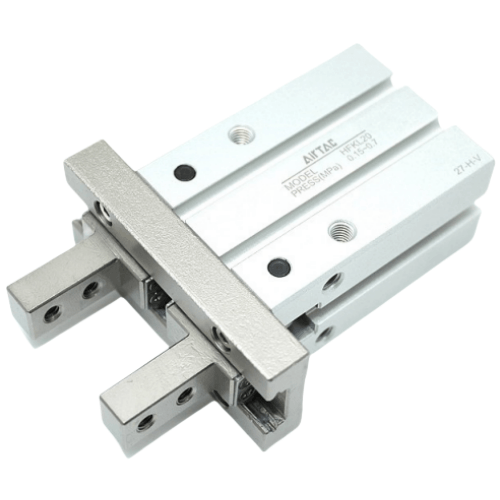

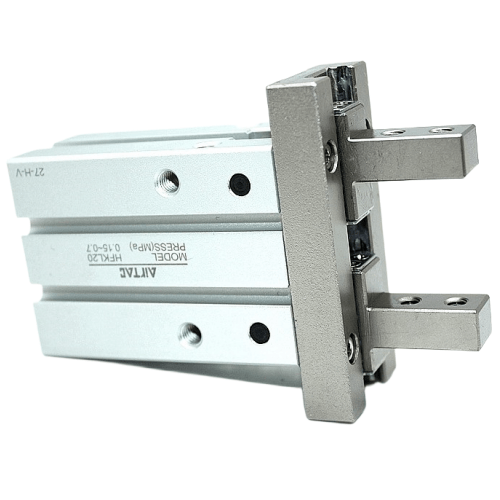

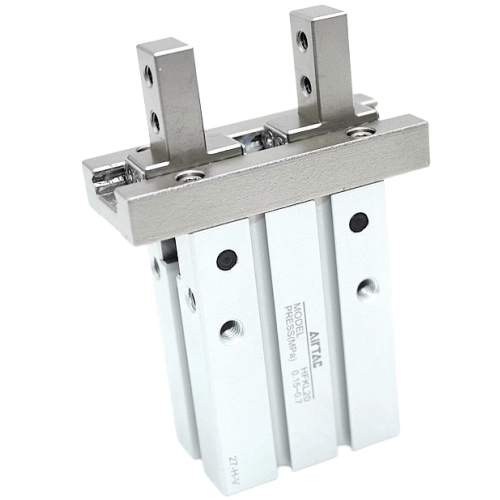

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL10
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL10 Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL10
- Type: Guided parallel gripper (dual-acting)
- Gripping force: 12-18N (adjustable via air pressure)
- Stroke per jaw: 5mm
- Operating pressure: 0.1-0.7 MPa
- Actuation: Double-acting (requires 4 ports: 2 for open/close)
- Port size: M5 x 0.8 (standard) / NPT1/8 optional
- Guide mechanism: Dual linear ball bearings with hardened shafts
- Repeat accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃
- Body material: Anodized aluminum alloy
- Jaw plate material: Stainless steel (standard) / optional polyurethane
- Weight: 0.28 kg
- Dimensions: 80mm(L) × 34mm(W) × 25mm(H)
- Mounting pattern: 25mm inter-hole spacing (ISO 6432 compatible)
- Air consumption: 5.5cm³ per cycle at 0.5MPa
- Shock resistance: 15G acceleration (3ms duration)
- Protection rating: IP54 (standard) / IP67 with optional seals
The HFSKL10 features a rigid dual-guide rail system with cross-roller bearings for anti-torsion stability, making it ideal for high-precision gripping tasks. Its compact design incorporates a through-hole piston structure that eliminates internal sliding friction, achieving over 10 million cycles maintenance-free. The integrated T-slot jaw mounting system allows quick tooling changes.
- PCB component insertion machines
- Micro-motor shaft assembly lines
- Pharmaceutical blister packaging systems
- SCARA robot end-effectors
- Optical lens positioning devices
- Semiconductor wafer handling
Installation tips:
- Use ISO VG32 hydraulic oil or equivalent for lubrication (0.5cc every 500k cycles)
- Maintain 0.3mm minimum clearance between jaws and workpiece during homing
- For vertical mounting, install air exhaust filters to prevent debris ingress
⚠️ Critical note: Avoid side-loading exceeding 5N during operation. Use with clean dry air (ISO 8573-1:2010 Class 2.4.2) and install a 40μm filter upstream. Not recommended for continuous gripping over 60℃ without thermal insulation.
| Property | Property Value |
|---|---|
| sku | HFSKL10 |
| Gripper Optional Types | Standard Type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
