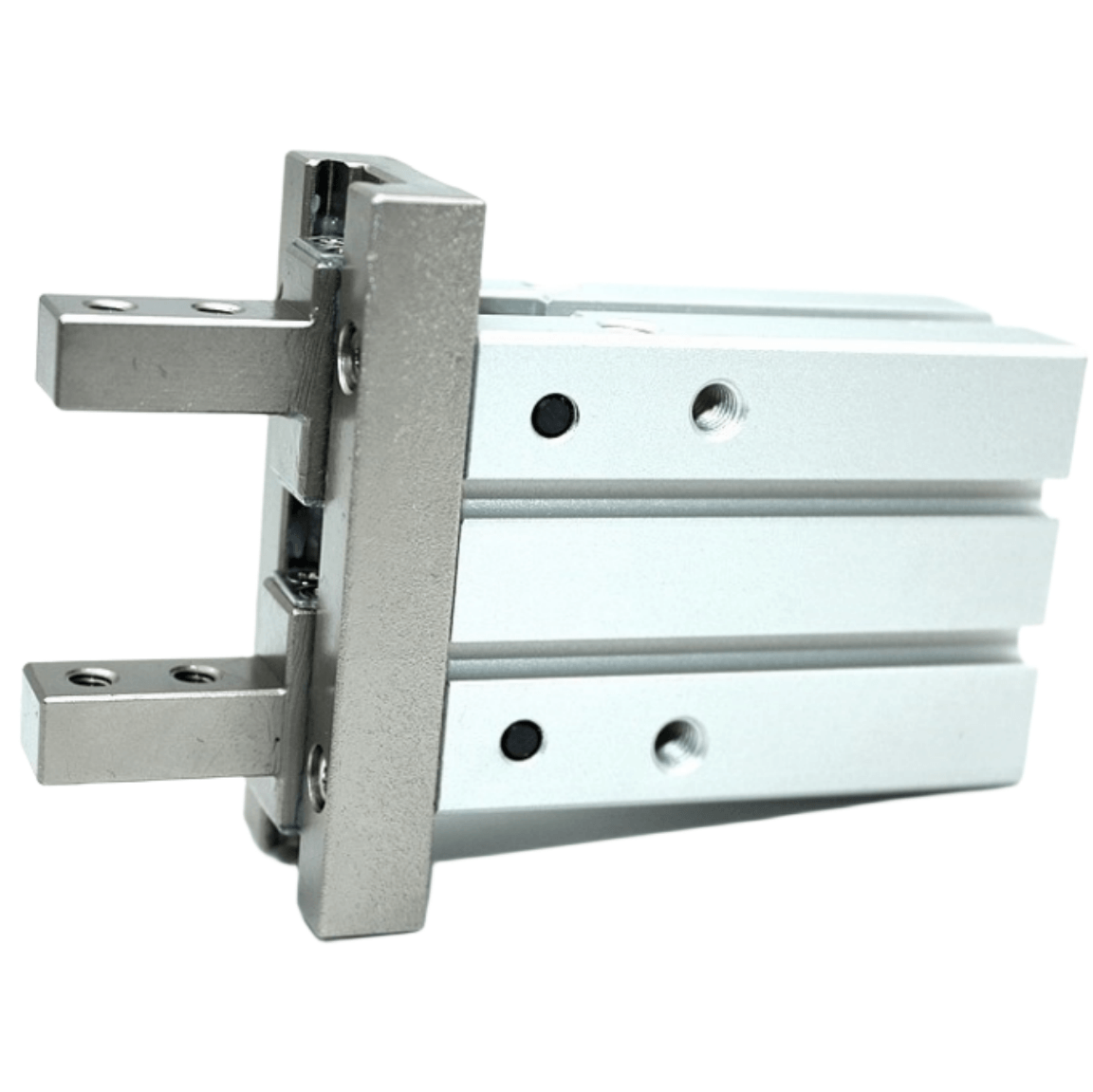

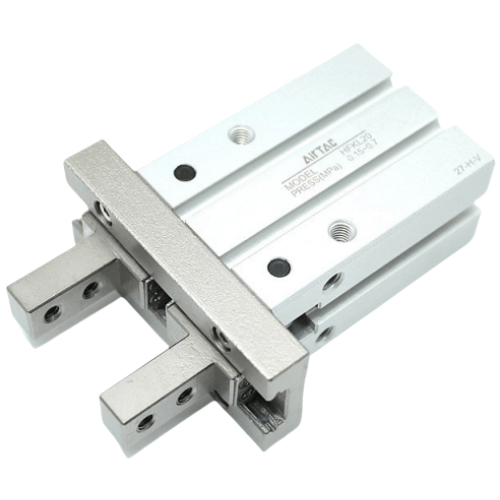

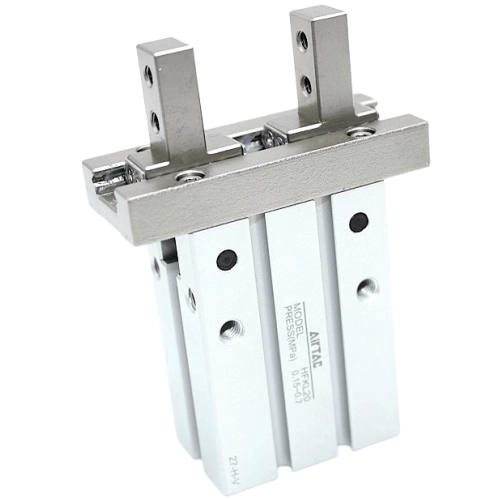

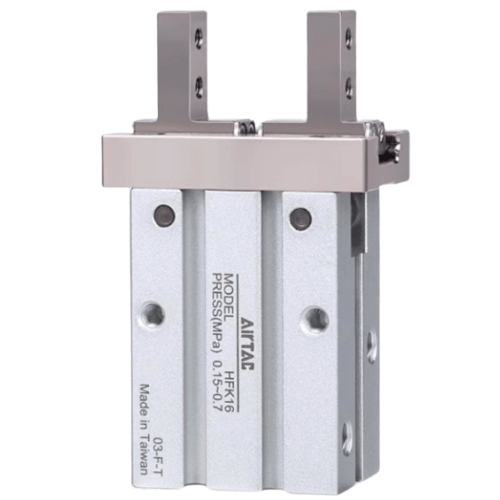

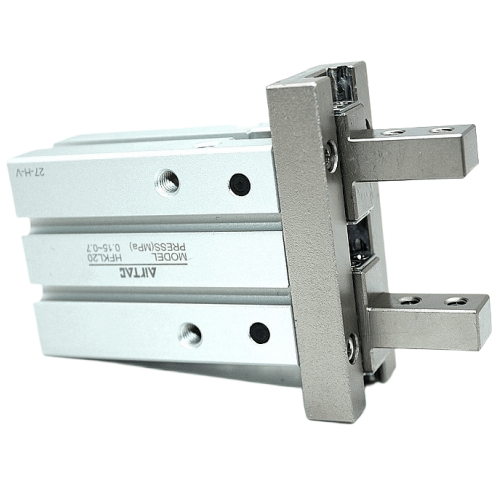

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL10F
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL10F Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL10F
- Type: Guided parallel gripper (double-acting)
- Gripping force: 10N @ 0.5MPa
- Stroke per jaw: 5mm (Standard), customizable 2-20mm
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Port size: M5 (1/8" NPT optional)
- Body material: Anodized aluminum alloy
- Slide rail material: Stainless steel (SUS304)
- Temperature range: -10℃ to 80℃
- Protection rating: IP54
- Weight: 0.25kg
- Dimensions: 76mm(L) × 34mm(W) × 25mm(H)
- Mounting pattern: 30mm spaced M4 threaded holes
Precision-guided parallel gripper with hardened steel rails for zero-backlash operation. Features dual piston chambers for symmetrical force distribution and integrated T-slot for modular tooling attachment. Optimized for high-cycle applications requiring micron-level repeatability. Compatible with vacuum suction cup adapters.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Micro-motor shaft handling systems
- 3C product inspection stations
- Optical lens assembly automation
Maintenance tip:
Apply lithium-based grease to guide rails every 50,000 cycles.
Use dry air (dew point -20℃ below ambient) to prevent internal icing.
Alignment shims recommended when mounting to <3μm surface flatness.
| Property | Property Value |
|---|---|
| sku | HFSKL10F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
