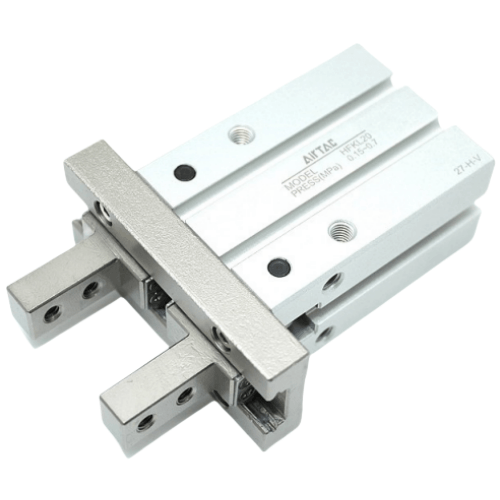

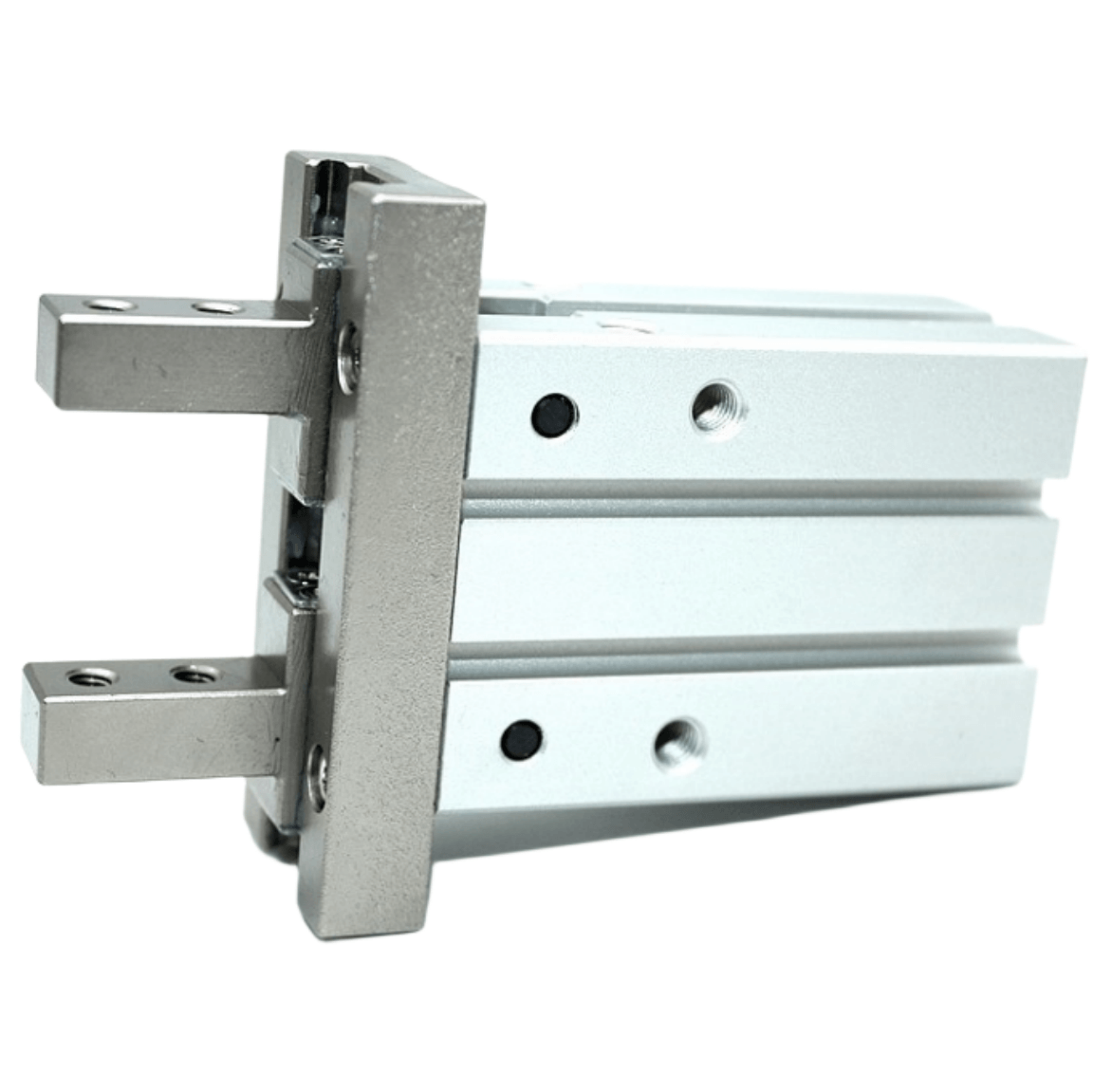

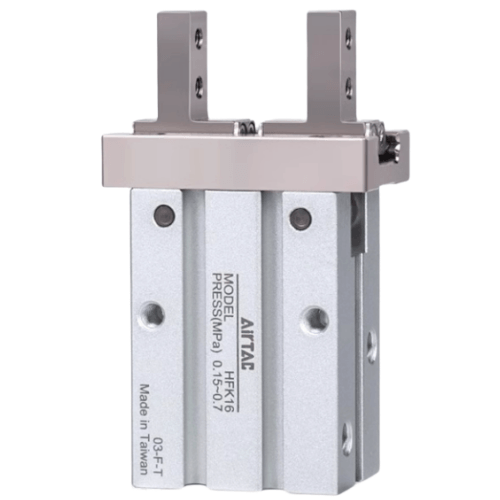

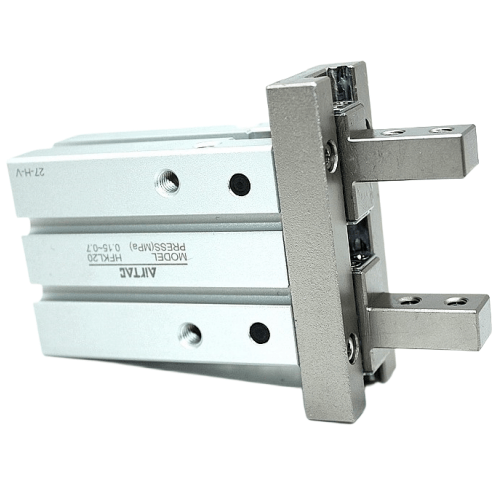

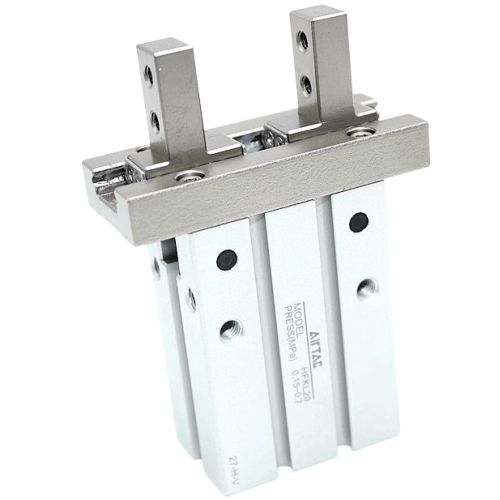

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL16
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL16 Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL16
- Type: Guided parallel gripper (double-acting)
- Gripping force: 38N (at 0.5MPa)
- Stroke per jaw: 8mm
- Operating pressure: 0.1-0.7 MPa
- Guide rail type: Precision T-slot linear guide
- Port size: M5 (1/8")
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.02mm
- Max operating speed: 300mm/s
- Weight: 0.45kg
- Dimensions: 120mm(L) × 48mm(W) × 30mm(H)
- Protection rating: IP54
High-precision guided gripper with integrated linear guides for smooth parallel motion. Features zero-backlash design and symmetrical force distribution, ideal for delicate part handling. The T-slot rail system ensures rigid guidance even under side loads. Compatible with ISO 9400-1 mounting standards.
- PCB component insertion machines
- Automated pharmaceutical blister packaging
- Watch movement assembly systems
- Precision bearing handling in automotive lines
- 3C product testing equipment
Operation tip:
For optimal performance, use filtered air (5-50μm) with lubricator (ISO VG32 oil).
Adjust gripping force via pressure regulator to prevent part deformation.
Regular rail lubrication interval: 500km travel distance.
| Property | Property Value |
|---|---|
| sku | HFSKL16 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
