Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL16B
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL

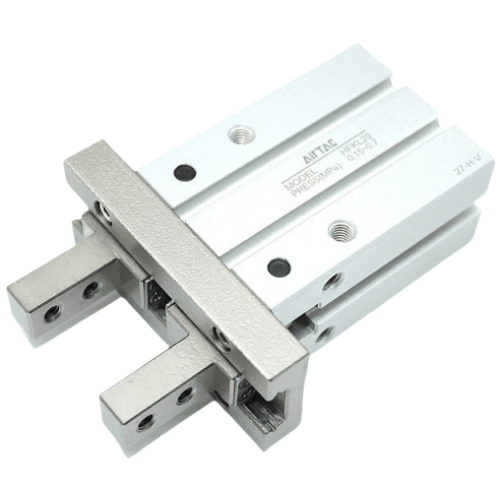

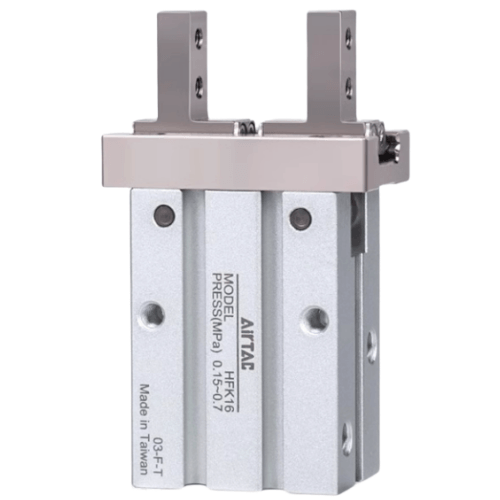

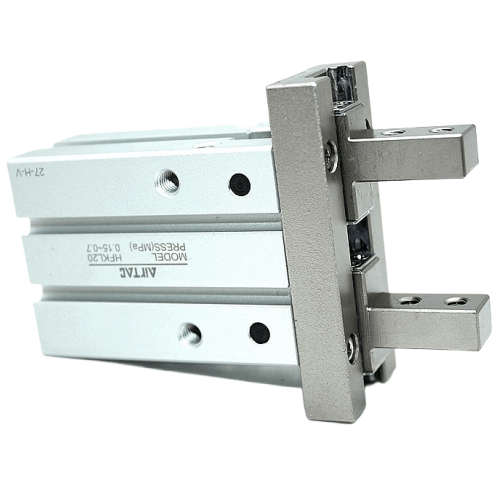

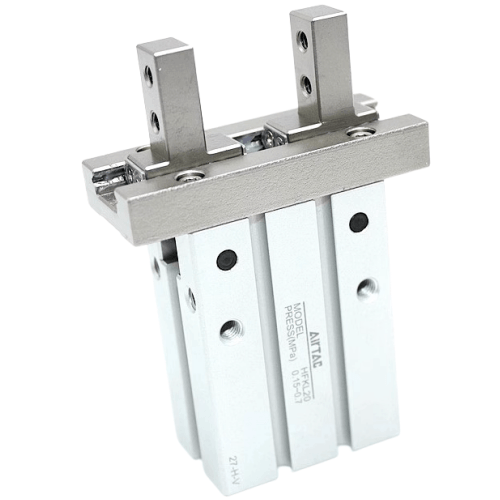

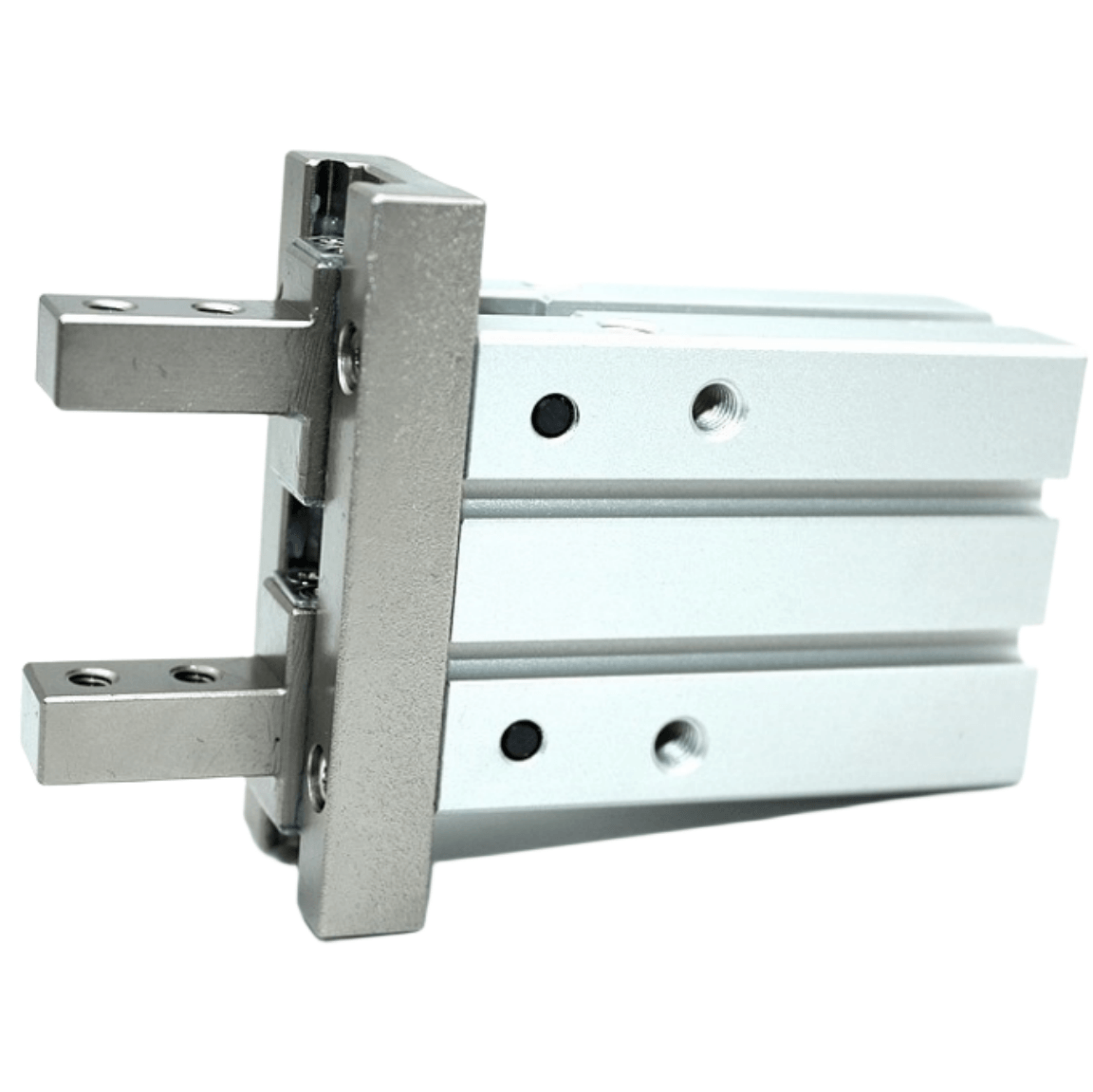

AirTAC HFSKL16B Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL16B
- Type: Guided parallel gripper (dual-rail structure)
- Bore size: Ø16mm
- Stroke range: 5-30mm (customizable increments)
- Operating pressure: 0.05-0.7 MPa
- Temperature range: -10℃ to 70℃
- Repeat accuracy: ±0.01mm
- Guide rail type: Precision linear ball bearings
- Port size: M5×0.8 (1/8" NPT optional)
- Buffer type: Adjustable pneumatic cushioning
- Seal material: NBR (Nitrile) with wear-resistant coating
- Weight: 0.48kg ±2%
- Dimensions: 125mm(L) × 34mm(W) × 34mm(H)
- Mounting pattern: ISO 9409-1 standard
- Max gripping force: 38N @0.5MPa
- Air consumption: 3.5cm³/mm of stroke
- Surface treatment: Black anodized aluminum body
High-precision parallel gripper featuring dual hardened steel guide rails for exceptional lateral stiffness and minimal deflection during high-speed operations. The optimized flow path design enables 25% faster response time compared to standard models. Includes built-in T-slot mounting channels for sensor integration.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Robotic bin-picking with <1mm tolerance requirements
- Micro-motor assembly lines
- Optical lens handling systems
- Automated test equipment (ATE) fixturing
Installation note:
Maintain rail parallelism within 0.02mm during mounting. Apply light machine oil (ISO VG32)
to guide rods weekly in high-cycle applications (>500k cycles/day). Avoid side-load forces
exceeding 15N to prevent rail deformation.
| Property | Property Value |
|---|---|
| sku | HFSKL16B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
