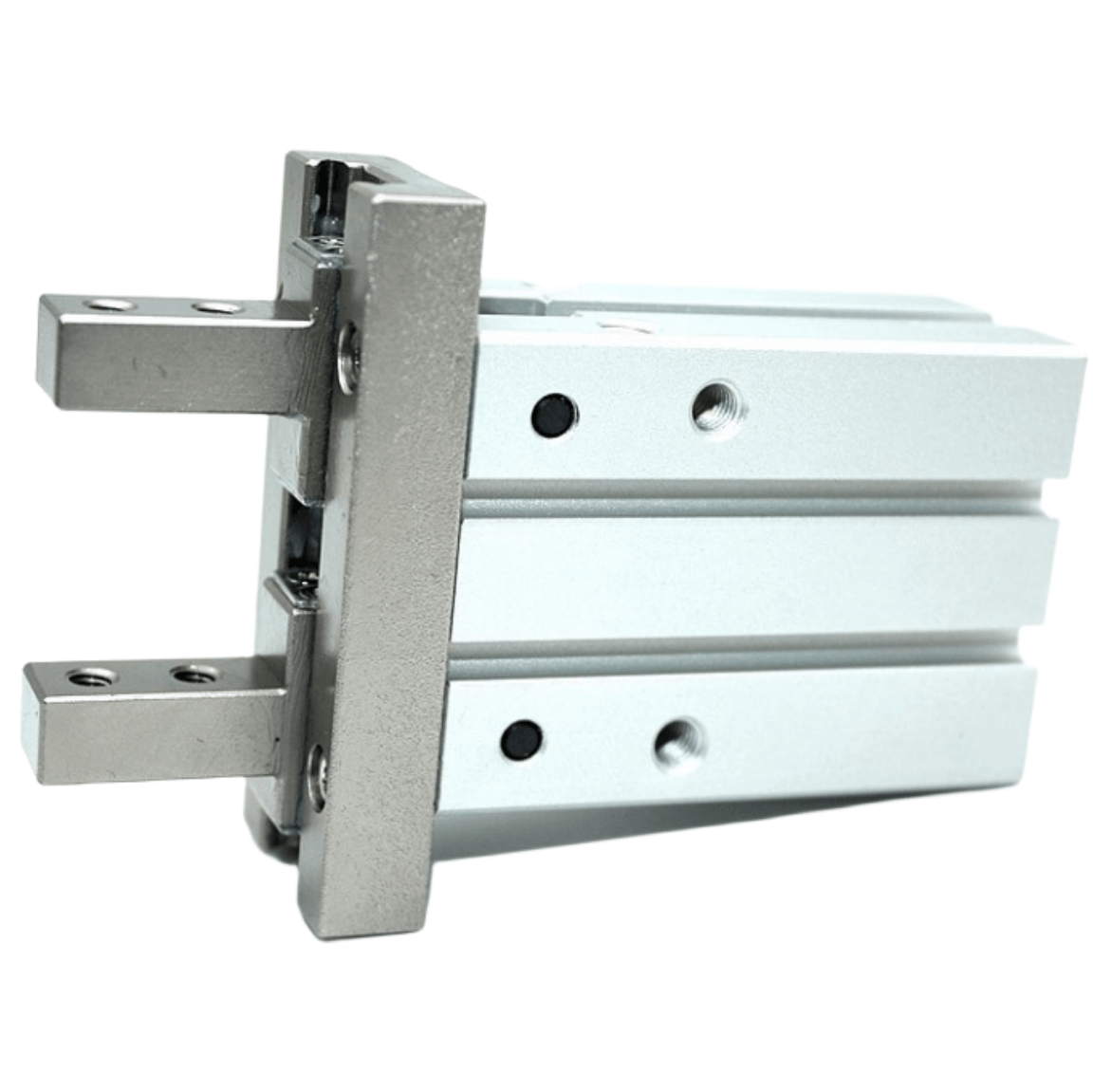

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL16F
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL16F Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL16F
- Type: Guided parallel gripper (double-acting)
- Bore size: Φ16mm
- Stroke options: 10mm/15mm/20mm/25mm/30mm
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.05mm
- Temperature range: -10℃ to 70℃
- Seal material: NBR (Nitrile rubber)
- Port size: M5×0.8 (standard) or 1/8" NPT optional
- Speed control: Built-in adjustable cushioning
- Mounting: Multiple side/top/bottom mounting holes (M4 thread)
- Cleanroom compatible: ISO Class 3 compliant (optional)
- Protection rating: IP54 (standard), IP67 (optional)
- Weight: 0.52kg (with 20mm stroke)
- Dimensions (L×W×H): 122mm × 50mm × 38mm (20mm stroke version)
Precision parallel gripper featuring synchronized dual-piston actuation and hardened steel guide rails, delivering exceptional centering accuracy (±0.02mm typical). The modular design allows stroke customization and tooling plate integration. Anodized aluminum body with wear-resistant PTFE coating ensures durability in harsh environments.
- High-speed PCB component insertion systems
- Pharmaceutical blister packaging handling
- Precision bearing assembly automation
- Semiconductor wafer transfer robots
- Food-grade packaging with optional stainless steel version
Operational guidance:
Maintain 0.3-0.5 MPa lubrication pressure for optimal bearing life.
Use guided mounting surfaces (flatness ≤0.01mm) to prevent binding.
Cycle rate ≤3Hz for continuous operation. Compatible with ISO 6432 mounts.
| Property | Property Value |
|---|---|
| sku | HFSKL16F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
