Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL16N
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL

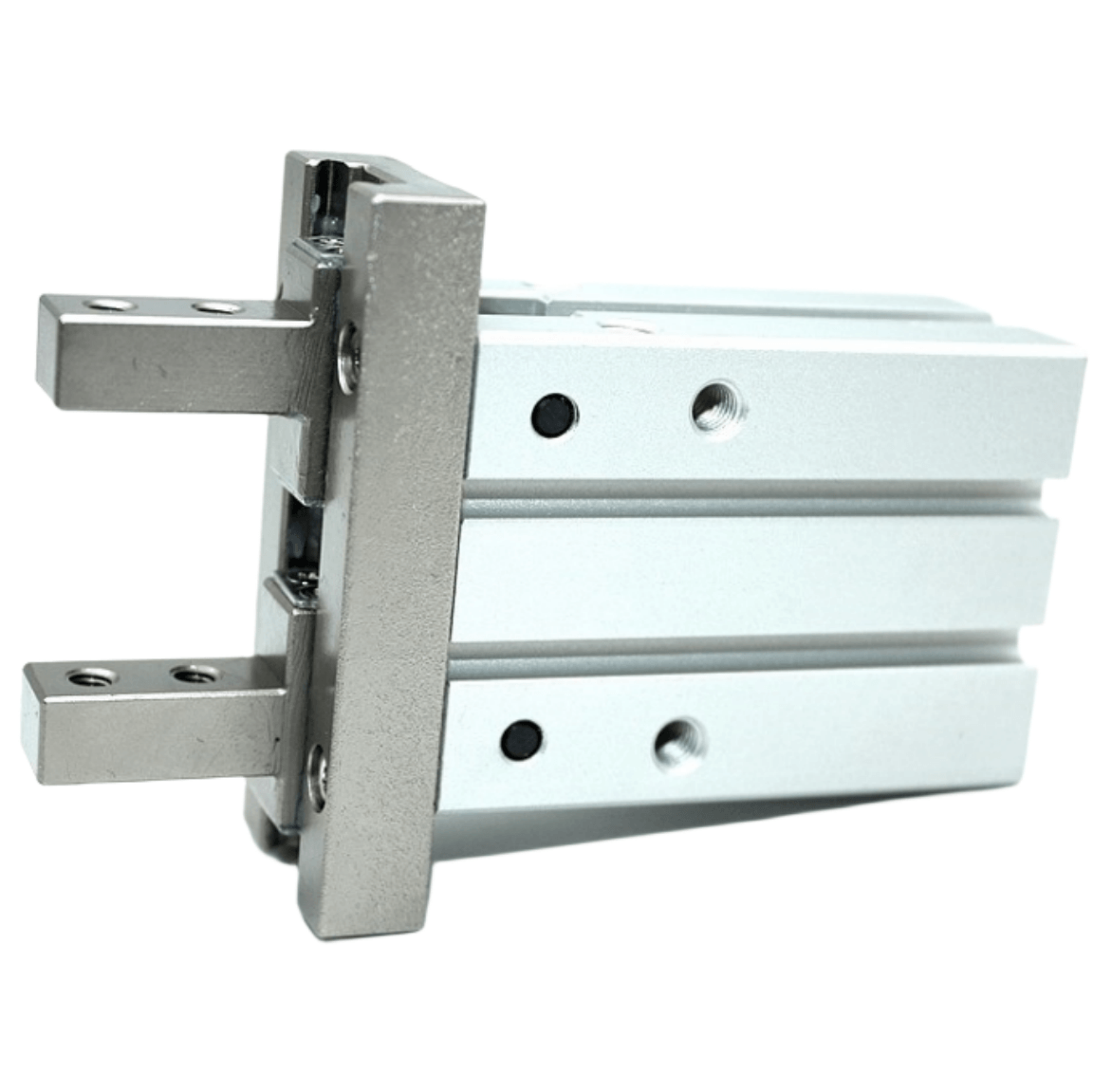

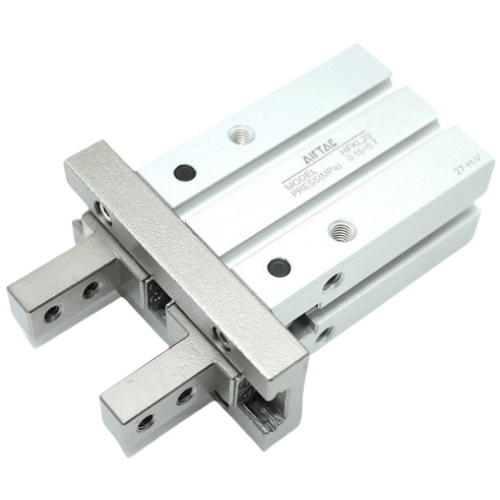

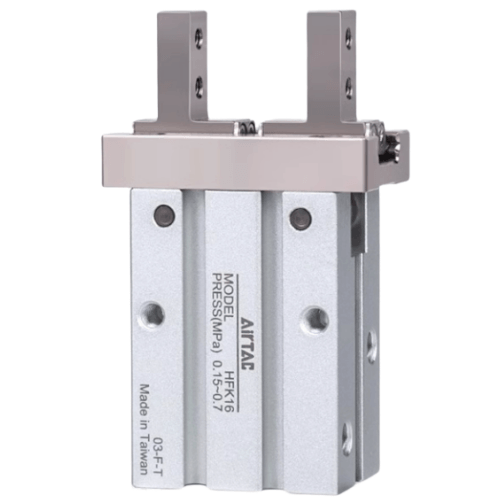

AirTAC HFSKL16N Rail-Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL16N
- Type: Rail-guided parallel gripper (double-acting)
- Gripping force: 16N @ 0.5MPa
- Stroke per jaw: 0-8mm (adjustable)
- Operating pressure: 0.1-0.7 MPa
- Rail type: Dual linear guide with 4 precision rods
- Port size: M5 (1/8")
- Repeatability: ±0.02mm
- Material: Aluminum alloy body with hard anodized surface
- Temperature range: -10℃ to 80℃
- Protection rating: IP40
- Weight: 0.28kg
- Dimensions: 90mm(L) × 32mm(W) × 22mm(H)
- Seal material: NBR rubber
- Max operating speed: 200mm/s
- Mounting pattern: 24mm × 24mm (ISO 9409-1 compatible)
Precision parallel gripper featuring synchronized jaw movement through dual linear guides, ideal for high-speed pick-and-place operations requiring micron-level repeatability. The hardened guide rods and preloaded bearings ensure minimal play during lateral force applications (up to 3N lateral load capacity). Includes adjustable mechanical stoppers for stroke customization.
- PCB component insertion machines
- Medical device assembly lines
- Precision gearbox part handling
- Automated optical inspection (AOI) systems
- Battery cell sorting in EV manufacturing
Operation tip:
For optimal performance, use filtered dry air (5-50μm filter) and lubricate guide rods monthly with ISO VG32 hydraulic oil.
Avoid side impacts exceeding 0.5J during operation.
- Stroke adjustment: Loosen M3 set screw to modify jaw travel
- Optional accessories: Vacuum cup adapters, force feedback sensors
- Compatible with ISO-standard robot flanges
