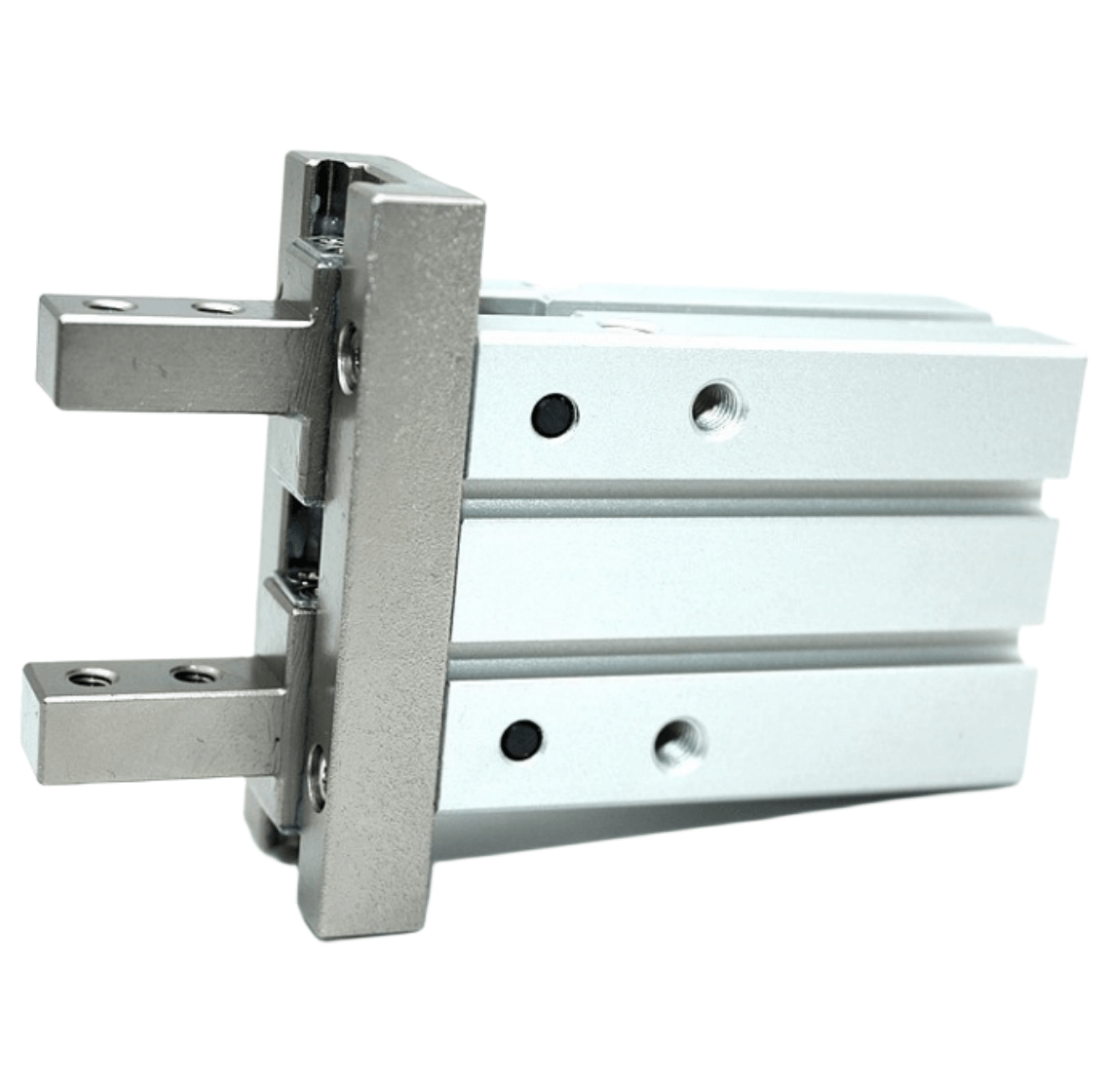

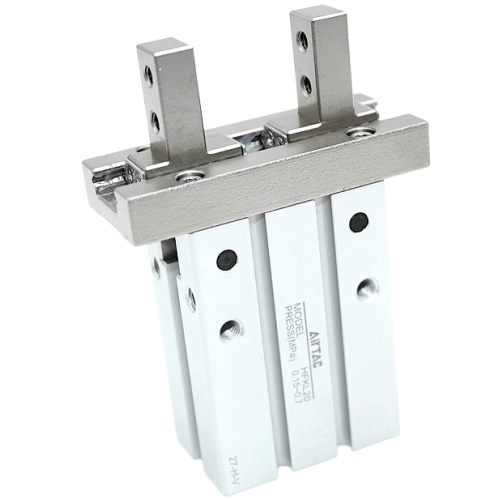

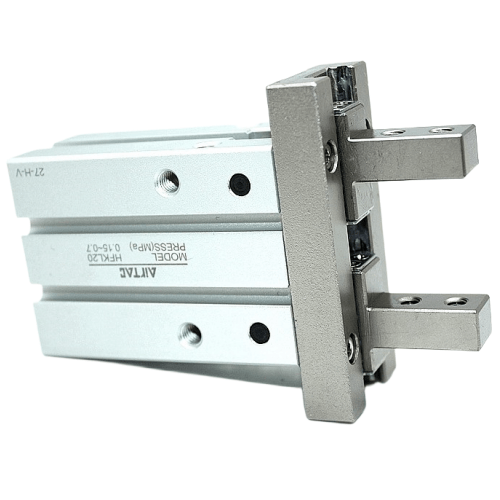

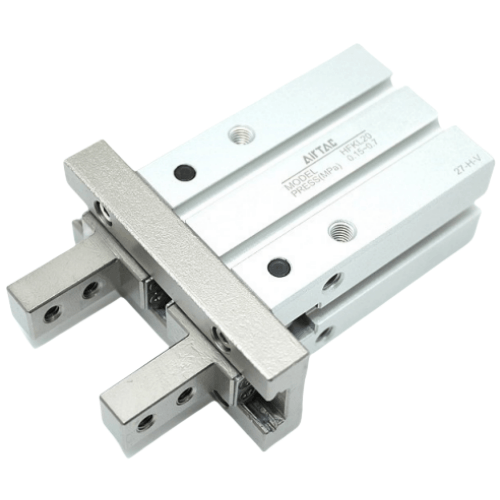

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL20
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL20 Dual-Guide Rail Parallel Pneumatic Gripper Specifications
- Model: HFSKL20
- Type: Dual-guide rail parallel type
- Gripping force: 20N (adjustable via air pressure)
- Stroke options: 5mm/10mm/15mm (customizable)
- Operating pressure: 0.1–0.7 MPa
- Guide rail type: Dual linear ball bearings
- Port size: M5x0.8 (standard), G1/8 optional
- Material: Aluminum alloy with hard anodized surface treatment
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 70℃
- Repeat accuracy: ±0.05mm
- Protection rating: IP40
- Weight: 0.52kg (without accessories)
- Dimensions: 150mm(L) × 65mm(W) × 45mm(H)
High-precision parallel gripper featuring dual hardened steel guide rails and ball bearing slides for smooth linear motion. The symmetrical design ensures balanced gripping force distribution, with integrated T-slot mounting points for flexible installation. Requires dry compressed air (dew point -20℃ below ambient) with 5μm filtration.
- Robotic assembly of precision components
- PCB handling in electronics manufacturing
- Automated packaging line product positioning
- Machine tool workpiece clamping
- Laboratory sample handling systems
Operation guidance:
Maintain 0.3-0.5 MPa initial pressure for delicate objects.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
Avoid side-impact loads exceeding 30N during operation.
| Property | Property Value |
|---|---|
| sku | HFSKL20 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
