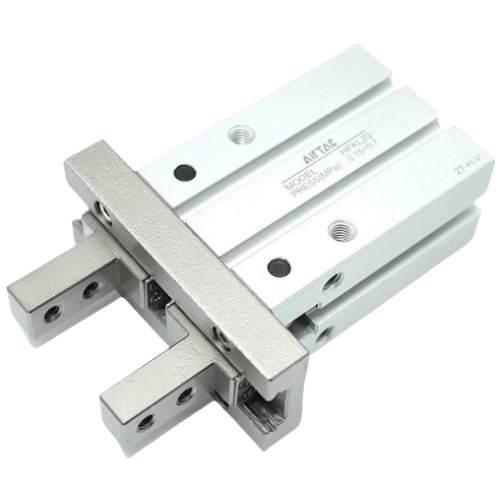

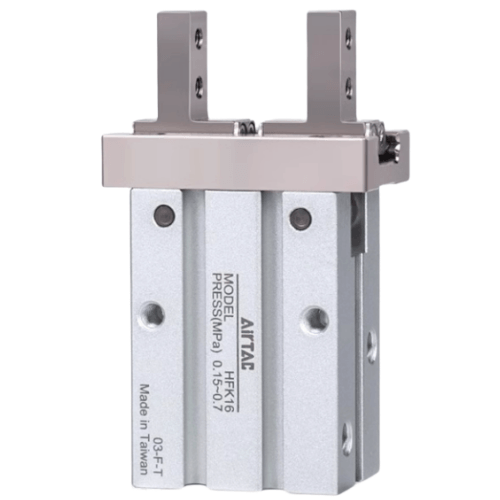

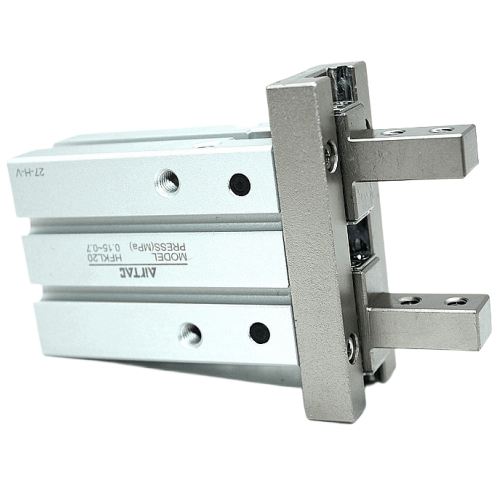

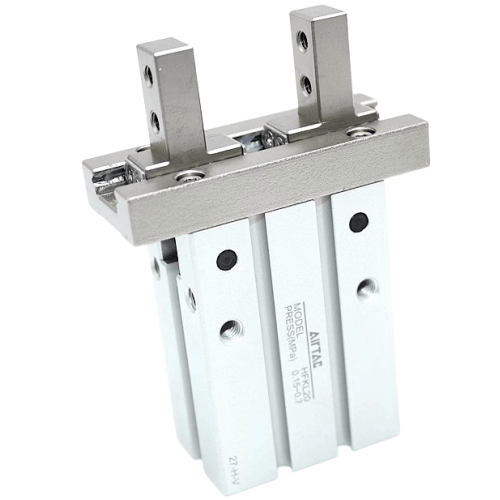

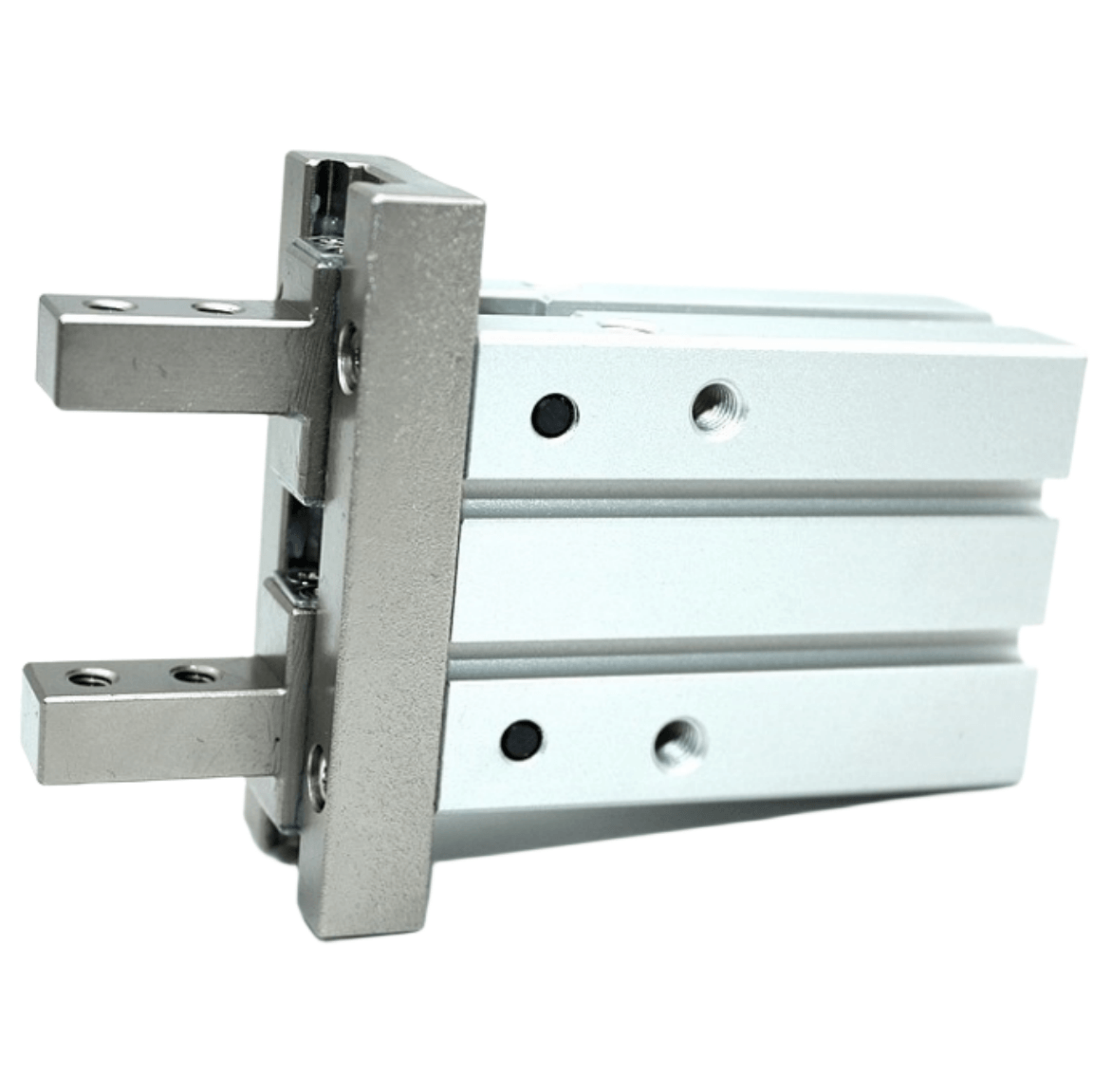

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL20B
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL20B Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL20B
- Type: Guided parallel gripper (dual-action)
- Bore size: 20mm
- Operating pressure: 0.1-0.7 MPa
- Max grip force: 58N @0.5MPa
- Stroke per jaw: 8mm (standard), customizable up to 20mm
- Guide rail type: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Port size: M5x0.8 (dual ports for push/pull action)
- Weight: 0.48kg (including rails)
- Dimensions: 100mm(L) × 40mm(W) × 50mm(H)
- Mounting pattern: 30mm inter-hole spacing (ISO 6432 compatible)
- Max operating speed: 500mm/s
- IP rating: IP54 (standard sealing)
Precision-engineered parallel gripper with integrated linear guides, delivering exceptional alignment stability for delicate part handling. Features anti-rotation design with hardened steel rails and preloaded ball bearings, eliminating lateral play during high-speed operations. Optimized flow channels enable rapid jaw response (≤0.1s @0.5MPa).
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Watch movement assembly systems
- Micro-drone motor handling
- Optical lens positioning
Installation protocol:
Use precision shims (≤0.02mm tolerance) during rail mounting.
Lubricate guide rails with ISO VG32 hydraulic oil monthly.
Maintain 0.3-0.5mm jaw clearance from workpiece for optimal grip force distribution.
- Custom jaw adapters (V-groove, vacuum cup mounts)
- Magnetic position sensors (SMC D-M9N compatible)
- Heat-resistant variants available (150℃ max)
| Property | Property Value |
|---|---|
| sku | HFSKL20B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
