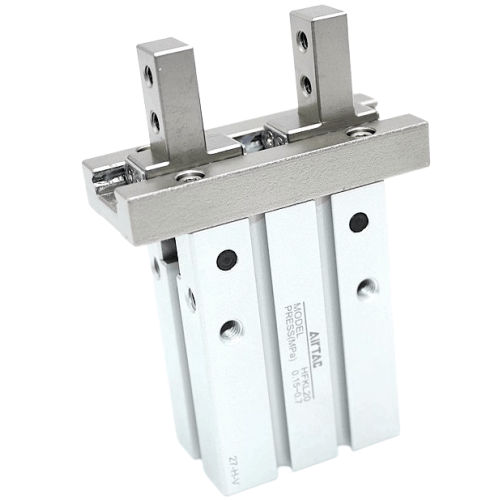

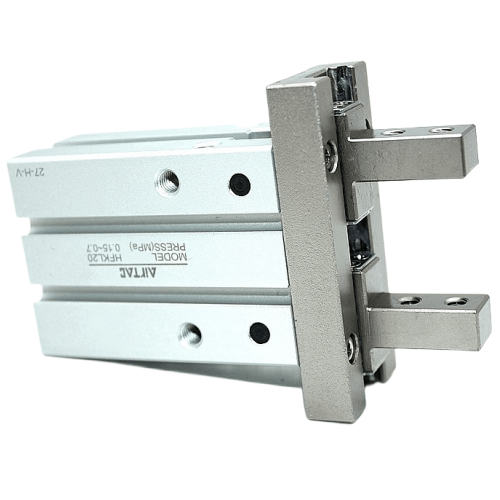

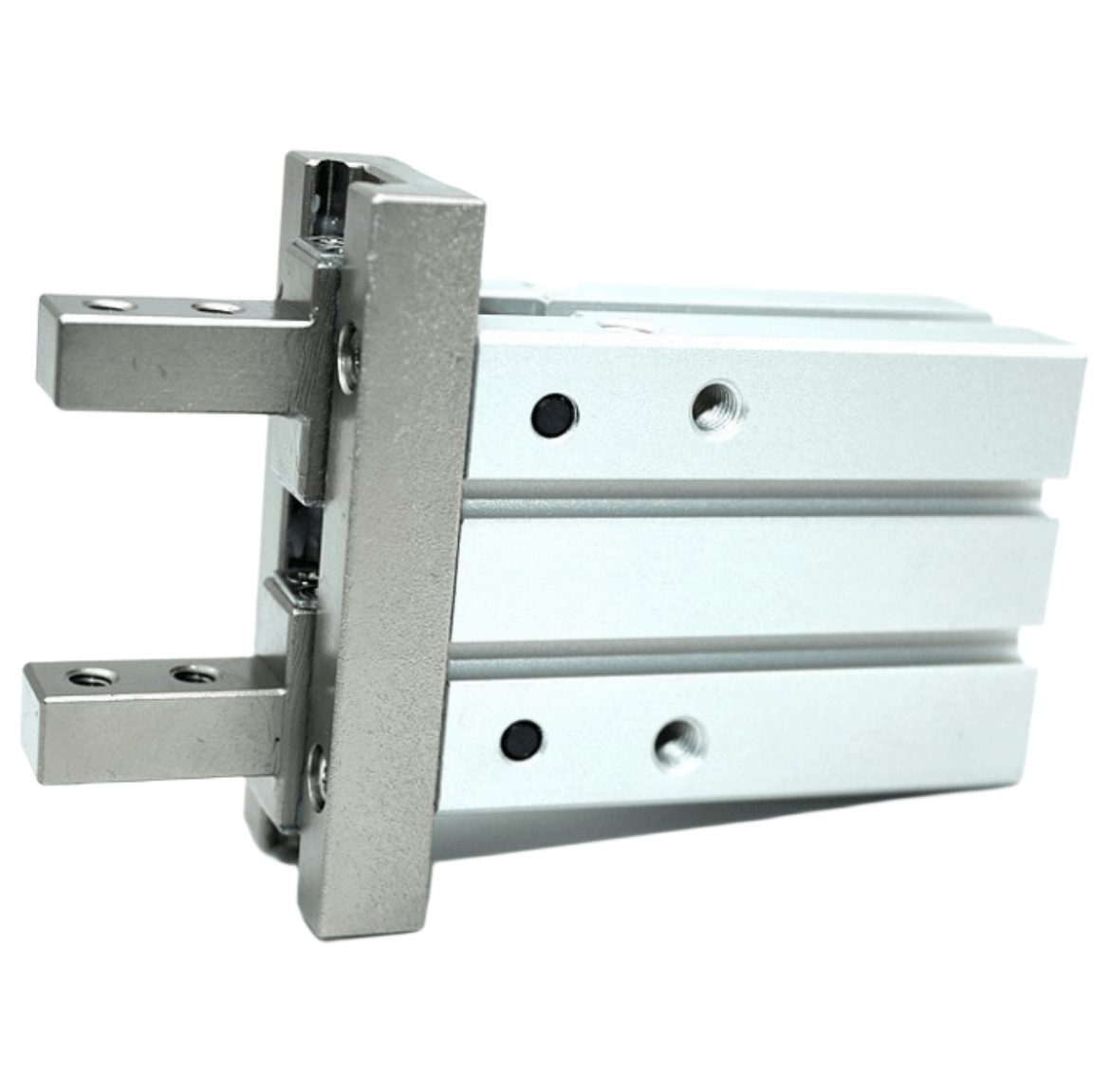

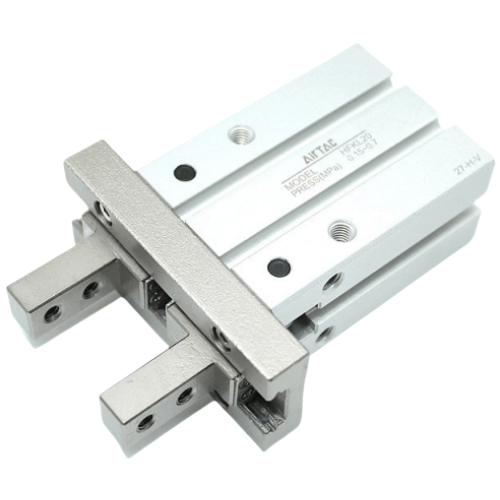

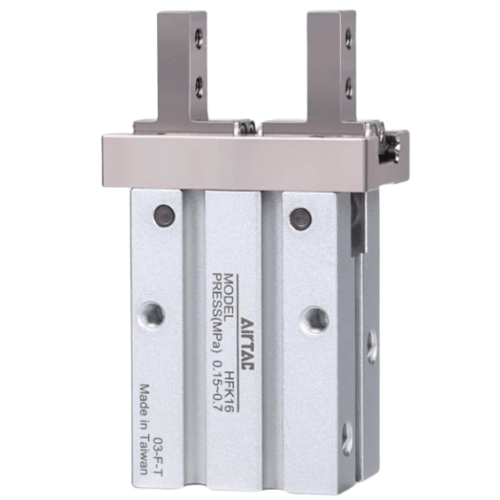

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL20F
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL20F Guided Parallel Gripper Specifications
- Model: HFSKL20F
- Type: Guided parallel gripper (double-acting)
- Bore size: Ø20mm
- Stroke per jaw: 8mm (standard)
- Operating pressure: 0.2-0.7 MPa (2-7 bar)
- Guide mechanism: Dual linear ball bearings
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Repeat accuracy: ±0.02mm
- Max gripping force: 110N @ 0.5MPa
- Material: Aluminum alloy body, hardened steel guide rails
- Seal type: NBR seals
- Temperature range: -10℃ to 80℃
- Weight: 0.82kg
- Dimensions: 160mm(L) × 62mm(W) × 45mm(H)
- Protection rating: IP40 (IP67 optional with special seals)
- Max operating speed: 500mm/s
- Mounting pattern: 40mm inter-hole spacing (M4 threaded holes)
Precision guided gripper with dual linear ball bearings ensuring parallel jaw movement within ±0.05mm deviation. Features anti-corrosion hard anodized surface and zero-backlash clamping suitable for delicate object handling. Requires 5μm filtered air with 1-2 drops of ISO VG32 oil per 10 cycles.
- PCB board handling in electronics assembly
- Precision gear positioning in watch manufacturing
- Medical device component assembly
- Automated sorting of fragile glass vials
- Robotic pick-and-place for semiconductor wafers
Operation tip:
Maintain 0.05-0.15mm clearance between jaws and workpiece surfaces
during initial setup to compensate for manufacturing tolerances.
Lubricate guide rails every 50,000 cycles using lithium soap grease.
| Property | Property Value |
|---|---|
| sku | HFSKL20F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
