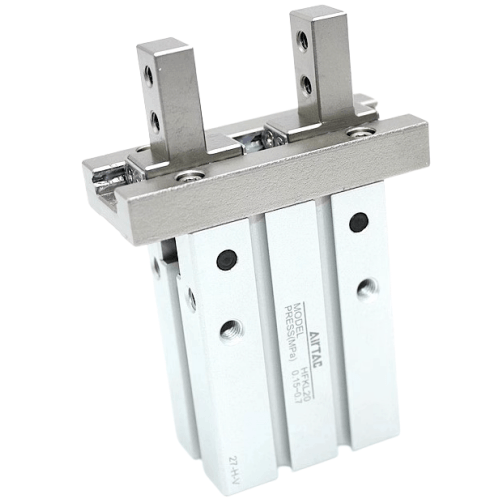

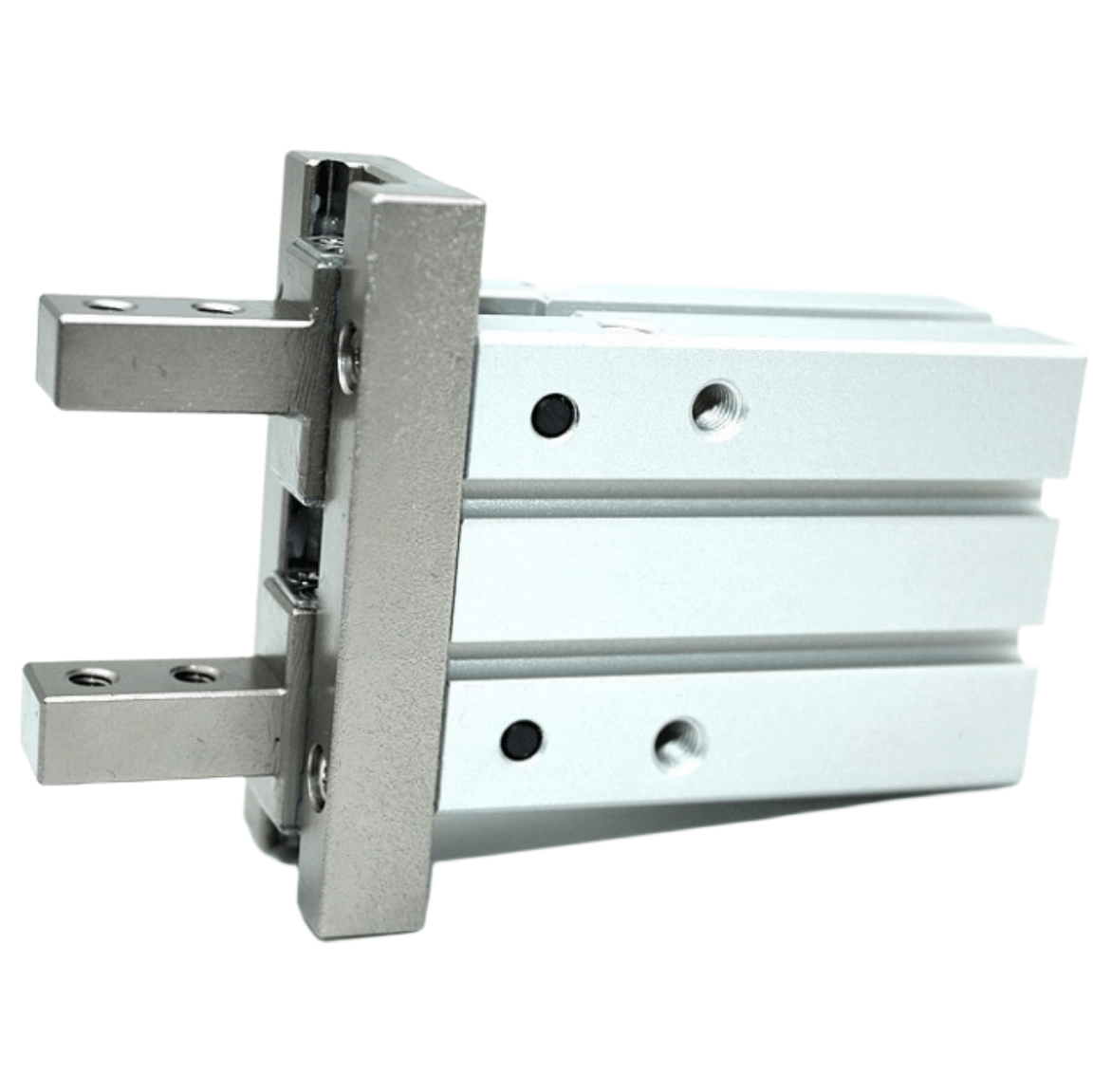

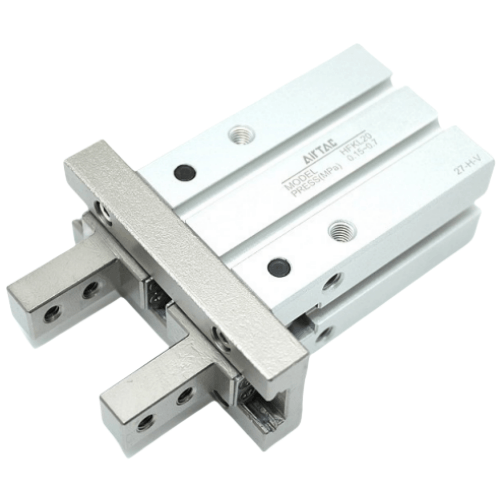

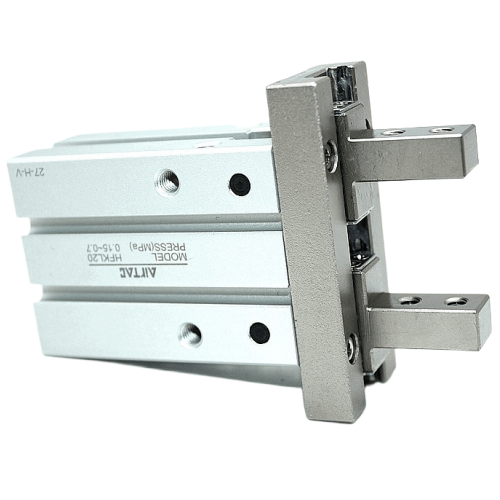

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL20N
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL20N Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL20N
- Type: Parallel motion with integrated guide rails (double-acting)
- Gripping force: 20N (adjustable via pressure regulation)
- Stroke per jaw: 10mm standard (5mm/15mm options available)
- Bore size: Ø20mm cylinder
- Operating pressure: 0.1-0.7 MPa
- Rail type: Precision ground stainless steel linear guides
- Repeat accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃
- Protection rating: IP67 (wipers included)
- Seal material: Polyurethane (NBR optional)
- Weight: 680g ±5%
- Dimensions: 150mm(L) × 42mm(W) × 36mm(H)
- Mounting pattern: 4×M4 threaded holes (8mm spacing)
- Max operating speed: 500mm/s
- Air port: M5x0.8 (standard) with auto-extract fittings
Precision-guided parallel gripper featuring zero backlash operation and wear compensation mechanism. The hardened steel rails provide exceptional lateral stiffness, making it ideal for high-accuracy pick-and-place operations. Integrated T-slot mounting allows direct tooling plate attachment. Compatible with vacuum cups/magnetic adapters through accessory mounting holes.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Optical lens positioning systems
- Battery cell stacking automation
- Watch movement assembly stations
Operation tip:
For precision tasks, maintain air supply at 0.4-0.6 MPa and use 5μm filtered air.
Lubricate guide rails monthly with ISO VG32 hydraulic oil. Avoid side-loading beyond 15N.
- AGP-M4 series gripper pads
- ASNU-5 miniature pressure sensors
- Rail cover kit RCK-20 for food-grade applications
| Property | Property Value |
|---|---|
| sku | HFSKL20N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
