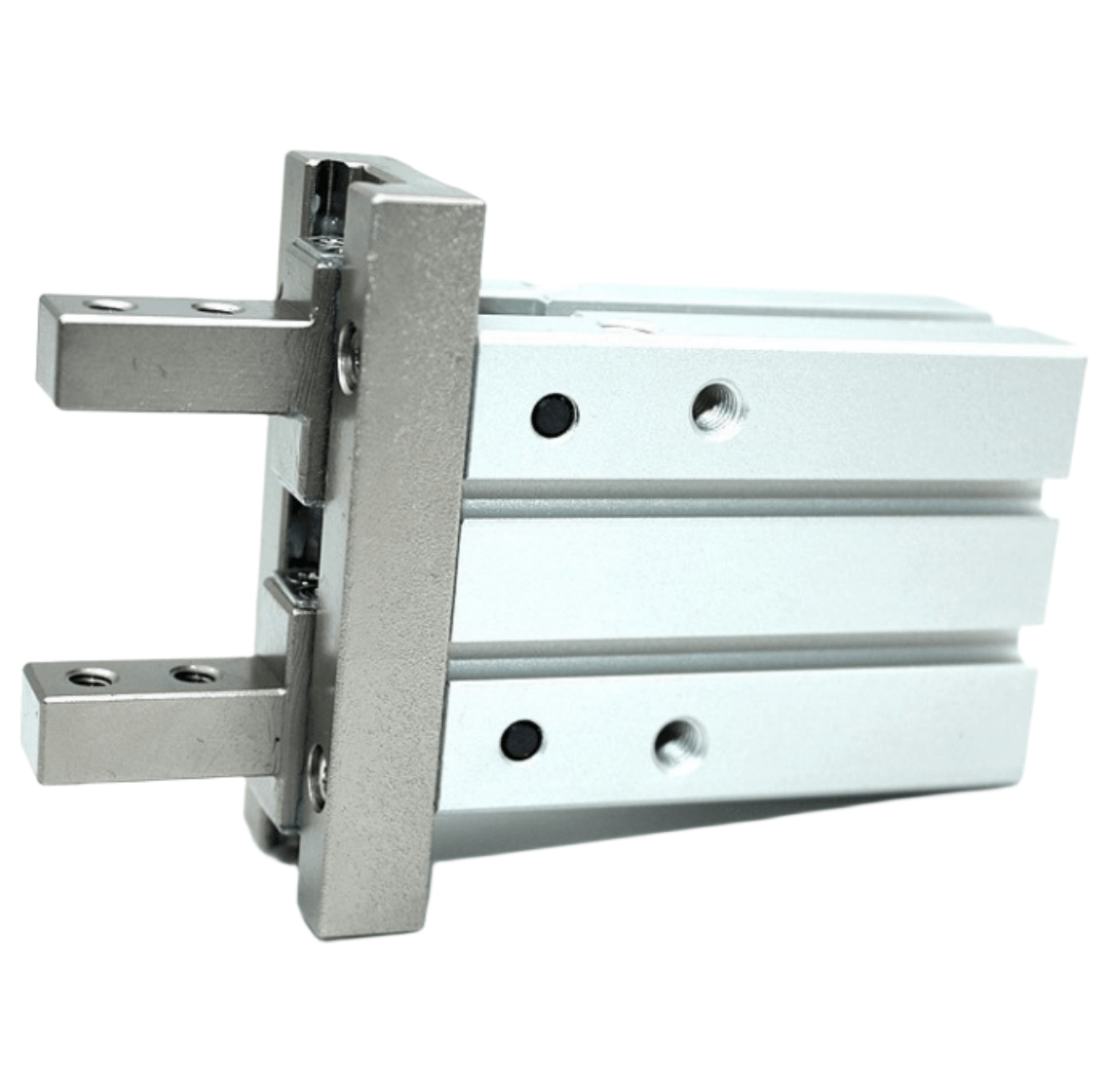

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL25
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL25 Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL25
- Type: Guided parallel gripper (double-acting)
- Bore size: Ø25mm
- Stroke per jaw: 8mm (standard), customizable up to 16mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5x0.8 (dual ports for push/pull action)
- Guide mechanism: Precision linear ball bearing rail
- Gripping force: 70-510N (pressure-dependent)
- Material: Aluminum alloy body, polyurethane seals
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.02mm
- Protection rating: IP54 (standard), IP67 optional
- Weight: 820g ±2%
- Dimensions: 148mm(L) × 58mm(W) × 45mm(H)
High-precision guided gripper featuring integrated rail system for vibration-free operation and enhanced lateral load capacity. The T-slot mounting surface (ISO standardized) allows modular tooling attachment, while dual piston chambers enable synchronized jaw movement. Includes wear compensation mechanism for extended service life.
- CNC machine tool loading/unloading systems
- Precision electronic component assembly
- Pharmaceutical blister packaging lines
- Robotic deburring stations
- Semiconductor wafer handling
- Automotive fuel injector assembly
Operational guidance:
Maintain 0.5-1μm filtered air supply with ISO VG32 lubricant.
For maximum grip stability, align workpiece center within ±0.5mm
of jaw midpoint. Regular rail lubrication interval: 500km travel
or 6 months (whichever comes first).
| Property | Property Value |
|---|---|
| sku | HFSKL25 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
