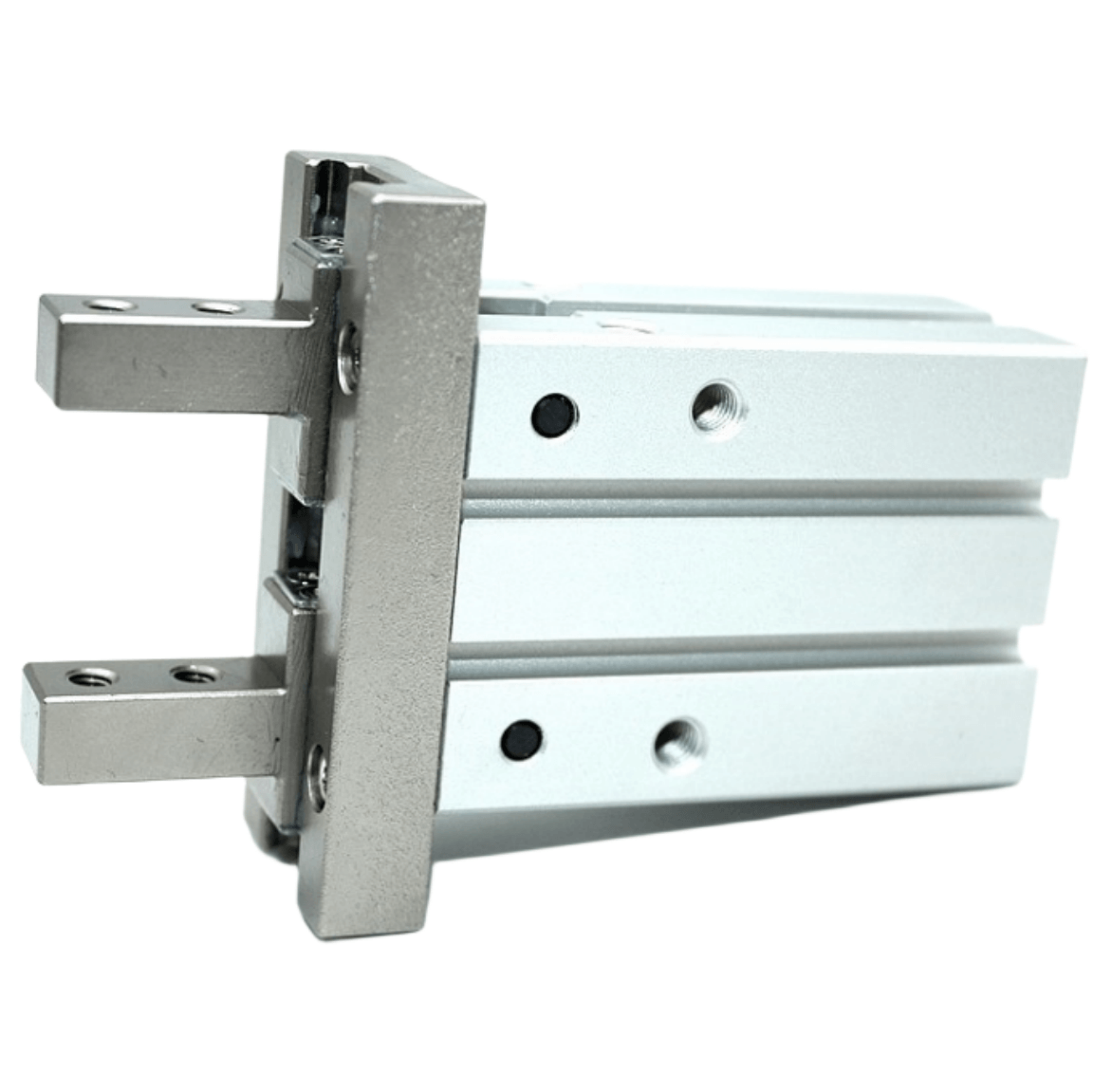

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL25B
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL25B Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL25B
- Type: Parallel guided gripper with linear rail mechanism
- Gripping force: 20-30N (adjustable via pressure regulation)
- Stroke per jaw: 0-25mm
- Operating pressure: 0.1-0.7 MPa
- Guide type: Dual linear ball bearing rails
- Port size: M5 (1/8")
- Repeat accuracy: ±0.02mm
- Body material: Anodized aluminum alloy
- Seal material: NBR/PU (optional)
- Temperature range: -10℃ to 80℃
- Protection rating: IP54
- Weight: 780g ±2%
- Dimensions: 146mm(L) × 50mm(W) × 40mm(H)
- Mounting pattern: 4×M4 threaded holes (6mm depth)
Precision parallel gripper featuring dual hardened steel guide rails with recirculating ball bearings for smooth linear motion. Incorporates wear-compensation mechanism and dust-resistant design. The T-slot mounting surface allows modular tooling attachment. Requires filtered lubricated air (ISO 8573-1 class 3.4.2).
- High-speed part sorting in assembly lines
- PCB handling in electronics manufacturing
- Precision component placement in watchmaking
- Medical device assembly with cleanroom compatibility
- Packaging machinery for fragile item gripping
Operation note:
For optimal performance, maintain 0.5-1.0 MPa operating pressure range.
Apply lithium-based grease to guide rails every 500,000 cycles. Avoid lateral
impact loads exceeding 50N during operation.
- MHZ2-16D magnetic sensor kit
- ASL6-02 adjustable stopper set
- GRF-05 finger mounting bracket
| Property | Property Value |
|---|---|
| sku | HFSKL25B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
