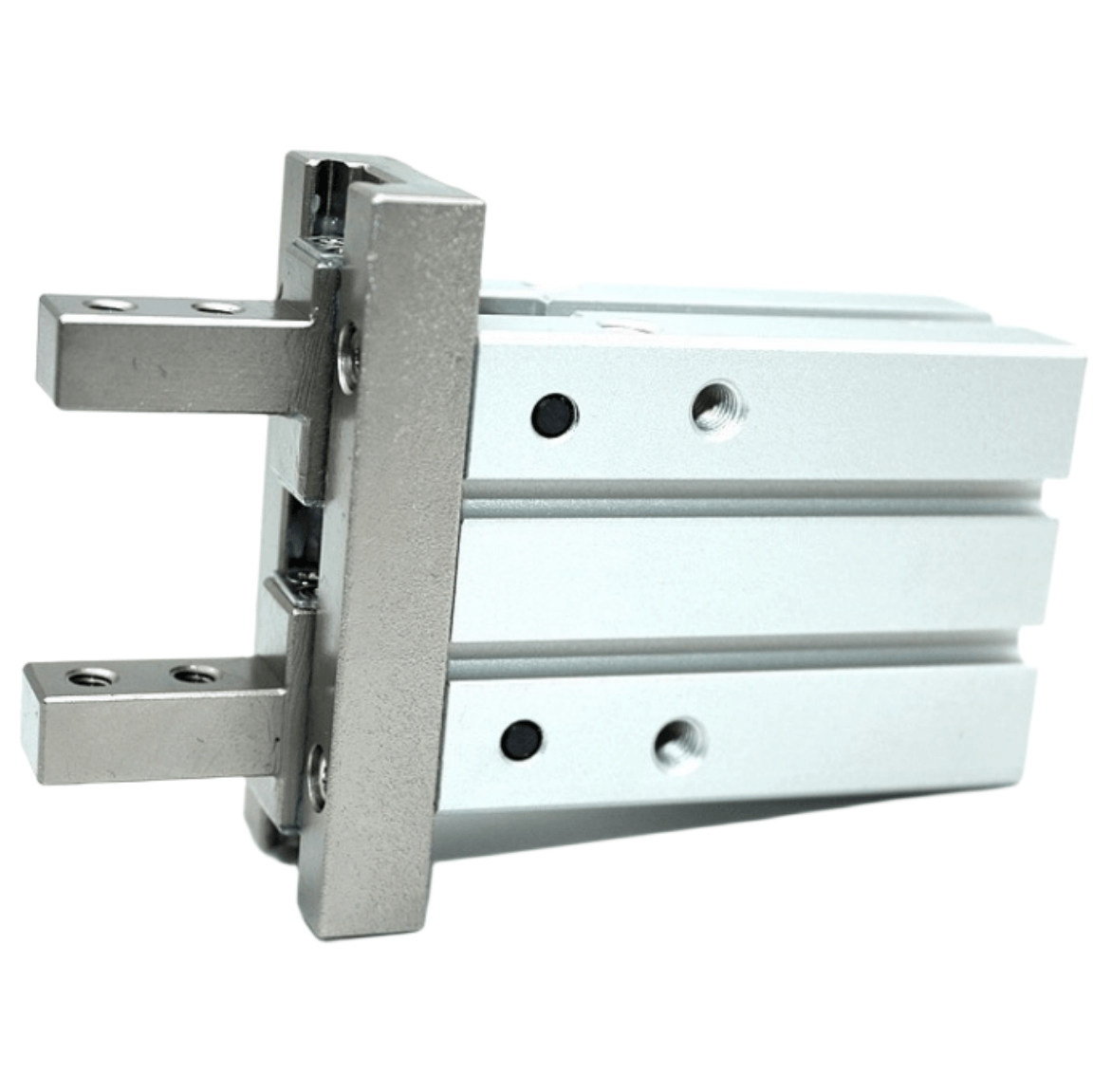

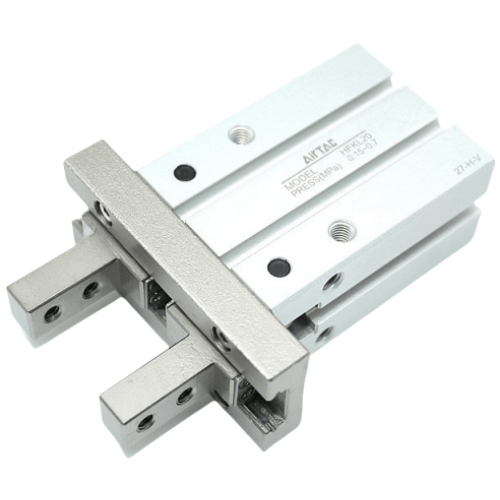

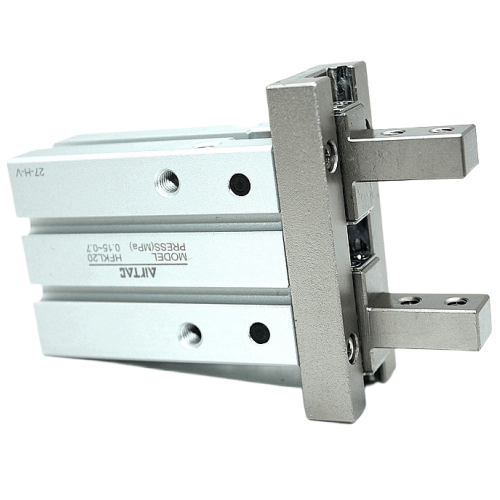

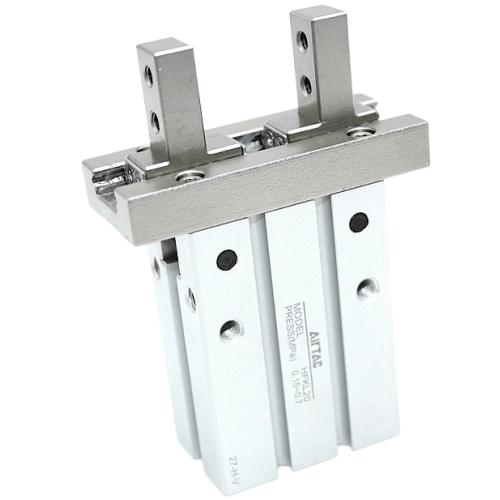

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL25F
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL25F Guided Parallel Gripper Technical Details
- Model: HFSKL25F (Guided Parallel Type)
- Guide rail type: Precision linear guide THK/SHS equivalent
- Gripping force: 40-60N (adjustable via pressure)
- Stroke per finger: 0-25mm
- Operating pressure: 0.1-0.7 MPa
- Port size: G1/8 (BSPP thread)
- Repeat accuracy: ±0.05mm
- Material: Aluminum alloy body with hard anodized surface
- Seal material: Heat-resistant NBR
- Temperature range: -20℃ to 80℃
- Protection rating: IP65 (dust/water jet resistant)
- Compatible rail lengths: 100-300mm (customizable)
- Weight: 1.2kg (excluding rail)
- Dimensions: 150mm(L) × 80mm(W) × 40mm(H) (body only)
Precision parallel gripper with integrated linear guides for ultra-stable workpiece handling. Features dual piston design with synchronized jaw movement and adjustable cushioning. The hardened steel guide rails provide 0.01mm class running accuracy, making it ideal for high-cycle precision assembly tasks. Requires 5μm filtered air with 1-3 drops of ISO VG32 oil per m³.
- PCB component insertion machines
- Automotive fuel injector assembly lines
- Pharmaceutical blister packaging systems
- Robotic bin picking stations (with vacuum cup integration)
- Optical lens polishing automation
Mounting advice:
Use M4×12mm SHCS for rail mounting with 0.8-1.2Nm torque.
Align master jaw within 0.1mm parallelism to prevent stick-slip.
- 0.4MPa: 80mm/s closing speed
- 0.6MPa: 120mm/s closing speed
- Max cycle rate: 200 cycles/min (with shock absorber)
| Property | Property Value |
|---|---|
| sku | HFSKL25F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
