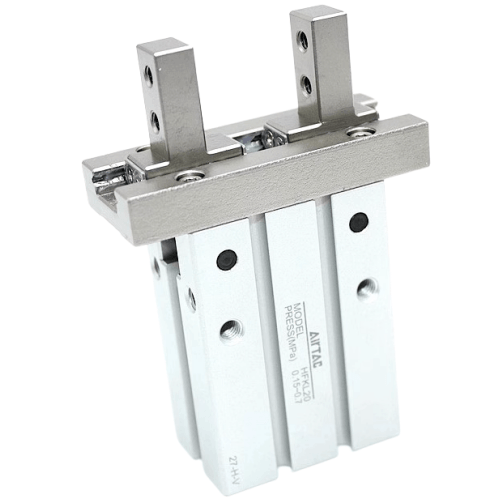

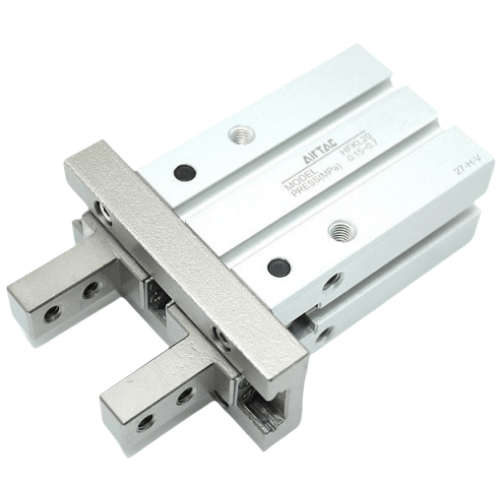

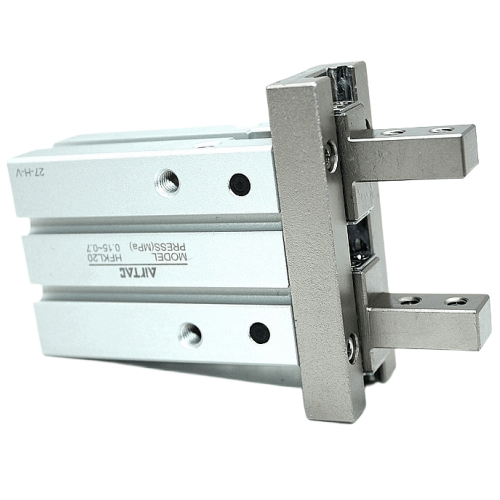

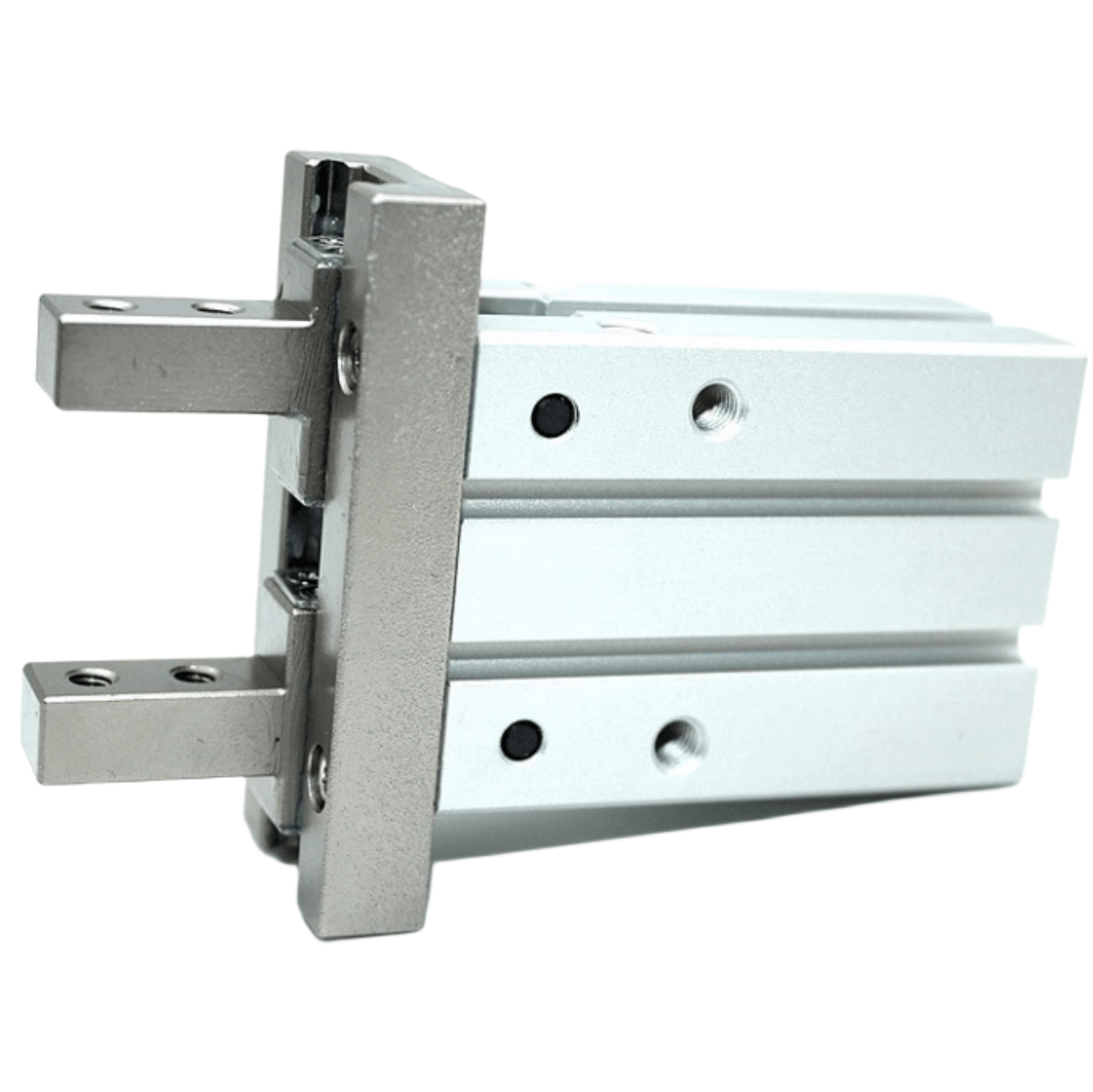

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL25N
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL25N Dual-Guide Rail Parallel Pneumatic Gripper Specifications
- Model: HFSKL25N
- Type: Parallel motion with integrated guide rail
- Gripping force: 25N (adjustable via pressure regulation)
- Guide rail type: Dual-guide linear motion system
- Stroke per jaw: 20mm (standard)
- Operating pressure: 0.1-0.7 MPa
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body with hard anodized surface
- Seal material: NBR (Nitrile rubber)
- Port size: M5x0.8 (dual ports for simultaneous actuation)
- Repeat accuracy: ±0.02mm
- Air consumption: 3.5L/min (at 0.5MPa)
- Max speed: 100mm/s (recommended 50-80mm/s for precision)
- Weight: 1.2kg (including guide rails)
- Dimensions: 200mm(L) × 65mm(W) × 45mm(H)
- Mounting: 4x M4 threaded holes (depth 8mm)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
High-precision parallel gripper featuring hardened steel guide rails for smooth linear motion and minimal deflection. The dual-guide design ensures stable gripping force distribution, with anti-corrosion coating for industrial environments. Includes built-in air cushioning for shock absorption during rapid cycling.
- PCB handling in electronics assembly lines
- Precision part positioning in CNC machine tending
- Medical device component transfer systems
- Automated packaging of fragile items
- Robotic arm end-effector integration
Operation tip:
For optimal performance, use filtered air (5-50μm) with ISO VG32 lubrication.
Regular rail cleaning every 500,000 cycles recommended. Avoid side-load forces exceeding 15N.
| Property | Property Value |
|---|---|
| sku | HFSKL25N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
