Airtac HFTK Guided Parallel Type Pneumatic Gripper HFTK16F
$155.16
Regular price
$162.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFTK16F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

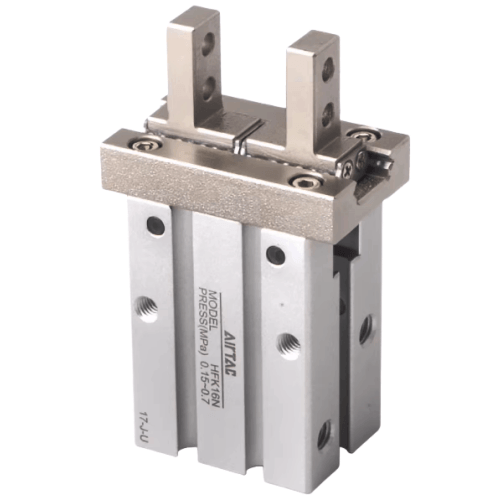

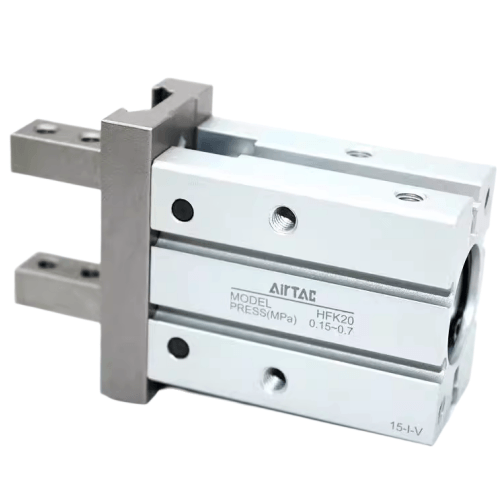

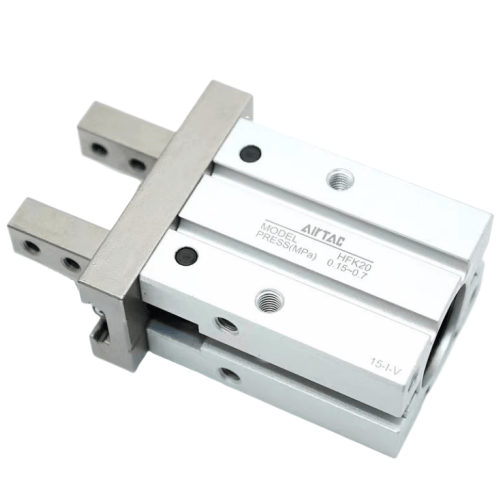

HFTK Guided Parallel Pneumatic Gripper
1、Integrated linear guide structure ensures superior rigidity and precision;
2、Bottom-mounted positioning dowel pins on linear guide prevent misalignment between guide and main body;
3、Deepened reference centering holes on main body enhance mounting accuracy and maintain consistent positioning during repeated installation/dismantling;
4、Customizable initial gripper position accommodates diverse operational requirements under various working conditions.
Category: Parallel Pneumatic Grippers , Brand: AirTAC , Series: HFTK
Operational note:
Maintain 0.5-1mm jaw overtravel during setup for optimal grip stability.
Use synchronized air pressure regulators for balanced force distribution.
Maximum lateral offset load: 10N·m. Regular rail cleaning every 500,000 cycles recommended.
1、Integrated linear guide structure ensures superior rigidity and precision;
2、Bottom-mounted positioning dowel pins on linear guide prevent misalignment between guide and main body;
3、Deepened reference centering holes on main body enhance mounting accuracy and maintain consistent positioning during repeated installation/dismantling;
4、Customizable initial gripper position accommodates diverse operational requirements under various working conditions.
Category: Parallel Pneumatic Grippers , Brand: AirTAC , Series: HFTK
AirTAC HFTK16F Guided Parallel Pneumatic Gripper Specifications
- Model: HFTK16F
- Type: Double-acting guided parallel gripper
- Bore size: Ø16mm
- Stroke per jaw: 0-6mm (adjustable)
- Operating pressure: 0.2-0.7 MPa
- Max gripping force: 140N (at 0.6MPa)
- Guide type: Dual linear ball bearing rails
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, hardened steel guides
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Port size: M5x0.8 (dual ports for push/pull action)
- Weight: 0.48kg
- Dimensions: 100mm(L) × 50mm(W) × 40mm(H)
- Mounting: 4x M4 threaded holes (depth 8mm)
- Lubrication: Pre-lubricated (Grease-free operation)
High-precision guided gripper with force-adjustable jaws and integrated linear guides, designed for ultra-stable workpiece handling. Features anti-corrosion coating and zero-backlash motion control. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 4.2.3 standards.
Typical Applications:
- CNC machine tool part loading/unloading
- Precision electronic component assembly (SMD handling)
- Pharmaceutical blister packaging systems
- Watch movement component manipulation
- Optical lens positioning in automation cells
Operational note:
Maintain 0.5-1mm jaw overtravel during setup for optimal grip stability.
Use synchronized air pressure regulators for balanced force distribution.
Maximum lateral offset load: 10N·m. Regular rail cleaning every 500,000 cycles recommended.
| Property | Property Value |
|---|---|
| sku | HFTK16F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | <6mm> |
