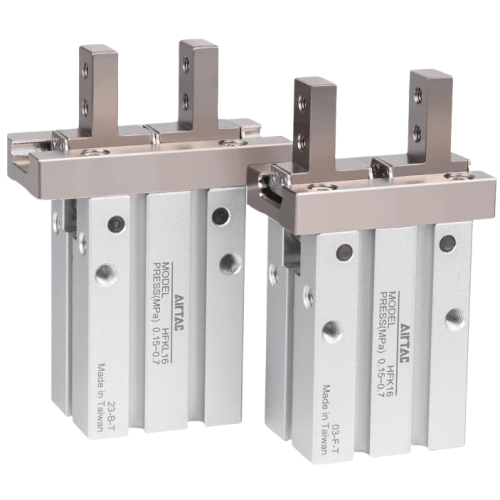

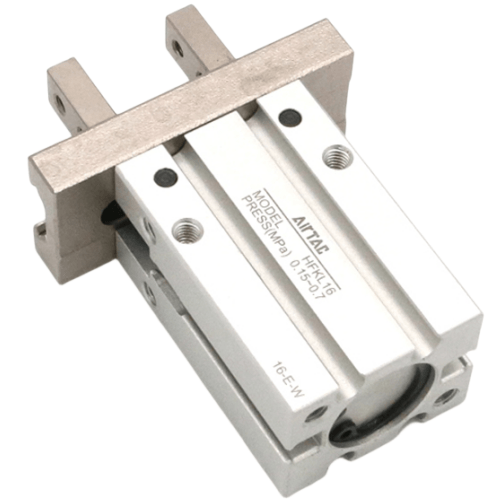

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL10
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL10 Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL10
- Type: Guided parallel gripper (dual linear guide)
- Gripping force: 10N @ 0.5MPa
- Stroke per finger: 5mm (standard), customizable 2-20mm
- Operating pressure: 0.2-0.7 MPa
- Repeat accuracy: ±0.01mm
- Guide type: Dual-axis linear guide with ball bearings
- Material: Aluminum alloy body, hardened steel guide rails
- Port size: M5x0.8 (standard), NPT1/8 optional
- Temperature range: -10℃ to 80℃
- Seal material: Heat-resistant NBR
- Weight: 350g ±5g
- Dimensions: 120mm(L) × 42mm(W) × 30mm(H)
- Mounting pattern: 30mm interaxis hole spacing
- Shock resistance: 15m/s² max
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
Precision parallel gripper featuring dual hardened linear guides for ultra-stable linear motion. The hardened steel rail system provides 3X longer service life compared to standard bushings. Integrated T-slot design allows direct mounting of tooling plates. Optimized air passage reduces response time to 0.1s at 0.5MPa.
- PCB component insertion machines
- Medical device micro-assembly lines
- Precision gearbox shaft handling
- Optical lens positioning systems
- Watch movement assembly automation
Installation note:
Apply M3x0.5 mounting screws with 0.6Nm torque maximum.
Use ISO 8573-1 class 3 compressed air with 1-3μm filtration.
Lubricate guide rails with ISO VG32 pneumatic oil monthly.
| Property | Property Value |
|---|---|
| sku | HFTKL10 |
| Gripper Optional Types | Standard Type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
