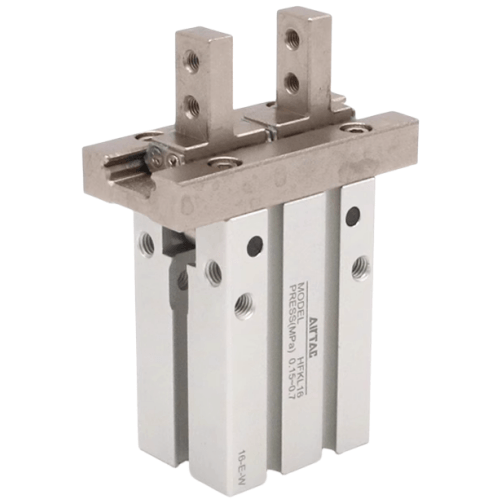

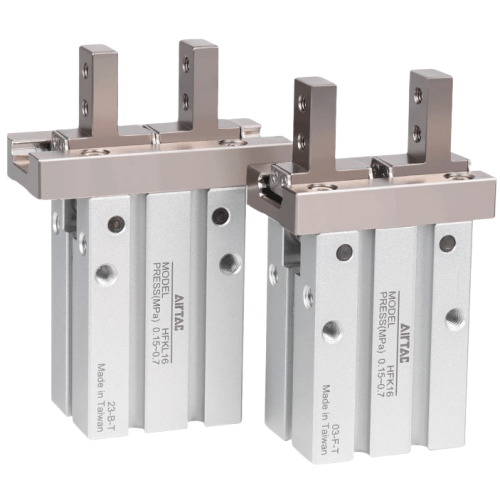

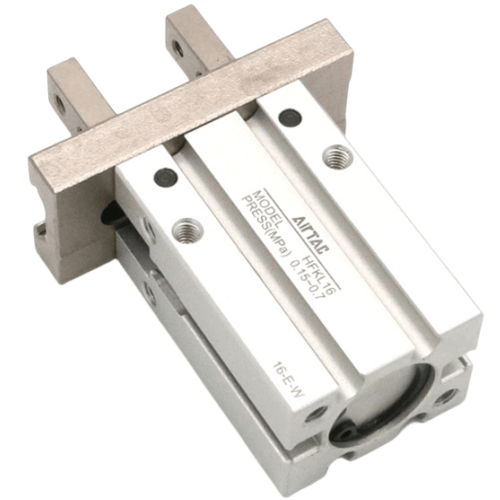

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL10B
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL10B Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL10B
- Type: Guided parallel gripper (double-acting)
- Gripping force: 32N (at 0.5MPa)
- Stroke per jaw: 5mm
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃ (non-freezing)
- Material: Aluminum alloy body, CRMo steel guide rods
- Port size: M5x0.8 (standard), NPT1/8 optional
- Mounting holes: 4x M4 threaded (8mm spacing)
- Weight: 280g ±5g
- Dimensions: 80mm(L) × 34mm(W) × 25mm(H)
- Shock resistance: 15m/s² max
- Seal type: NBR + special wear-resistant ring
Precision parallel gripper with integrated linear guides for ultra-stable workpiece handling. Features anti-vibration design and zero-backlash movement, optimized for high-speed automated operations. Includes adjustable stoppers for stroke limitation and grease fittings for maintenance.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Micro-motor assembly systems
- Optical lens positioning devices
- 3C product testing equipment
Installation notes:1. Apply ISO VG32 hydraulic oil to guide rails during initial setup
2. Ensure guide rail alignment within 0.1mm parallelism tolerance
3. Use clean dry air with 5-50μm filtration
4. Maximum side load: 15N (perpendicular to gripping direction)
| Property | Property Value |
|---|---|
| sku | HFTKL10B |
| Gripper Optional Types | Side-mounted |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
