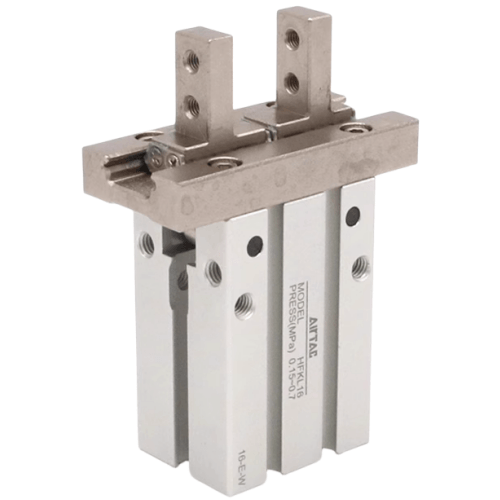

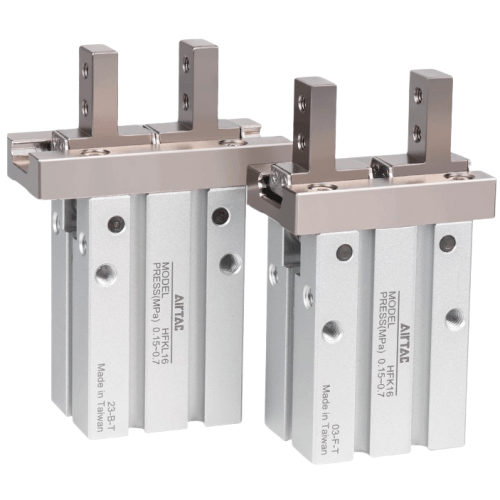

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL10N
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL10N Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL10N
- Type: Guided parallel gripper (dual linear guide structure)
- Gripping force: 12N @ 0.5MPa
- Stroke options: 5mm/10mm/15mm (standard)
- Operating pressure: 0.1–0.7 MPa
- Port size: M5x0.8 (1/8" NPT optional)
- Repeat accuracy: ±0.02mm
- Guide type: Dual linear ball bearing slides
- Material: Aluminum alloy body with hard anodized surface
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 70℃
- Weight: 0.25kg (without accessories)
- Dimensions: 90mm(L) × 42mm(W) × 32mm(H)
- Max operating speed: 100mm/s
- Mounting pattern: 2x M4 threaded holes (6mm depth)
Precision parallel gripper featuring dual linear guides for smooth parallel motion and zero rotational deviation during operation. The hardened steel guide rails and preloaded ball bearings ensure long-term durability (>5 million cycles). Includes adjustable stoppers for fine-tuning grip positions. Compatible with vacuum pads or custom tooling attachments via M3 mounting threads on jaw faces.
- PCB component insertion machines
- Micro-motor shaft assembly systems
- Pharmaceutical blister packaging
- Optical lens handling in cleanrooms
- 3C product testing equipment
Installation tip:
Apply thin silicone grease (ISO VG10-32) to guide rails monthly.
Use shim washers when mounting to compensate for surface unevenness (>0.1mm).
Maximum side load capacity: 15N perpendicular to guide axis.
| Property | Property Value |
|---|---|
| sku | HFTKL10N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
