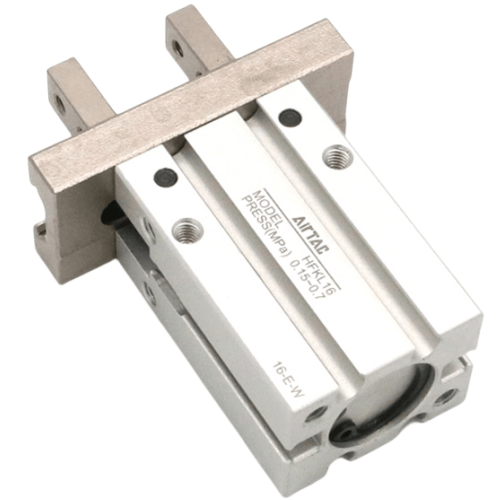

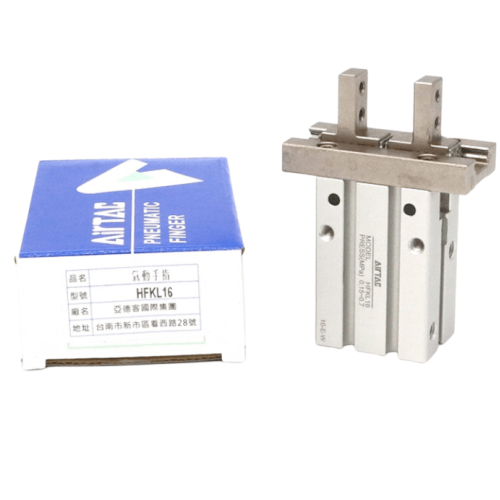

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL16
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL16 Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL16
- Type: Guided parallel gripper (dual-acting)
- Gripping force: 16N at 0.5MPa
- Stroke options: 10mm / 20mm / 30mm
- Operating pressure: 0.05–0.7 MPa
- Port size: M5x0.8 (dual ports per cylinder)
- Repeat accuracy: ±0.05mm
- Operating temperature: -10℃ to 60℃
- Seal material: NBR (nitrile rubber)
- Guide mechanism: Dual linear ball bearings
- Mounting pattern: 4x M4 threaded holes (8mm spacing)
- Weight: 0.25kg (without accessories)
- Dimensions: 78mm(L) × 38mm(W) × 34mm(H)
- Surface treatment: Anodized aluminum body
- Guide rail material: Stainless steel
- Max gripping speed: 200mm/s
- Compatible jaws: Standard ISO 9400-1 mounting interface
A precision guided gripper with anti-rotation design, featuring hardened steel rails and preloaded ball bearings for smooth linear motion. The dual piston design ensures parallel jaw movement with minimal angular deviation (±0.1°). Includes built-in T-slot for modular tooling attachment and optional magnetic sensor slots.
- PCB handling in electronics assembly lines
- Precision part insertion in automotive manufacturing
- Medical device component manipulation
- Small parts sorting systems with guided alignment
- Collaborative robot (cobot) end effectors
Installation tip:
Apply lithium-based grease to guide rails every 500,000 cycles.
Use precision shims when mounting to compensate for any surface irregularities.
Maintain 0.3-0.5MPa air pressure for optimal grip force balance.
| Property | Property Value |
|---|---|
| sku | HFTKL16 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
