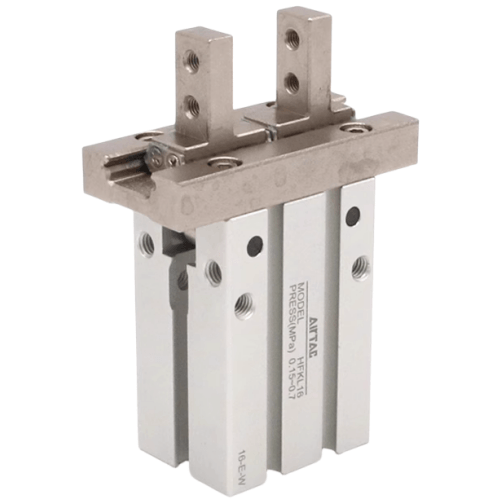

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL16F
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL16F Rail-Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL16F
- Type: Rail-guided parallel gripper (double-acting)
- Gripping force: Up to 48N (adjustable via pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 0-8mm (standard), customizable up to 15mm
- Guide rail type: Linear guide with 4-row ball bearing structure
- Repeat precision: ±0.02mm
- Operating temperature: -10℃ to 80℃
- Material: Aluminum alloy body, hardened steel guide rails
- Port size: M5x0.8 (dual ports for simultaneous actuation)
- Mounting holes: 4x M4 threaded (8mm spacing)
- Weight: 320g ±5g
- Dimensions: 76mm(L) × 34mm(W) × 42mm(H)
- Seal material: NBR rubber with wear-resistant coating
- Shock resistance: 15m/s² max
- Protection rating: IP54 (standard), IP67 optional
Precision parallel gripper featuring integrated linear guides for minimal deflection during high-speed operations. The dual-cylinder design ensures synchronized jaw movement with anti-rotation stability. Optimized for high-cycle applications requiring micron-level repeatability, with optional magnetic sensors for position feedback.
- PCB component insertion machines
- Automated pharmaceutical blister packaging
- Precision bearing assembly systems
- CNC machine tool loading/unloading
- Micro-motor rotor handling
- Optical lens positioning systems
Installation tip:
Apply lithium-based grease to guide rails every 50,000 cycles.
Use thread-locking compound on mounting screws to maintain
parallelism tolerance under vibration. Maximum side load
capacity: 15N per jaw.
| Property | Property Value |
|---|---|
| sku | HFTKL16F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
