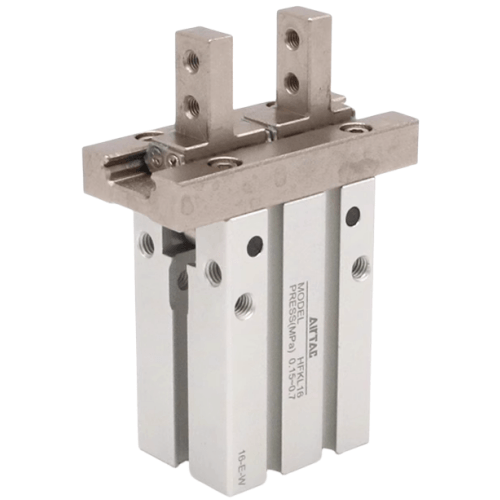

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL20B
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL20B Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL20B
- Type: Guided parallel gripper (double-acting)
- Gripping force: 36-147N (adjustable via pressure)
- Stroke per finger: 0-20mm
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Linear ball bearing system
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, hardened steel guide rails
- Temperature range: -10℃ to 80℃
- Port size: M5 (standard) with NPT1/8 adaptor optional
- Weight: 680g ±2%
- Dimensions: 120mm(L) × 42mm(W) × 34mm(H)
- Mounting pattern: 32mm × 28mm (ISO 9409-1 compatible)
- Max sliding speed: 500mm/s
- Lubrication: Pre-lubricated (maintenance-free for 5,000km travel)
Precision parallel gripper with integrated linear guides for ultra-stable part handling. Features dual piston drive mechanism with anti-rotation design, ensuring parallel movement even under asymmetric loads. The hardened steel guide rails provide 2 million cycle durability. Optional magnetic sensor slots (M5×0.8 threaded) for position feedback integration.
- High-speed PCB component insertion machines
- Robotic assembly of precision gears
- Medical device manufacturing automation
- Battery cell handling in EV production lines
- Optical lens positioning systems
Installation note:
For maximum accuracy, mount on ISO 9409-1 compliant flange using 4×M4 screws (not included).
Use shock absorbers when operating at full stroke with heavy loads. Alignment tolerance ≤0.05mm/m.
| Property | Property Value |
|---|---|
| sku | HFTKL20B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
