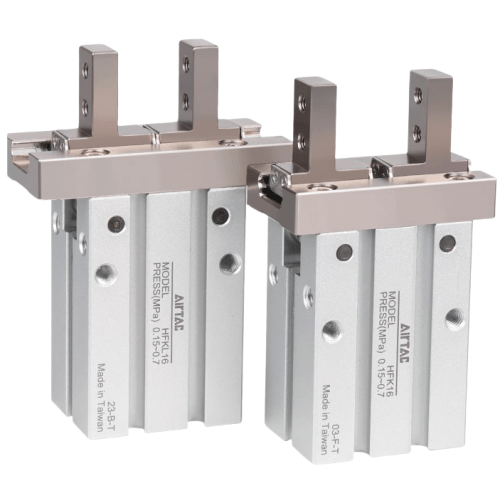

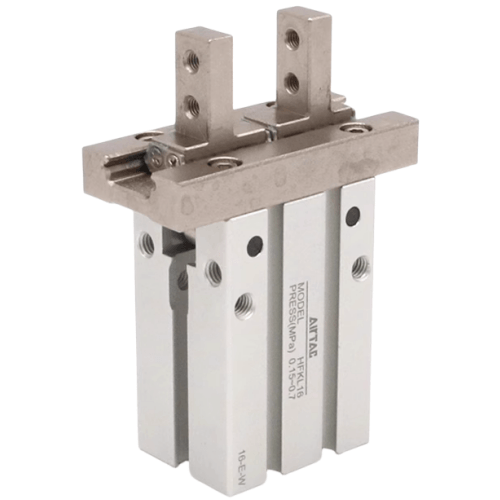

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL25
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL25 Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL25
- Type: Double-acting guided parallel gripper
- Gripping force: 60-160N (adjustable via pressure)
- Stroke per jaw: 0-20mm
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Port size: M5 (1/8")
- Body material: Aluminum alloy (hard anodized surface)
- Jaw material: Steel with nickel plating
- Temperature range: -10℃ to 80℃
- Protection rating: IP54
- Weight: 0.85kg (excluding jaws)
- Dimensions: 120mm(L) × 60mm(W) × 45mm(H)
- Mounting pattern: 4×M4 threaded holes (8mm spacing)
- Air consumption: 15.7cm³/stroke (at 0.5MPa)
Precision-engineered parallel gripper with integrated linear guides, delivering exceptional stability during high-speed cyclic operations. Features zero-backlash motion through preloaded ball bearings and anti-vibration design. Compatible with vacuum cups/magnetic tools via T-slot jaw mounting. Requires 5-40μm filtered air with ISO VG32 hydraulic oil mist lubrication (optional).
- High-speed pick-and-place in SMT component handling
- Precision part positioning for CNC machine tending
- Electronics assembly with ESD-safe variants available
- Carton flap control in packaging lines
- Semiconductor wafer transfer systems
Maintenance note:
Relubricate guide rails every 500,000 cycles using lithium soap grease.
For vertical mounting, install air exhaust mufflers downward to prevent debris accumulation.
- Use tandem cylinders for synchronized multi-gripper operations
- Install magnetic sensors in slot B (6mm proximity switch)
- Max lateral load: 20N (at full extension)
- Allow 5mm clearance for jaw replacement
| Property | Property Value |
|---|---|
| sku | HFTKL25 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
