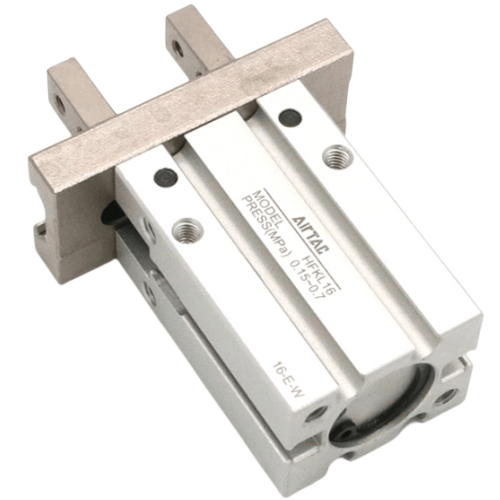

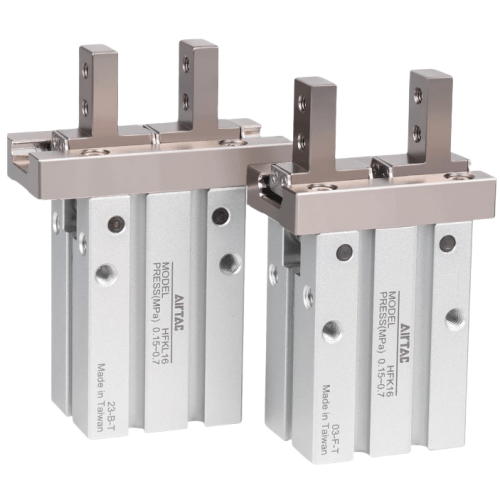

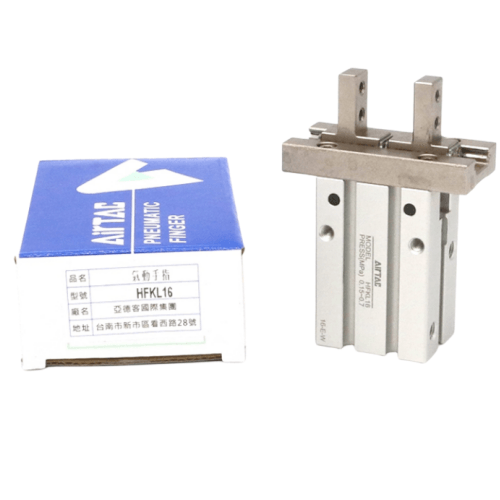

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL25F
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL25F Guided Parallel Pneumatic Gripper Technical Details
- Model: HFTKL25F (Guided Parallel Type)
- Gripping force: 30-150N (adjustable via air pressure)
- Stroke per jaw: 0-25mm
- Operating pressure: 0.2-0.7 MPa
- Guide mechanism: Dual linear ball bearing slides
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, hardened steel guide rails
- Temperature range: -10℃ to 80℃
- Port size: M5x0.8 (standard), G1/8 optional
- IP rating: IP54 (dust protected & splash resistant)
- Voltage options: 24V DC (solenoid valve version), AC variants available
- Weight: 1.8kg ±3% (including guide rails)
- Dimensions: 150mm(L) × 65mm(W) × 42mm(H)
- Seal material: Heat-resistant NBR rubber
- Max gripping speed: 100mm/s
- Lubrication: Pre-lubricated (maintenance-free for 5,000km travel)
The HFTKL25F features dual-axis hardened steel guide rails with preloaded ball bearings, delivering exceptional rigidity for precision gripping tasks. Its symmetrical parallel movement mechanism ensures zero angular deviation during operation, making it ideal for delicate part handling. The anti-vibration design minimizes chatter during high-speed cycles.
- PCB component insertion machines
- Automotive fuel injector assembly lines
- Pharmaceutical blister packaging systems
- Robotic bin-picking stations
- Optical lens polishing automation
- Battery cell stacking systems
Installation tip:
Mount using M4 screws on the 25mm spaced threaded holes. For precision applications,
perform stroke calibration using the built-in adjustable mechanical stoppers.
Maintain 0.5-1mm jaw clearance when fully open to prevent overstroke wear.
| Property | Property Value |
|---|---|
| sku | HFTKL25F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
