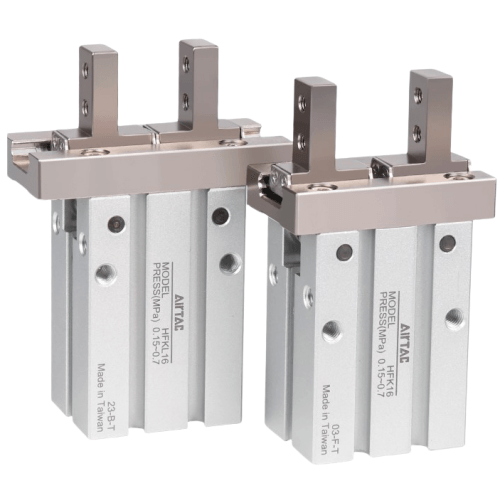

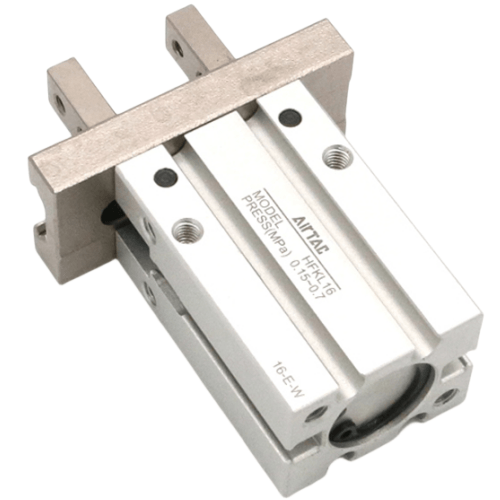

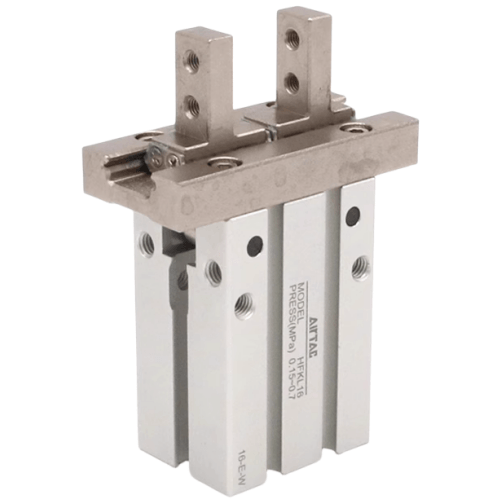

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL25N
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL25N Rail-Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL25N
- Type: Double-acting rail-guided parallel gripper
- Gripping force: 30-50N (adjustable via pressure)
- Stroke per jaw: 0-12mm (max. opening 24mm)
- Operating pressure: 0.1-0.7 MPa
- Guide mechanism: Dual linear ball bearing rails
- Repeat accuracy: ±0.02mm
- Compatible cylinders: 20-32mm bore sizes
- Seal material: Heat-resistant NBR + reinforced PTFE
- Temperature range: -10℃ to 80℃
- Port size: M5x0.8 (dual ports for bidirectional control)
- Weight: 480g ±2% (excluding accessories)
- Dimensions: 94mm(L) × 42mm(W) × 36mm(H)
- Shock resistance: 15G acceleration (IEC60068-2-27)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Mounting: 4x M4 threaded holes (depth 6mm)
Precision rail-guided gripper featuring dual hardened steel linear guides with preloaded ball bearings, delivering exceptional lateral stiffness for high-speed operations. The anti-deflection design maintains parallel jaw alignment within 0.05mm even under maximum load. Integrated T-slot mounting groove allows tooling plate attachment without disassembly.
- PCB component insertion machines
- Medical device assembly lines
- Optical lens positioning systems
- Precision gearbox part handling
- Battery cell stacking automation
- Watch movement assembly stations
Operational note:
Maintain 0.05-0.1mm clearance between jaws and workpiece during initial setup.
Lubricate rails every 500,000 cycles using ISO VG32 hydraulic oil. Avoid side-load
exceeding 15N to prevent bearing raceway deformation.
| Property | Property Value |
|---|---|
| sku | HFTKL25N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
